PRO H610M-S DDR5
Original price was: ₹7,899.00.₹6,089.00Current price is: ₹6,089.00.
- 💰 Budget motherboard with DDR5 support (main advantage)
- 🧠 Supports latest Intel CPUs (up to 14th Gen)
- ⚡ PCIe 4.0 GPU slot
- ❌ No WiFi / Bluetooth
- ❌ Only 2 RAM slots
- ❌ No overclocking support
- 🧊 Basic VRM → not for high-end CPUs
Out of stock
PRO H610M-S DDR5
PRO H610M-S DDR5

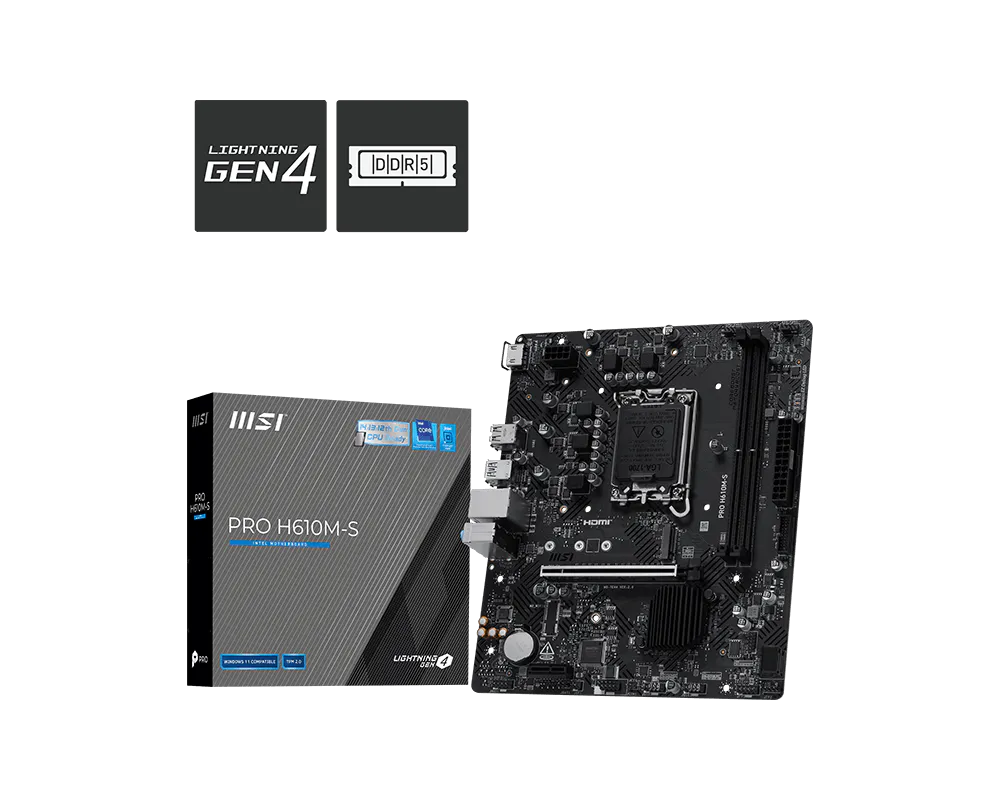

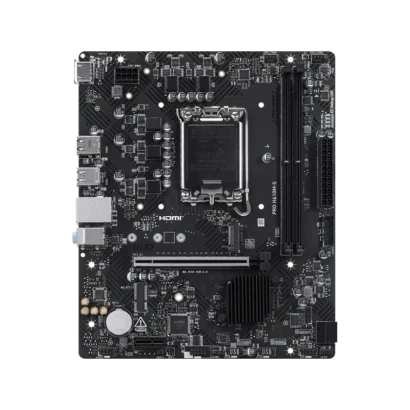

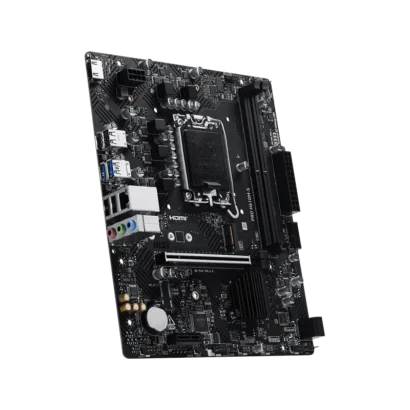

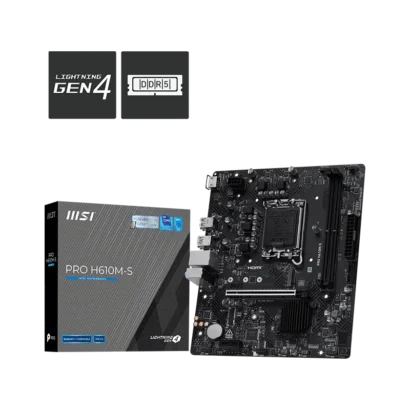

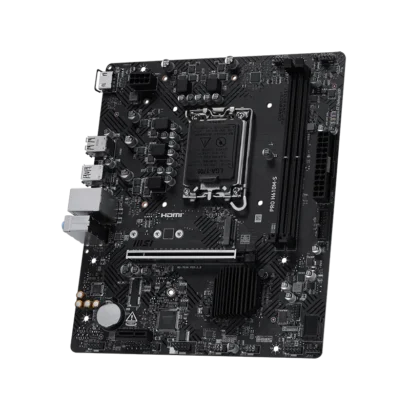

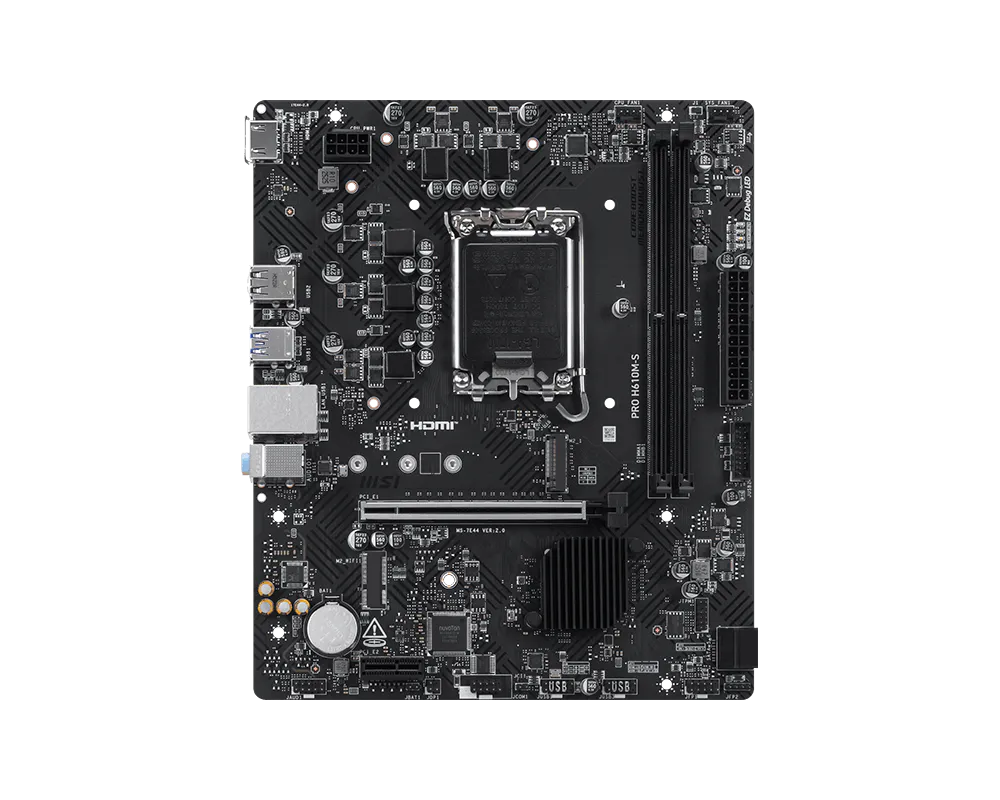

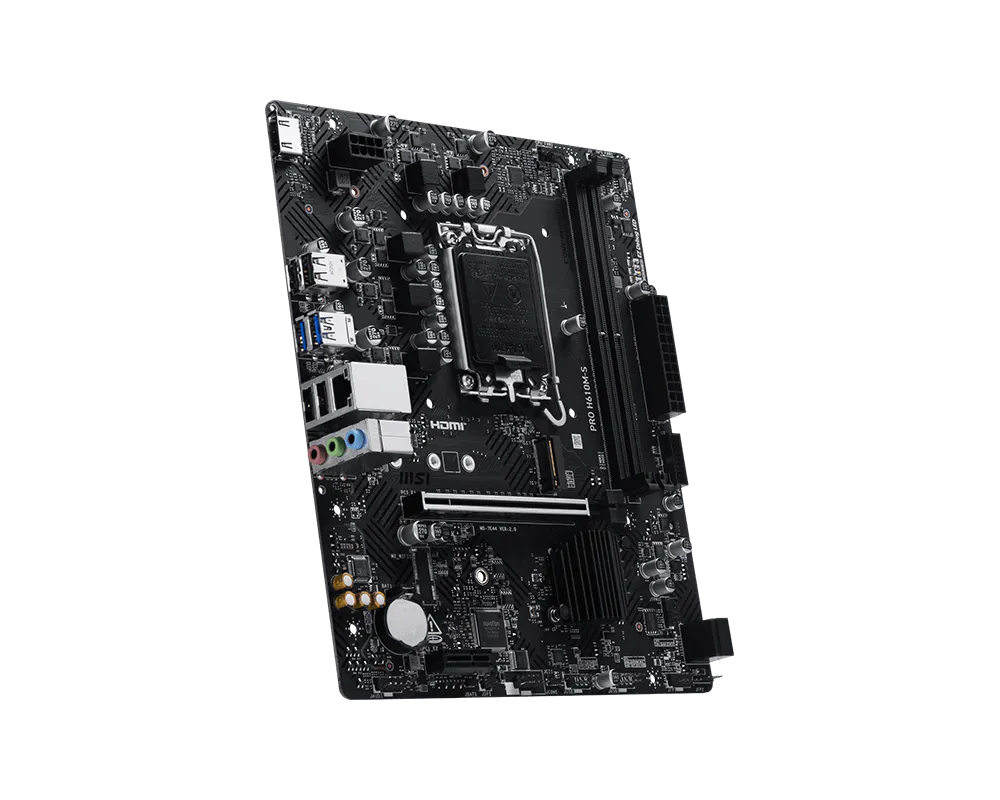

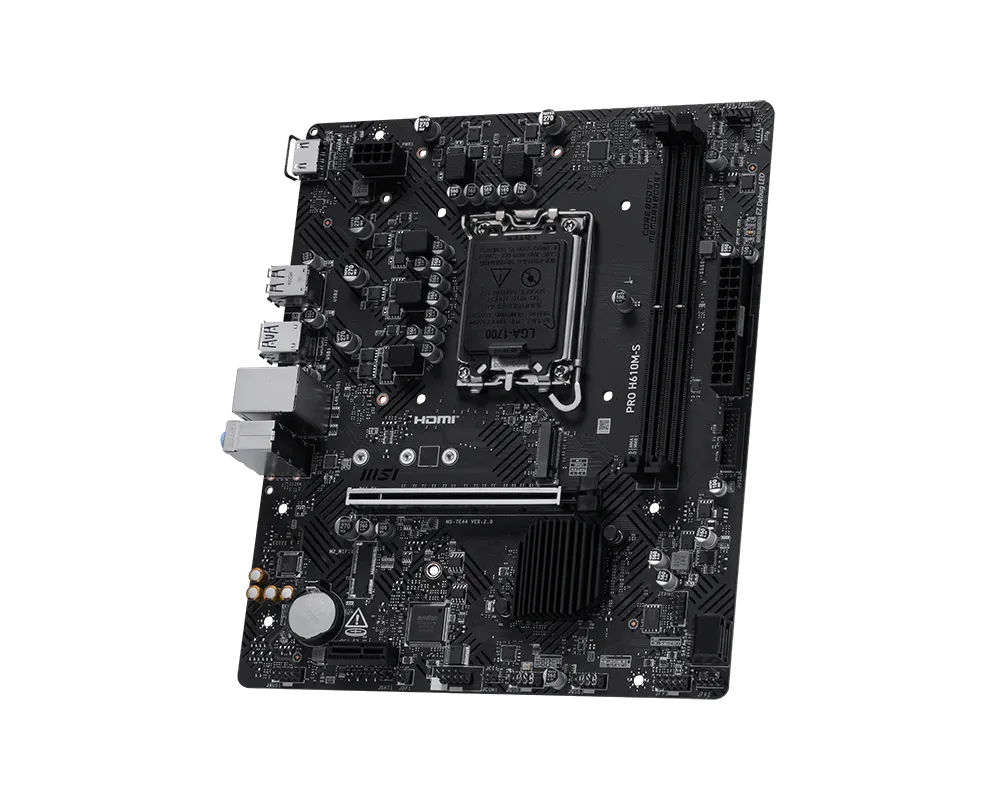

The MSI PRO H610M-S DDR5 is a budget Micro-ATX motherboard built for Intel’s LGA1700 platform, supporting 12th, 13th, and 14th Gen processors. It is designed for users who want next-gen DDR5 memory support at a low cost, making it a solid choice for entry-level gaming and productivity builds.
Powered by the Intel H610 chipset, it focuses on basic functionality, stability, and affordability, while giving you access to newer DDR5 technology.
Key Features
⚙️ CPU & Platform Support
- Socket: LGA1700
- Supports Intel Core (12th / 13th / 14th Gen), Pentium Gold, Celeron
- ❌ No CPU overclocking (H610 limitation)
🧠 Memory (Main Highlight – DDR5)
- 2× DDR5 RAM slots
- Up to 128GB capacity
- Supports speeds up to 5600 MT/s (JEDEC/XMP depending on CPU)
👉 Biggest upgrade over DDR4 version = future-ready RAM
🎮 Expansion & GPU Support
- 1× PCIe 4.0 x16 slot (for GPU)
- 1× PCIe 3.0 x1 slot
- Steel Armor protection for GPU slot
💾 Storage Options
- 1× M.2 NVMe (PCIe Gen3)
- SATA ports for HDD/SSD
SPECIFICATIONS
| Chipset | INTEL H610 |
|---|---|
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 5600 MT/s (by JEDEC & POR) Supports Intel® POR Speed and JEDEC Speed Supports Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G |
