QNAP TL-R1620Sep-RP 3U 16-Bay 2.5″/3.5″ SAS JBOD Expansion Enclosure (LSI)
Original price was: ₹399,999.00.₹362,899.00Current price is: ₹362,899.00.
- 16-bay enterprise SAS JBOD for flexible, high-capacity storage expansion.
- 12Gb/s SAS connectivity delivers high-speed, low-latency data transfers.
- Supports both SAS and SATA drives in 2.5-inch and 3.5-inch form factors.
- Redundant hot-swappable power supplies ensure maximum uptime and reliability.
- Ideal for enterprise backup, virtualization, media production, surveillance, and large-scale storage deployments
Available on backorder
QNAP TL-R1620Sep-RP 3U 16-Bay 2.5″/3.5″ SAS JBOD Expansion Enclosure (LSI)

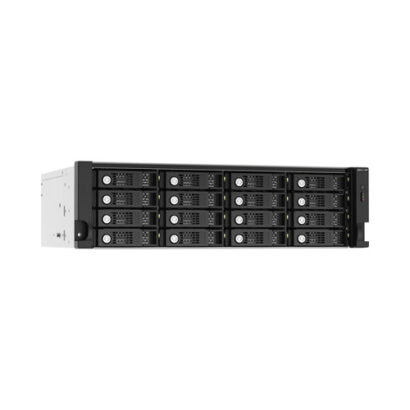

The QNAP TL-R1620Sep-RP is a 3U rackmount 16-bay SAS JBOD expansion enclosure designed to provide scalable, high-performance storage expansion for enterprise NAS and server environments. Supporting both 2.5-inch and 3.5-inch SAS/SATA HDDs and SSDs, it features 12Gb/s SAS connectivity through four Mini-SAS HD ports for fast and reliable data transfer. Equipped with redundant 550W hot-swappable power supplies, hot-swappable drive bays, and enterprise-grade cooling, the TL-R1620Sep-RP is an ideal solution for backup, archiving, virtualization, surveillance, and large-scale data storage applications.
Key Features
- 16 hot-swappable drive bays supporting 2.5″ and 3.5″ SAS/SATA HDDs and SSDs
- 12Gb/s SAS 3.0 host connectivity via 4 × Mini-SAS HD (SFF-8644) wide ports
- 3U short-depth rackmount design for space-efficient deployment
- Dual redundant 550W hot-swappable power supplies for maximum system availability
- Enterprise-class cooling with multiple high-performance fans
- Seamless storage expansion for compatible QNAP NAS and enterprise servers
- Supports high-capacity storage for backup, virtualization, surveillance, and archival workloads
Specifications
| Specification | Details |
|---|---|
| Model | QNAP TL-R1620Sep-RP |
| Form Factor | 3U Short-Depth Rackmount |
| Drive Bays | 16 × 2.5″/3.5″ SAS/SATA HDD/SSD |
| Host Interface | 4 × 12Gb/s SAS 3.0 Mini-SAS HD (SFF-8644) |
| Drive Support | 3.5″ SAS 12Gb/s & 6Gb/s HDDs, 3.5″ SATA 6Gb/s & 3Gb/s HDDs, 2.5″ SATA SSDs |
| Hot-Swap Support | Yes |
| Power Supply | 2 × 550W Redundant Hot-Swappable PSUs |
| Dimensions (H × W × D) | 131.3 × 482.2 × 425.3 mm |
| Operating Temperature | 0°C to 40°C |
| Typical Power Consumption | 207.13W (Fully Populated) |
| Warranty | 5 Years |
