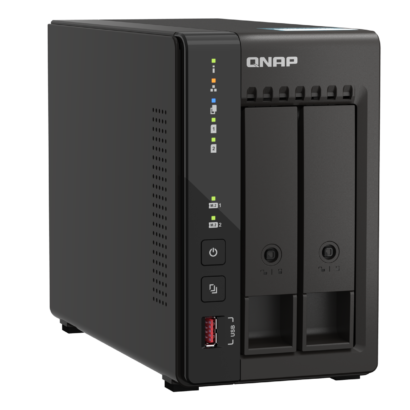

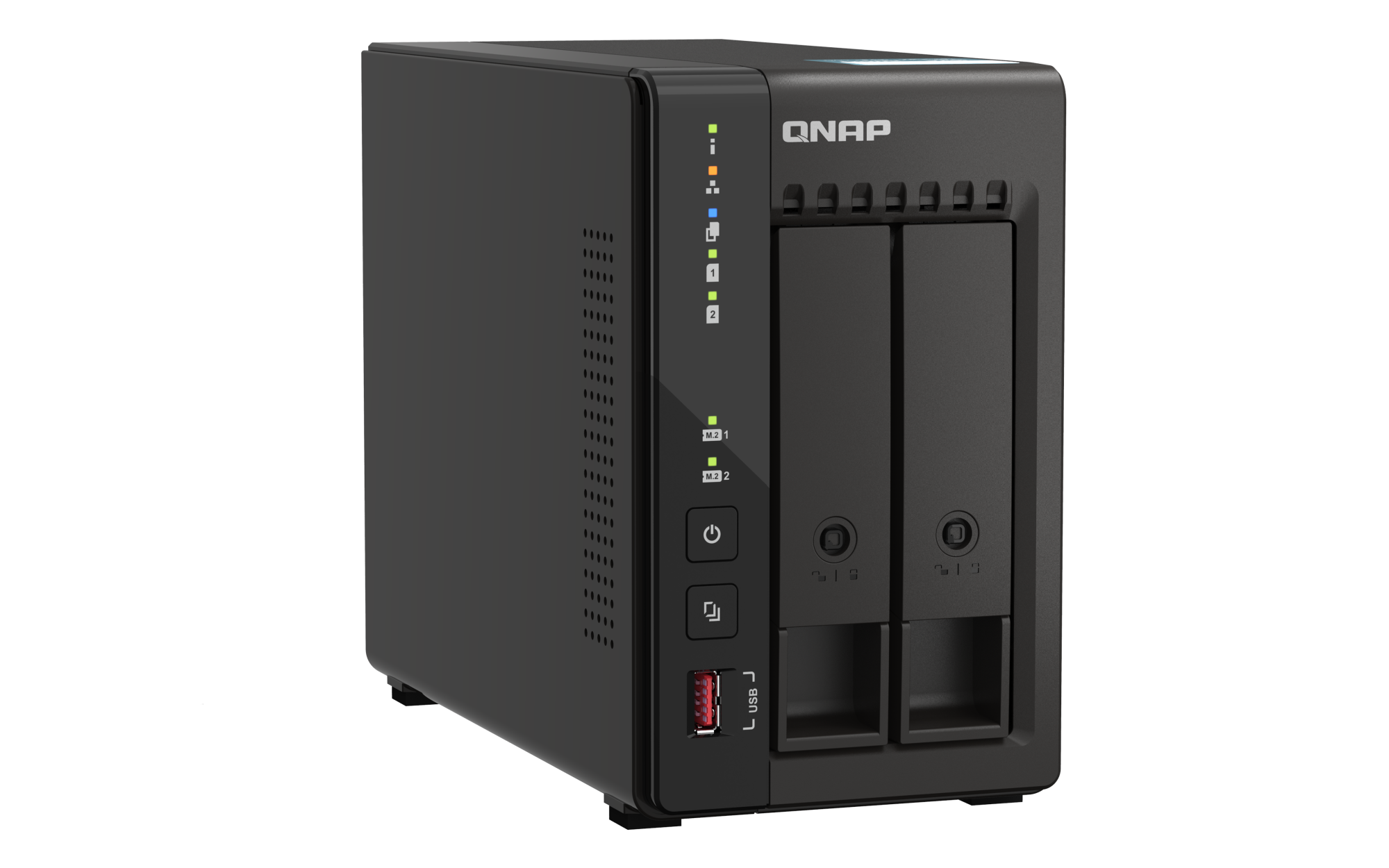

QNAP TS-253E-8G 2 Bays Nas Box
Original price was: ₹117,999.00.₹69,999.00Current price is: ₹69,999.00.
The TS-253E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-253E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.
QNAP TS-253E-8G 2 Bays Nas Box
Features
- Processor & Graphics: Intel Celeron J6412 quad-core CPU with Intel UHD Graphics and hardware transcoding support.
- Memory: 8 GB DDR4 RAM, expandable up to 16 GB with dual slots.
- Storage: 2 drive bays with 2 NVMe M.2 slots for fast SSD caching.
- Networking: Dual 2.5GbE ports for high-speed connectivity.
- Multimedia: Dual HDMI outputs (up to 4K @ 30Hz) for media or display use.
- Compact & Efficient: Small tower design with low power consumption and quiet cooling..
Specifications
| CPU | Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | YES |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | YES |
| System Memory | 8 GB SODIMM DDR4
Since 2024/01
|
| Maximum Memory | 16 GB (2 x 8GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 2 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |

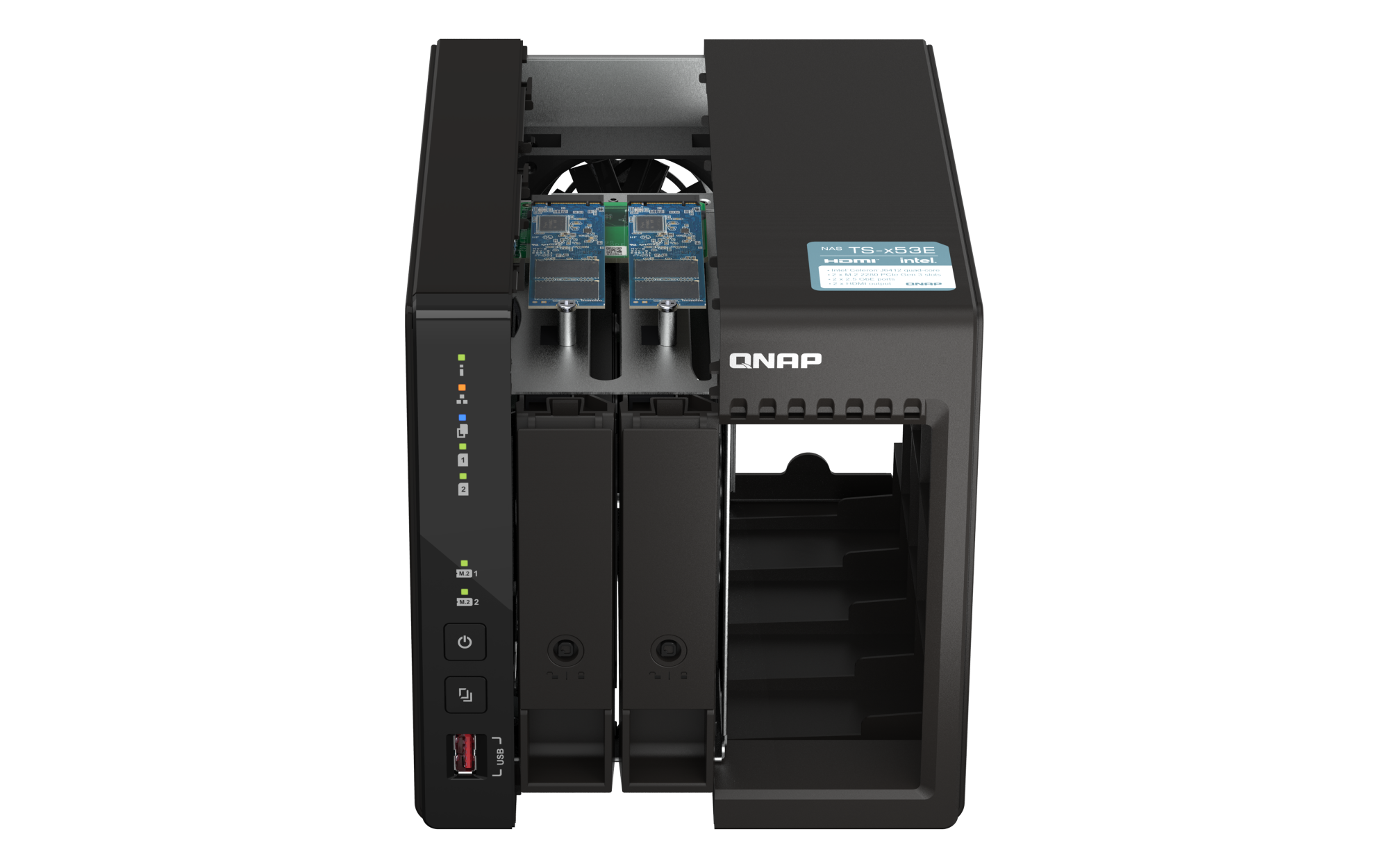

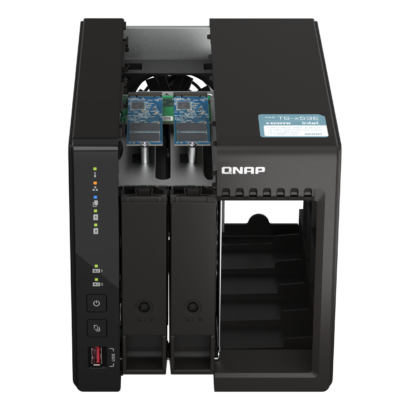

| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x2
Compatible with NVMe SSD PCIe Gen 3 and above.
|
| SSD Cache Acceleration Support | YES |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| Wake on LAN (WOL) | YES |
| Jumbo Frame | YES |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| HDMI™ Output | 2 x HDMI™ 1.4b ( up to 3840 x 2160 @ 30Hz ) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 165 × 102 × 220.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 2.57 kg |
| Weight (Gross) | 2.57 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 60W/65W adapter, 100-240V |
| Power Consumption: Disk Standby Mode | 20.943 W |
| Power Consumption: Operating Mode, Typical | 24.238 W |
| Fan | 1 x 70mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | YES |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 1500 |
