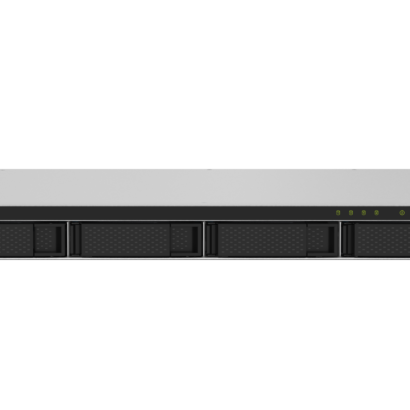

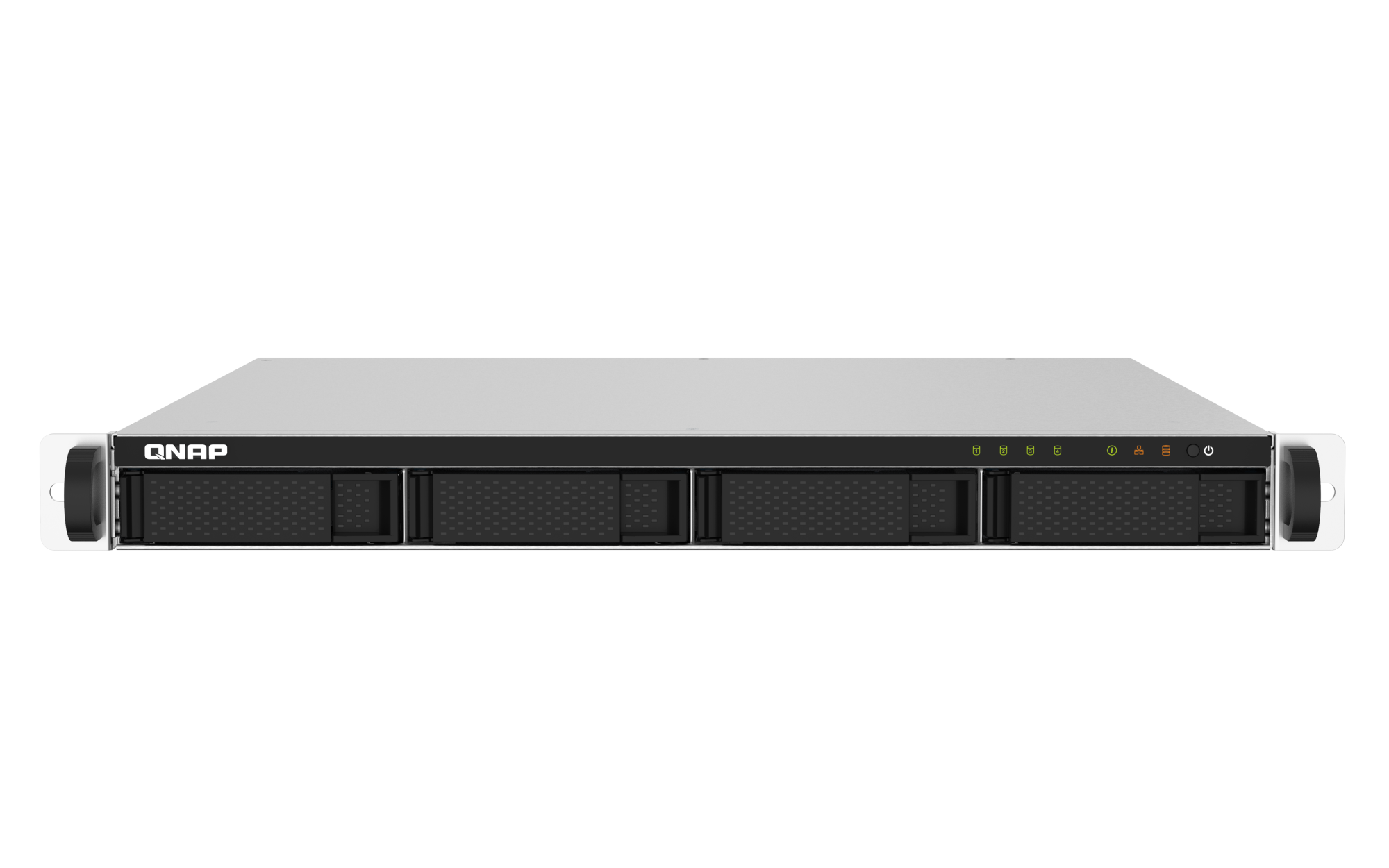

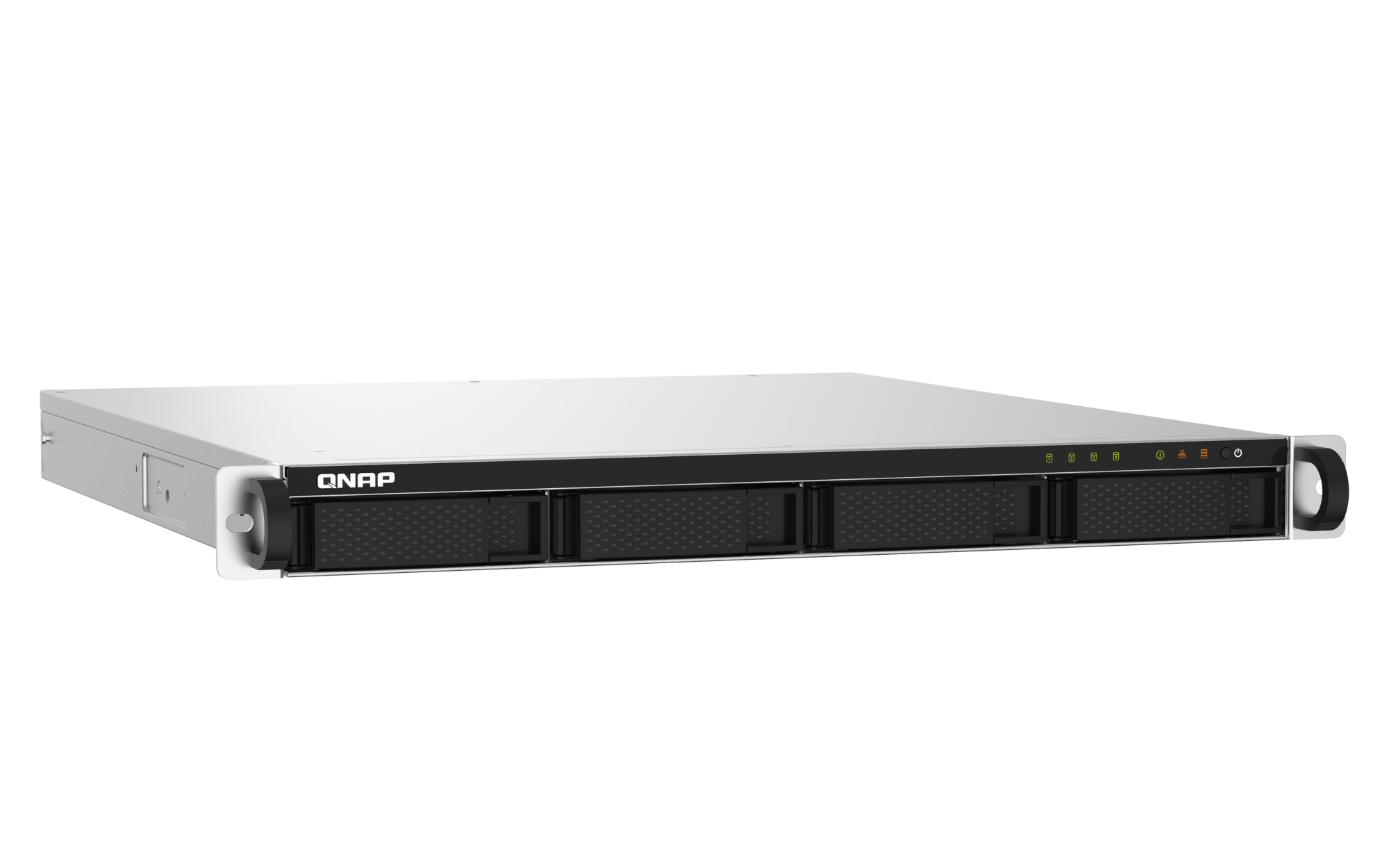

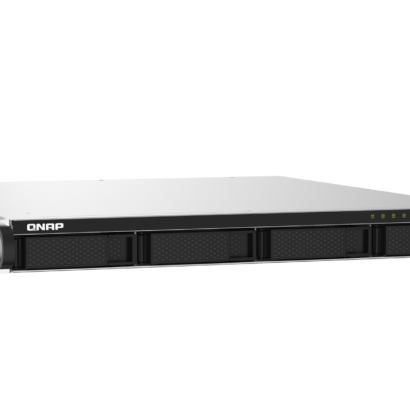

QNAP TS-432PXU-RP-2G 4 Bays Nas Rackmount
Original price was: ₹235,999.00.₹165,999.00Current price is: ₹165,999.00.
This efficient 1U rackmount NAS is powered by an AnnapurnaLabs Alpine AL324 ARM Cortex-A57 quad-core processor, offering reliable performance for small business storage and backup tasks. It supports up to 16GB RAM, includes dual 10GbE SFP+ ports, and provides flexible 4-bay storage for HDDs and SSDs. With low power consumption, redundant power supply support, and strong network connectivity, it is ideal for compact and energy-efficient enterprise storage environments.
Available on backorder
QNAP TS-432PXU-RP-2G 4 Bays Nas Rackmount
Features
- ARM Cortex-A57 processor (4 cores, basic performance)
- 2GB RAM (upgradeable up to 16GB)
- Low power embedded system design
- Strong data protection (dual boot flash memory)
- 4 drive bays for storage (HDD/SSD support)
- Hot-swappable drives (easy replacement)
- Supports SSD caching (faster performance option)
- 2 × 2.5Gb LAN ports (good network speed)
- 2 × 10Gb SFP+ ports (very fast transfer links)
- USB 3.2 ports for external devices
- 1 PCIe slot for expansion
- Rackmount 1U compact server design
Specifications
| CPU | AnnapurnaLabs Alpine AL324 64-bit ARM® Cortex-A57 4-core 1.7GHz processor |
| CPU Architecture | 64-bit ARM |
| Floating Point Unit | YES |
| Encryption Engine | YES |
| System Memory | 2 GB UDIMM DDR4 |
| Maximum Memory | 16 GB (1 x 16 GB) |
| Memory Slot | 1 x UDIMM DDR4 |
| Flash Memory | 512 MB (Dual boot OS protection) |
| Drive Bay | 4 x 3.5″ SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | YES |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ |
| Wake on LAN (WOL) |
Only the 2.5GbE port
|
| Jumbo Frame | YES |
| PCIe Slot | 1 Slot 1: PCIe Gen 2 x2 PCIe bandwidth limitations will restrict the NAS 10GbE performance.
Card dimensions for PCIe slot：210 x 68.9x 18.76 mm / 8.27 x 2.71 x 0.74 inches. |
| USB 3.2 Gen 1 port | 4 |
| Form Factor | 1U Rackmount |
| LED Indicators | HDD 1-4, Status, LAN, Storage expansion |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 43.3 × 430 × 479 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
|
| Weight (Net) | 9.08 kg |
| Weight (Gross) | 11.03 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W (x2) PSU, 100 – 240V |
| Power Consumption: Operating Mode, Typical | 53.343 W
Tested with drives fully populated.
|
| Fan | 2 x 40mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 700 |
