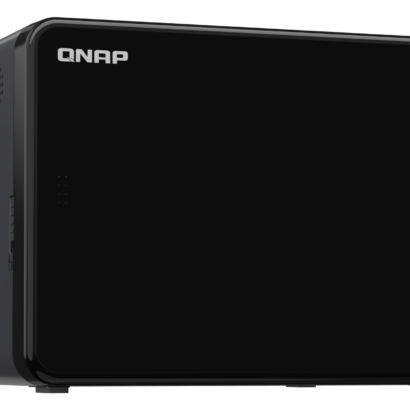

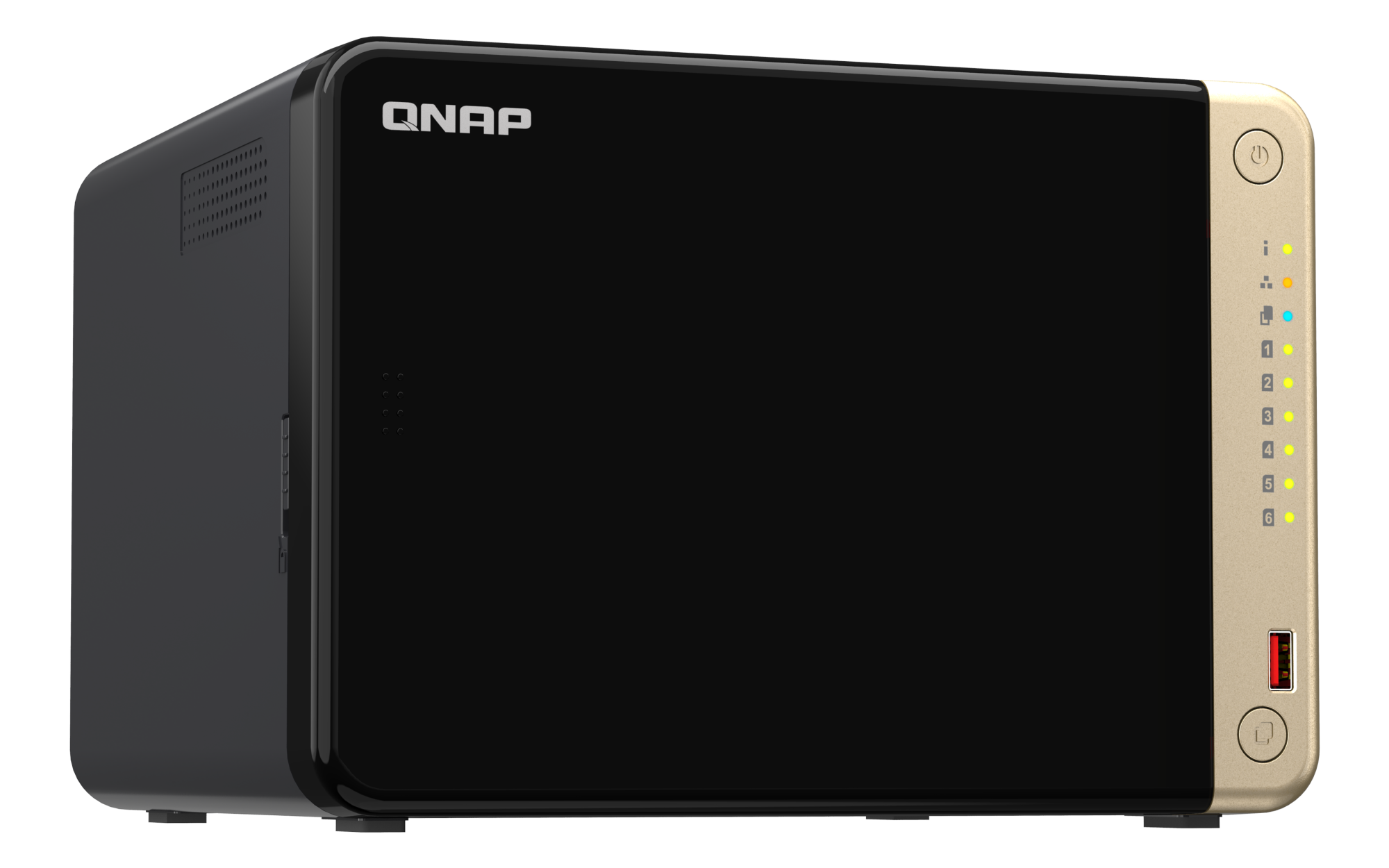

QNAP TS-664-8G 6 Bays Nas Box
Original price was: ₹156,999.00.₹89,999.00Current price is: ₹89,999.00.
TS-664 is a compact 6-bay NAS with superior performance. Supporting up to 120 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-664 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.
QNAP TS-664-8G 6 Bays Nas Box
Features
- Processor & Graphics: Intel Celeron N5095 quad-core CPU with Intel UHD Graphics and hardware transcoding support.
- Memory: 8 GB DDR4 RAM, expandable up to 16 GB with dual slots.
- Storage: 6 drive bays plus 2 M.2 SSD slots for caching and improved performance.
- Networking: Dual 2.5GbE ports with optional upgrade to 5GbE or 10GbE via PCIe.
- Multimedia: HDMI 2.1 output supporting 4K @ 60Hz for direct display and media use.
- Cooling & Power: Dual fans, 120W power supply, and efficient power consumption for stable operation.
Specifications
| CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | YES |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | YES |
| System Memory | 8 GB SODIMM DDR4
Since 2024/01
|
| Maximum Memory | 16 GB (2 x 8GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |

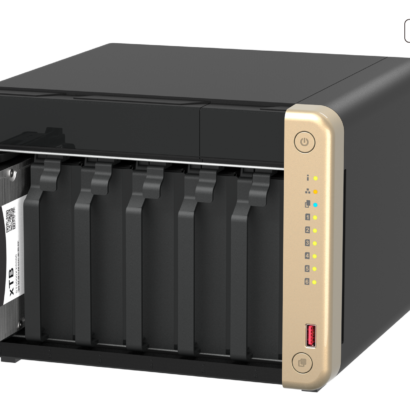

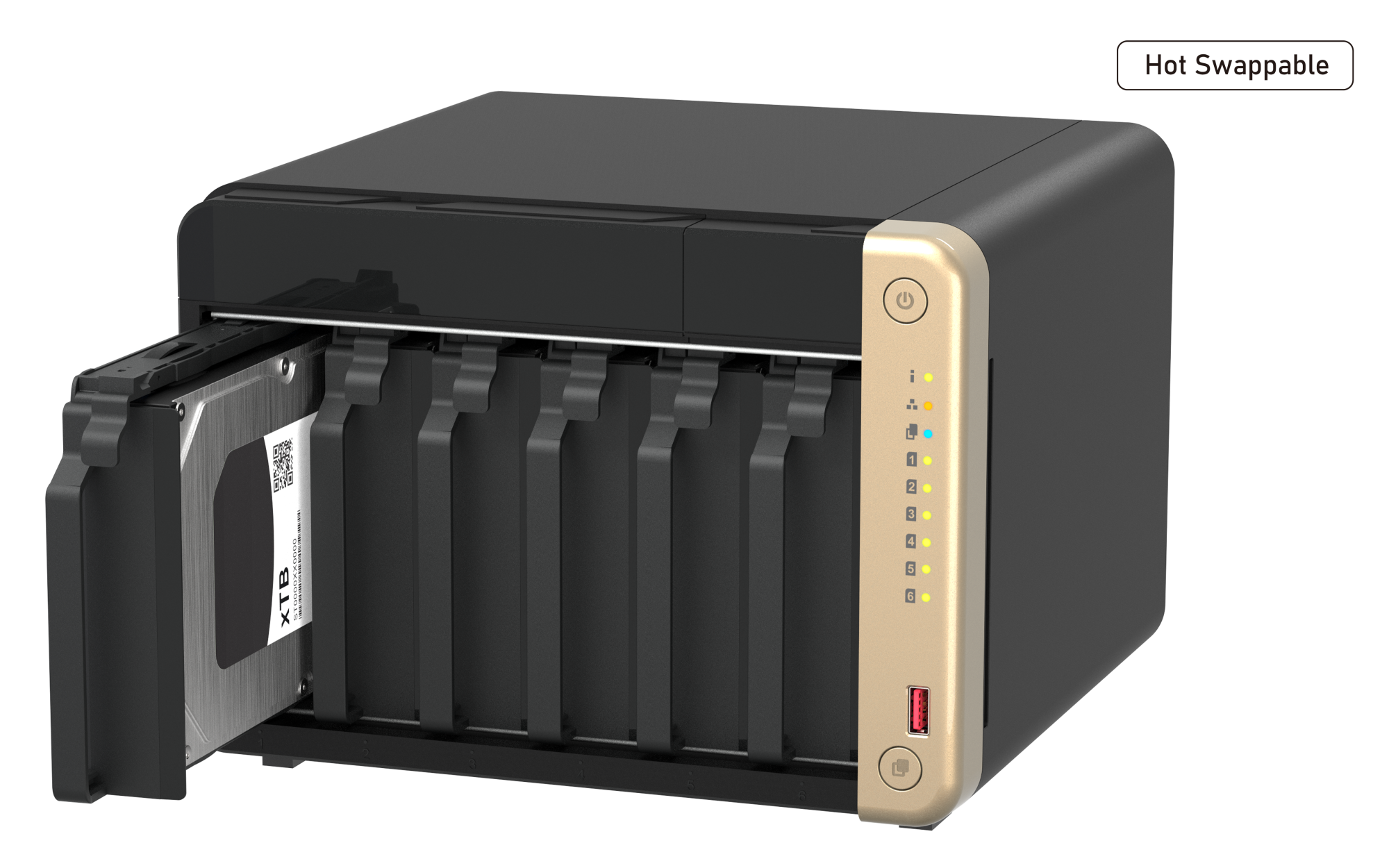

| Drive Bay | 6 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
|
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1
If a heatsink is to be installed, it is recommended that the top heatsink dimensions be less than 68 x 20 x 10 mm (L x W x H)
|
| SSD Cache Acceleration Support | YES |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Wake on LAN (WOL) | YES |
| Jumbo Frame | YES |
| PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
|
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
| IR Sensor | (Optional QNAP RM-IR004 remote control) |
| HDMI™ Output | 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | Power/Status, LAN, USB, HDD1-6 |
| Buttons | Power, USB copy, Reset |
| Dimensions (HxWxD) | 165 × 235 × 226.5 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 2.94 kg |
| Weight (Gross) | 5.1 kg |
| Operating Temperature | 0 ~ 40˚C (32˚F ~ 104˚F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 120W adapter, 100-240V |
| Power Consumption: Disk Standby Mode | 23.22 W |
| Power Consumption: Operating Mode, Typical | 44.02 W
Tested with drives fully populated.
|
| Fan | 2 x 90mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | YES |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 1500 |
