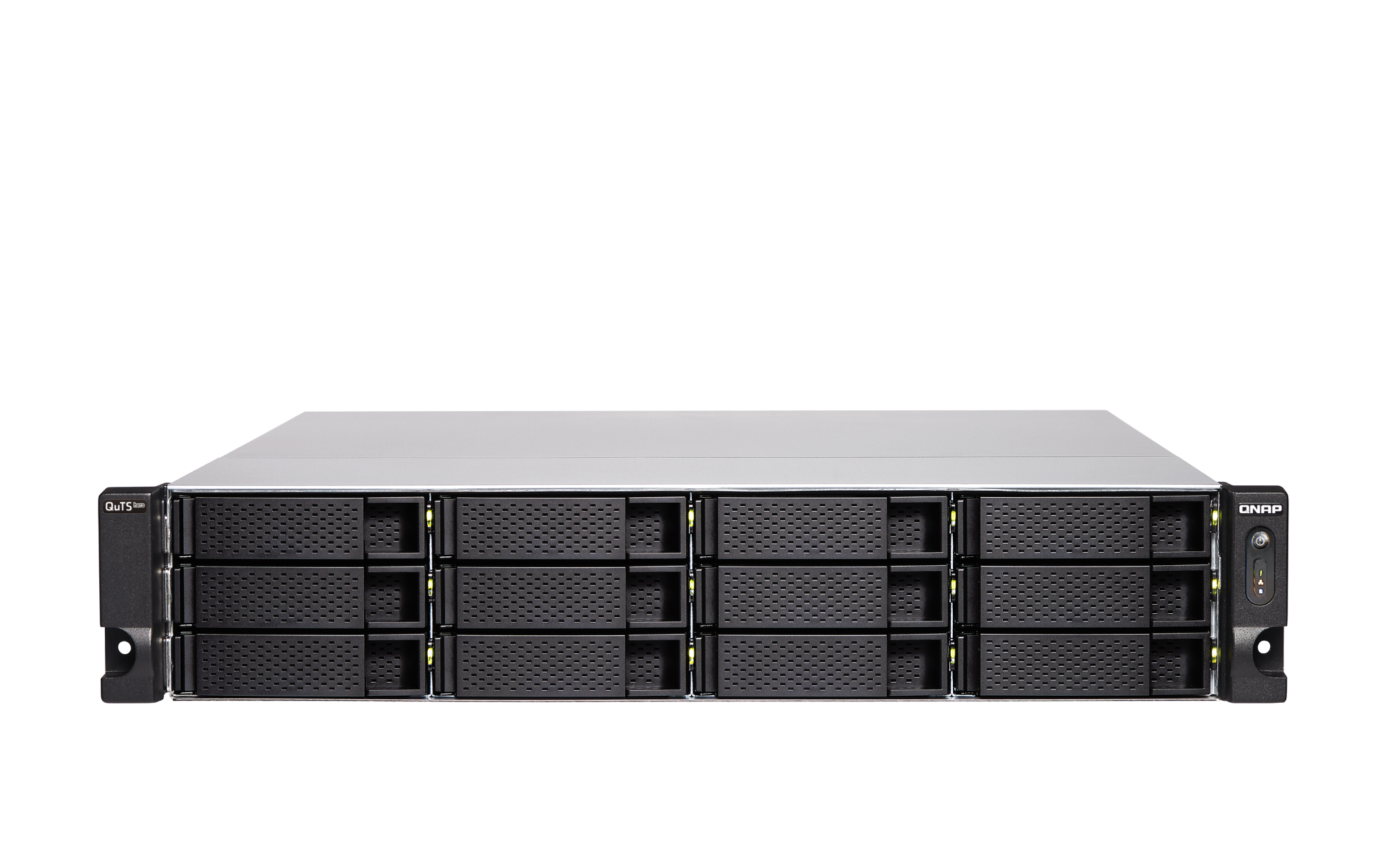

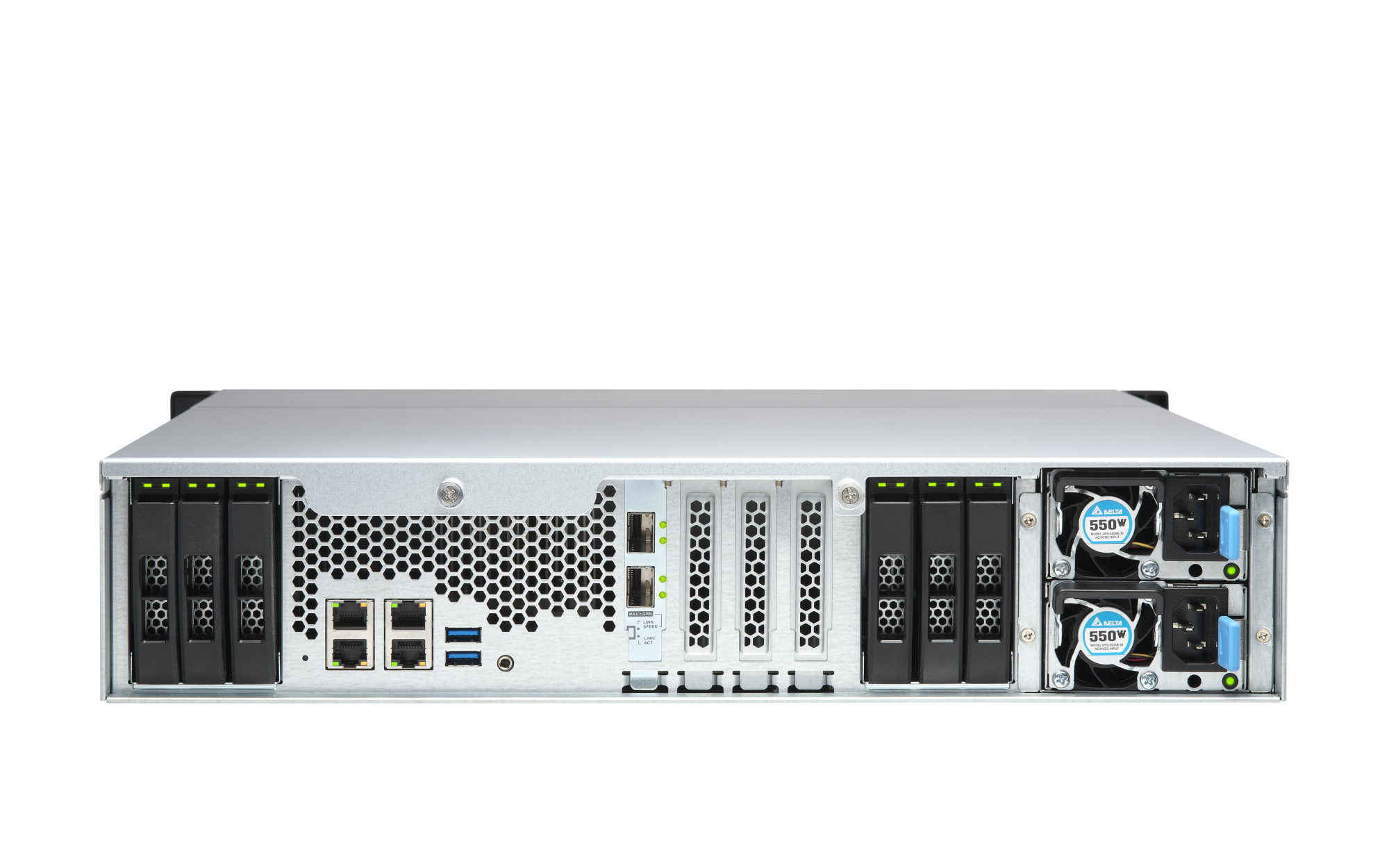

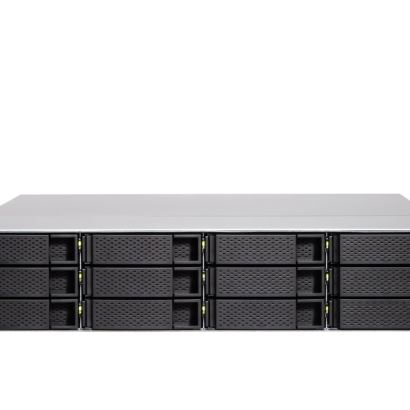

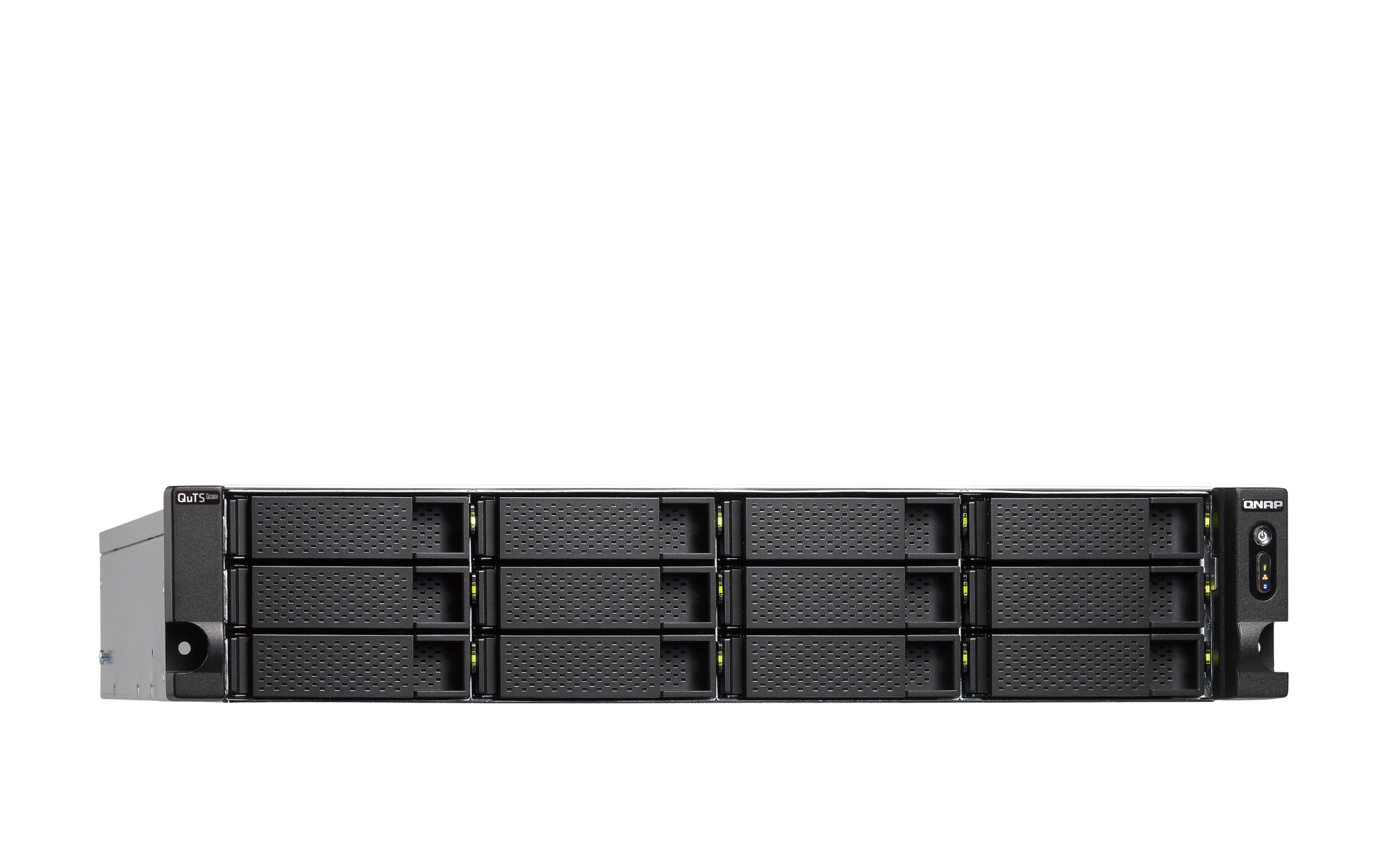

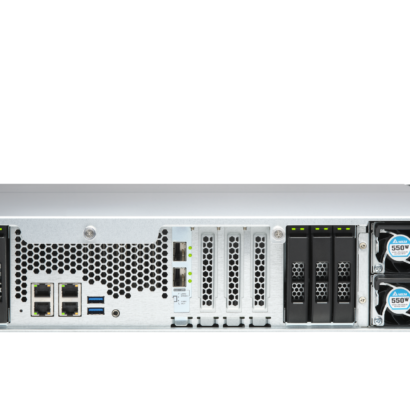

QNAP TS-h1886XU-RP-R2-D1622-32G 12+6 Bays Nas Rackmount
Original price was: ₹950,999.00.₹610,999.00Current price is: ₹610,999.00.
This enterprise rackmount NAS is powered by an Intel Xeon D-1622 4-core processor, delivering strong and reliable performance for demanding business workloads, virtualization, and large-scale storage tasks. It supports up to 128GB ECC DDR4 memory, features a hybrid 18-bay design (12 front + 6 rear), and includes dual 10GbE SFP+ SmartNIC ports for high-speed networking. With multiple PCIe expansion slots, SR-IOV support, and robust scalability, it is a high-performance solution designed for enterprise-grade data centers and mission-critical storage environments.
Available on backorder
QNAP TS-h1886XU-RP-R2-D1622-32G 12+6 Bays Nas Rackmount
Features
- Intel Xeon 4-core processor (server-grade performance)
- Boost speed up to 3.2 GHz
- 32GB ECC RAM (very reliable memory)
- Expandable RAM up to 128GB
- Strong data protection (AES encryption)
- Very large storage system (18 drive bays: 12 front + 6 rear)
- Supports HDD and SSD drives
- Hot-swappable drives (easy replacement)
- SSD caching support (faster performance option)
- 4 × 2.5Gb LAN ports (good network speed)
- 2 × 10Gb SFP+ ports (very fast networking)
- Pre-installed 10Gb network card
Specifications
| CPU | Intel® Xeon® D-1622 4-core processor, burst up to 3.2 GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | yes |
| Encryption Engine | (AES-NI) |
| System Memory | 32 GB UDIMM DDR4 ECC |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | Front: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| Hot-swappable | yes |
| SSD Cache Acceleration Support | yes |
| SR-IOV | yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port
Pre-installed with a 10GbE PCIe adapter
|
| Wake on LAN (WOL) | yes |
| Jumbo Frame | yes |
| PCIe Slot | 3 Slot 1: PCIe Gen 2 x4 (x8 Slot) Slot 2: PCIe Gen 3 x4 Slot 3: PCIe Gen 3 x8 or x4 (x8 Slot) *Slot 3 is preinstalled with a 10GbE network adapter.
**Slot 3 provides the width of PCIe Gen 3 x8 when Slot 2 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 2 is in use. Card dimensions for PCIe slot 1：170 x 68.9 x 39.08 mm / 6.70 x 2.71 x 1.54 inches. Card dimensions for PCIe slot 2：170 x 68.9 x 18.76 mm / 6.70 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 3：170 x 68.9 x 18.76 mm / 6.70 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 1 port | 2 |
| Form Factor | Rackmount |
| LED Indicators | HDD, SSD, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 432 × 511.2 mm |
| Weight (Net) | 14.5 kg |
| Weight (Gross) | 18.6 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 117.92 W
Tested with drives fully populated.
|
| Fan | System fan: 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 10000 |
