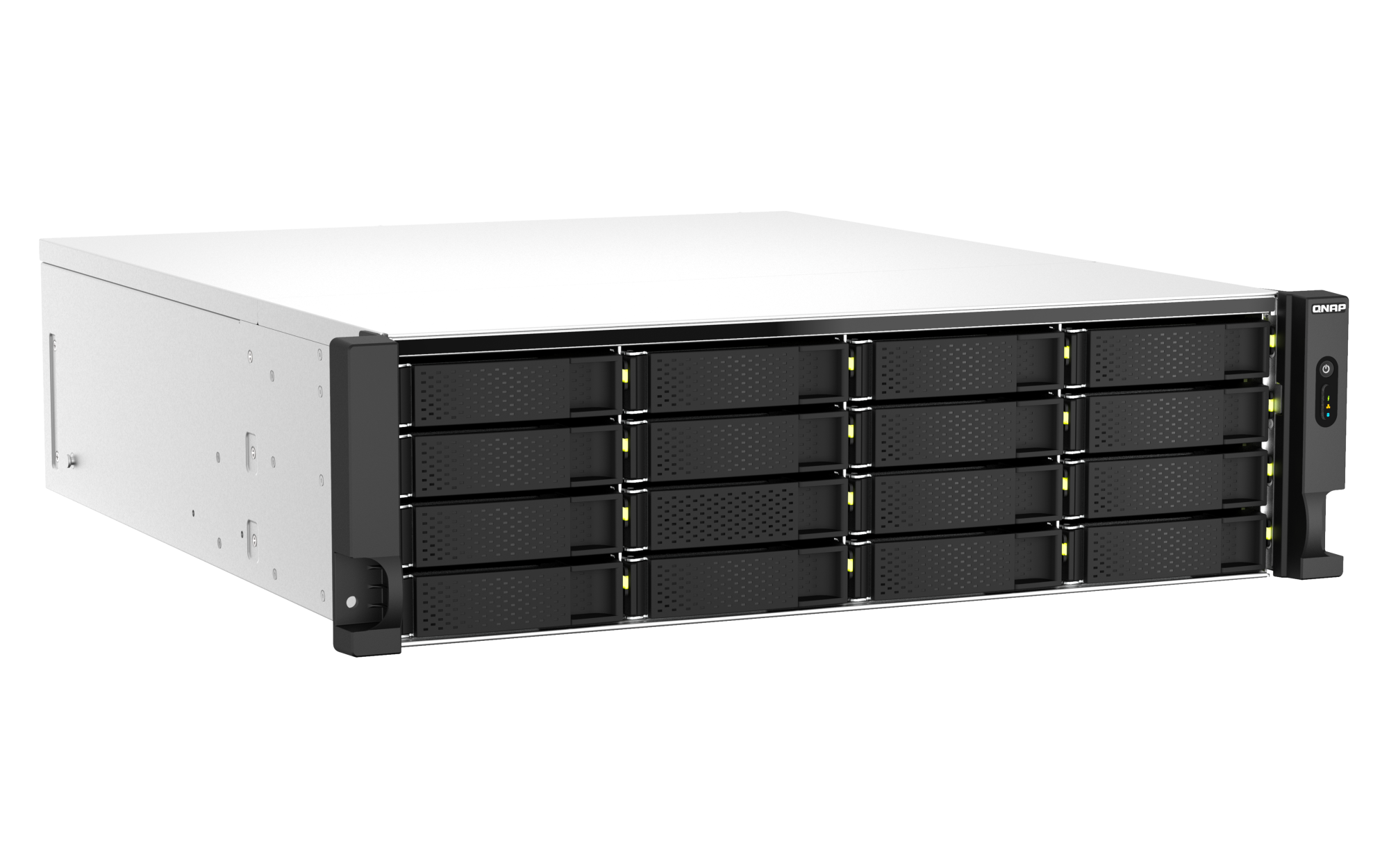

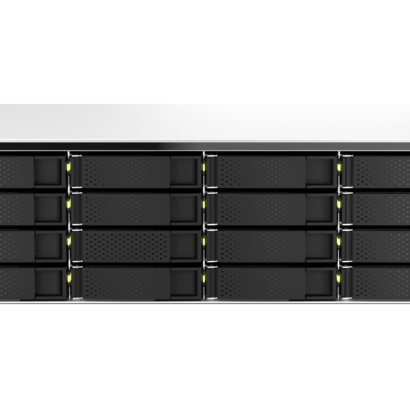

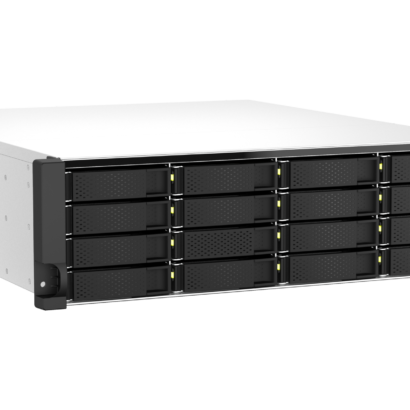

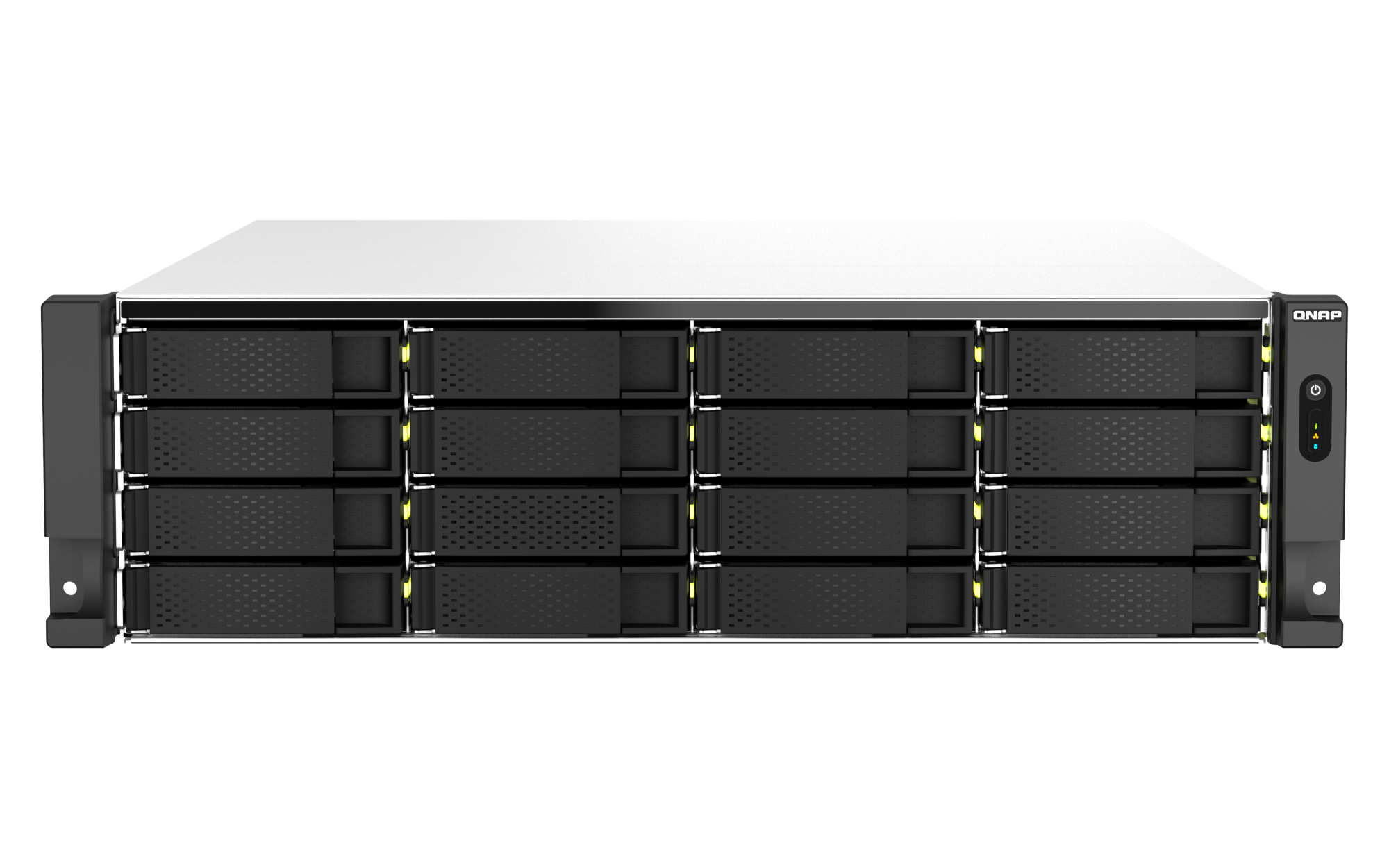

QNAP TS-h2287XU-RP-E2336-32G 22 Bays Nas Rackmount
Original price was: ₹1,580,999.00.₹689,999.00Current price is: ₹689,999.00.
Enterprise-grade 3U rackmount NAS powered by Intel Xeon E-2336 Processor with 6 cores and 12 threads, delivering strong multitasking and virtualization performance.Supports up to 128GB ECC DDR4 memory, 22-bay hybrid storage, dual 10GbE networking, and PCIe Gen4 expansion for scalable high-speed connectivity.Designed for data-intensive workloads, it provides reliable performance, strong security with AES-NI encryption, and excellent storage flexibility for enterprise environments.
Available on backorder
QNAP TS-h2287XU-RP-E2336-32G 22 Bays Nas Rackmount
Features
- Intel Xeon E-2336 processor (6 cores, 12 threads)
- Base speed 2.9 GHz, boost up to 4.8 GHz
- 64-bit x86 architecture
- Optional graphics via PCIe card
- AES-NI encryption support for security
- Intel Xeon server-grade CPU
- 32 GB DDR4 ECC RAM included
- Maximum RAM support: 128 GB
- 4 RAM slots available
- ECC memory for higher stability and fewer errors
- 22 total drive bays
- 16 × 3.5-inch HDD/SSD bays
- 6 × 2.5-inch SSD bays
Specifications
| CPU | Intel® Xeon® E-2336 6C 12T 2.9GHz, up to 4.8GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | yes |
| Encryption Engine | (AES-NI) |
| System Memory | 32 GB ECC DDR4 |
| Maximum Memory | 128GB (4 x 32 GB) |
| Memory Slot | 4 x ECC UDIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 22 (16 x 3.5-inch SATA + 6 x 2.5-inch SATA) |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | Optional via a QM2 PCIe adapter |
| SSD Cache Acceleration Support | yes |
| GPU pass-through | yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| 25 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | yes |
| PCIe Slot | 3 (2 x Gen4 x4 +1 x Gen 4 x8)
Card dimensions for PCIe slot 1：250 x 111.15 x 23.76 mm / 9.84 x 4.38 x 0.94 inches.
Card dimensions for PCIe slot 2：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches. Card dimensions for PCIe slot 3：250 x 111.15 x 18.76 mm / 9.84 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps |
| HDMI™ Output | Optional via a PCIe adapter |
| Form Factor | 3U Rackmount |
| LED Indicators | Status (Green/Red) LAN (Green) USB (Blue) HDD status (Green/Red) |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 131.3 × 432 × 511.5 mm |
| Weight (Net) | 17.47 kg |
| Weight (Gross) | 21.84 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5~95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 550W (x2) PSU |
| Power Consumption: Disk Standby Mode | 165.39 W |
| Power Consumption: Operating Mode, Typical | 228 W |
| Fan | 3 x 60mm + 1 x 80mm, 12VDC |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 11000 |
