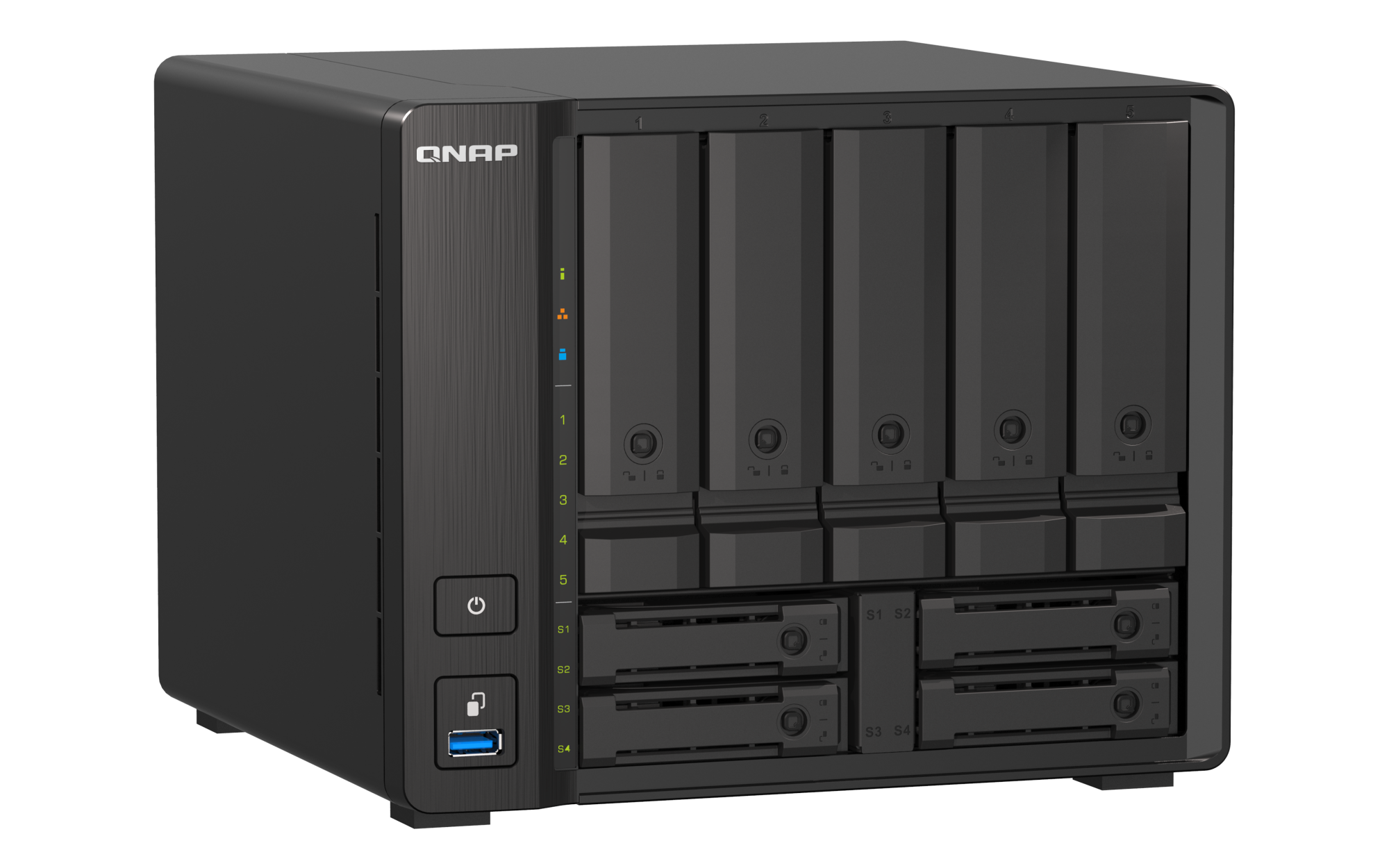

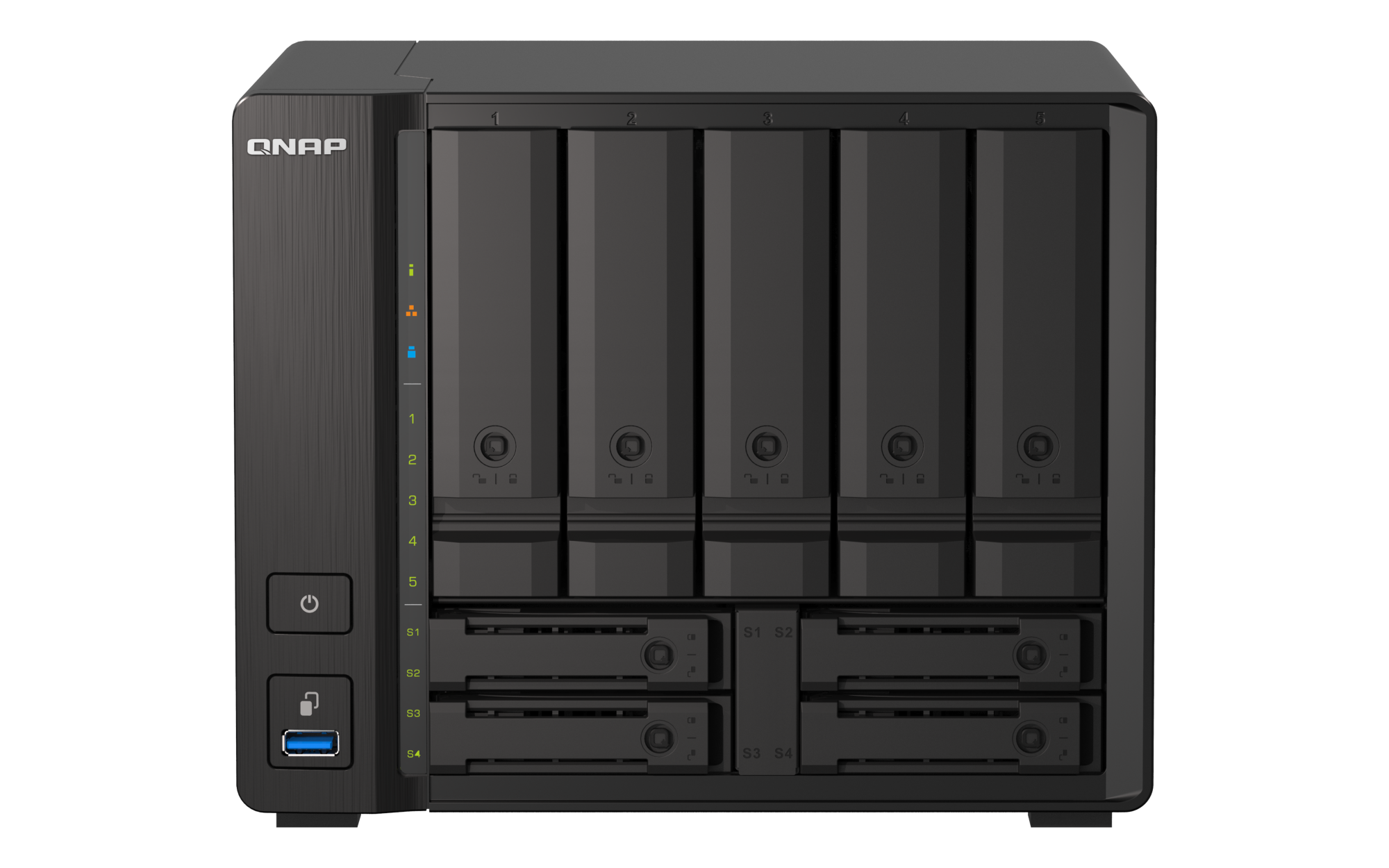

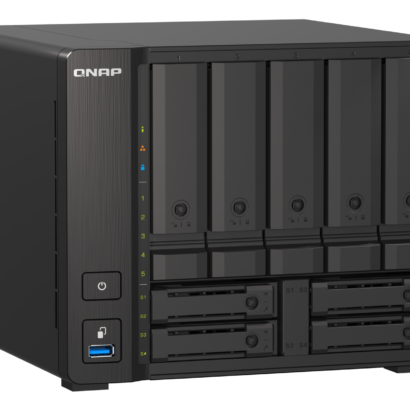

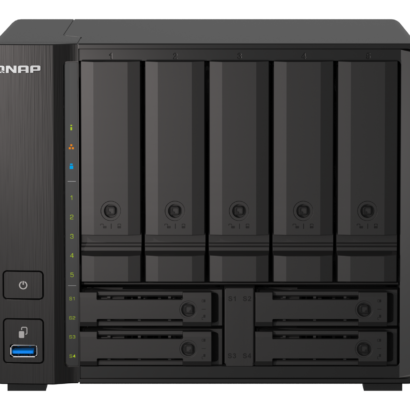

QNAP TS-h973AX-32G 9 Bays Nas Box
Original price was: ₹270,999.00.₹210,999.00Current price is: ₹210,999.00.
This compact NAS is powered by an AMD Ryzen Embedded V1500B 4-core processor, offering stable and efficient performance for file storage, backup, and small business workloads. It supports up to 64GB DDR4 RAM with optional ECC memory, includes a flexible 9-bay hybrid design, and provides 10GbE networking for high-speed data transfer. With SSD cache support, U.2 NVMe compatibility, and strong expandability, it is a reliable solution for scalable and secure storage needs.
QNAP TS-h973AX-32G 9 Bays Nas Box
Features
- MD Ryzen processor (4 cores, good speed and efficiency)
- 32GB RAM (expandable to 64GB)
- Supports ECC memory (more reliable data handling)
- Strong encryption support (AES security)
- 9 total drive bays (5 HDD + 4 SSD slots)
- Supports both hard drives and SSDs
- Supports ultra-fast U.2 NVMe SSD (in 2 slots)
- Hot-swappable drives (easy replacement)
- SSD cache support (faster performance)
- 2 × 2.5Gb LAN ports + 1 × 10Gb LAN port (very fast network)
- Can upgrade to 5Gb network via adapter
- USB Type-C + multiple USB 3.2 ports
Specifications
| CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | YES |
| Encryption Engine | (AES-NI) |
| System Memory | 32 GB SODIMM DDR4 |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 Support optional ECC memory For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 5 x 3.5-inch + 4 x 2.5-inch
The system is shipped without HDD/SSD.
|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: * 2.5-inch bay #1 & #2 support either U.2 NVMe SSDs or SATA 6Gb/s SSDs.
** U.2 NVMe solid-state drives can only be installed in 2.5-inch bay numbers 1 and 2. Installing these drives in other bays will damage the drive connectors. |
| Hot-swappable | YES |
| SSD Cache Acceleration Support | YES |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via the QNA-UC5G1T USB to 5GbE network adapter |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | YES |
| Jumbo Frame | YES |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 3 x Type-A USB 3.2 Gen 2 |
| Form Factor | Tower |
| LED Indicators | HDD 1-5, SSD 1-4, Power/Status, LAN, USB |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 176.5 × 224.6 × 224.1 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 4.34 kg |
| Weight (Gross) | 5.08 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External, 120 W, AC 100 to 240 V |
| Power Consumption: Disk Standby Mode | 41.2 W |
| Power Consumption: Operating Mode, Typical | 55.41 W
Tested with drives fully populated.
|
| Fan | 1 x 140mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | YES |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 2000 |
