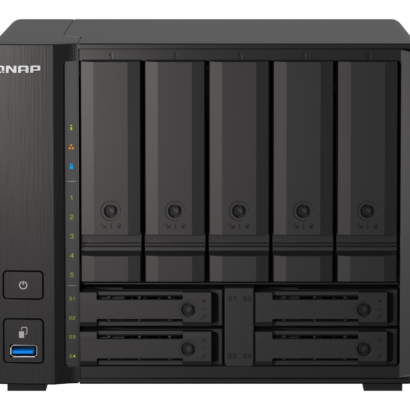

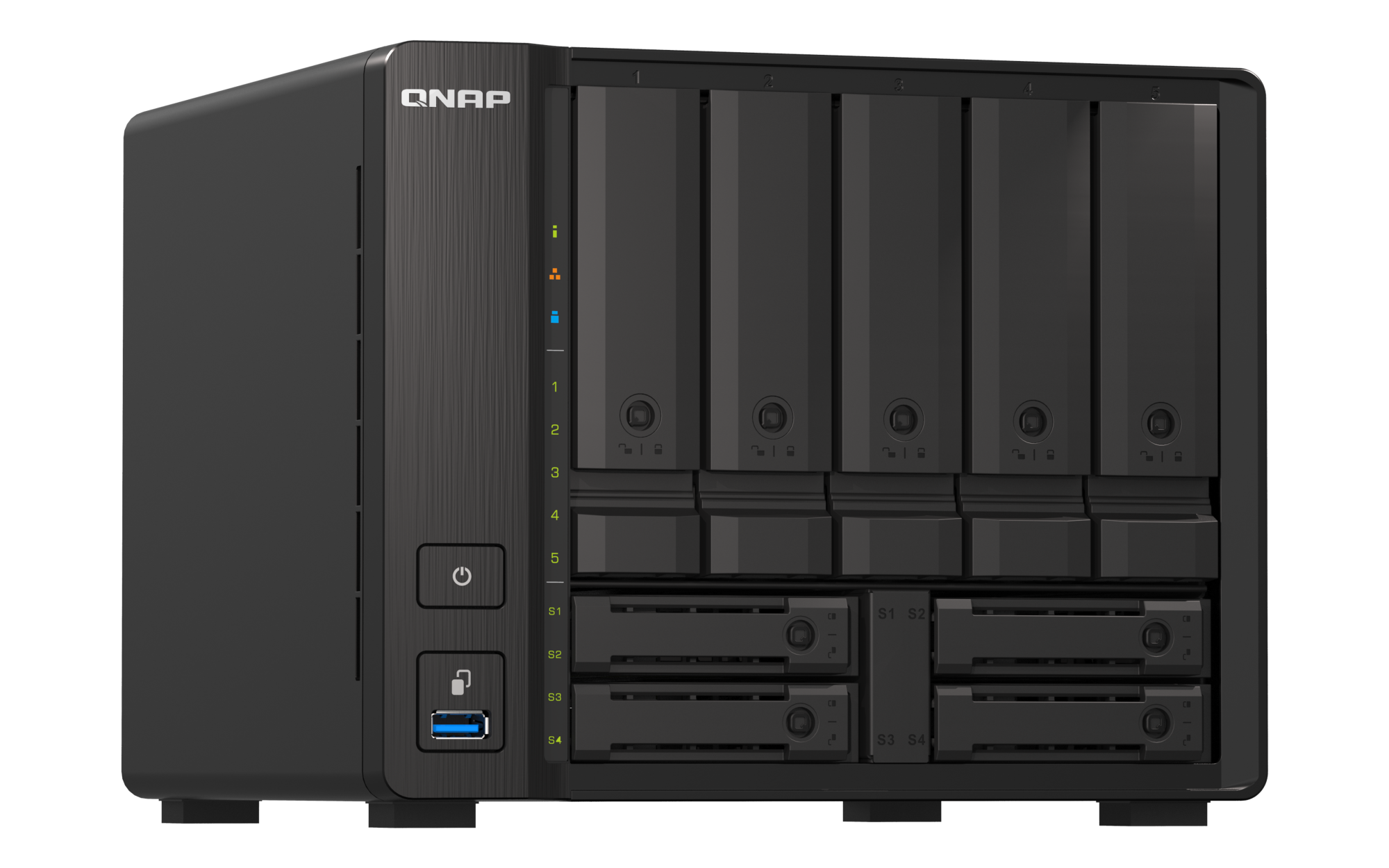

QNAP TS-h973AX-8G 9 Bays Nas Box
Original price was: ₹230,999.00.₹162,999.00Current price is: ₹162,999.00.
This compact and powerful NAS is powered by an AMD Ryzen Embedded V1500B 4-core processor, delivering reliable performance for everyday storage, backup, and business applications. It supports up to 64GB DDR4 RAM with ECC option, features a flexible 9-bay design, and includes built-in 10GbE connectivity for fast data transfer. With SSD cache support, NVMe compatibility, and strong security features, it is ideal for small to medium businesses needing efficient and scalable storage.
QNAP TS-h973AX-8G 9 Bays Nas Box
Features
- AMD Ryzen processor (good performance, energy efficient)
- 32GB RAM (upgradeable to 64GB)
- Supports ECC memory (better data reliability)
- Strong data security (AES encryption)
- 9 drive slots (5 HDD + 4 SSD)
- Supports fast U.2 NVMe SSD (very high speed)
- Hot-swappable drives (easy to replace)
- SSD caching for faster performance
- 2 × 2.5Gb LAN + 1 × 10Gb LAN (very fast network)
- Option to upgrade to 5Gb network
- USB Type-C and multiple USB ports
- Compact tower design (lighter than bigger NAS)
Specifications
| CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | YES |
| Encryption Engine | (AES-NI) |
| System Memory | 32 GB SODIMM DDR4 |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 Support optional ECC memory For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 5 x 3.5-inch + 4 x 2.5-inch
The system is shipped without HDD/SSD.
|
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: * 2.5-inch bay #1 & #2 support either U.2 NVMe SSDs or SATA 6Gb/s SSDs.
** U.2 NVMe solid-state drives can only be installed in 2.5-inch bay numbers 1 and 2. Installing these drives in other bays will damage the drive connectors. |
| Hot-swappable | YES |
| SSD Cache Acceleration Support | YES |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via the QNA-UC5G1T USB to 5GbE network adapter |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | YES |
| Jumbo Frame | YES |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 3 x Type-A USB 3.2 Gen 2 |
| Form Factor | Tower |
| LED Indicators | HDD 1-5, SSD 1-4, Power/Status, LAN, USB |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 176.5 × 224.6 × 224.1 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 4.34 kg |
| Weight (Gross) | 5.08 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | External, 120 W, AC 100 to 240 V |
| Power Consumption: Disk Standby Mode | 41.2 W |
| Power Consumption: Operating Mode, Typical | 55.41 W
Tested with drives fully populated.
|
| Fan | 1 x 140mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | YES |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 2000 |
