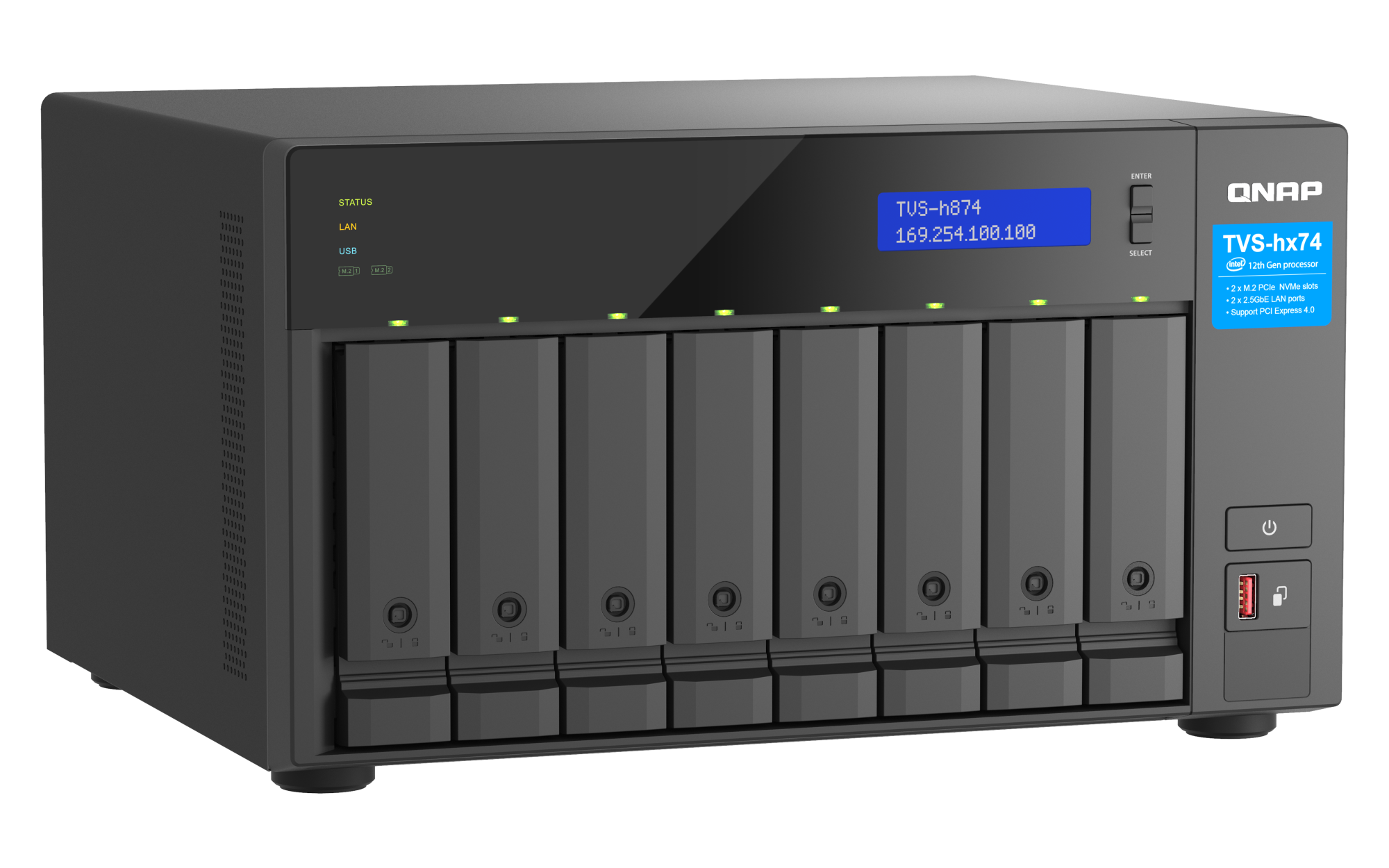

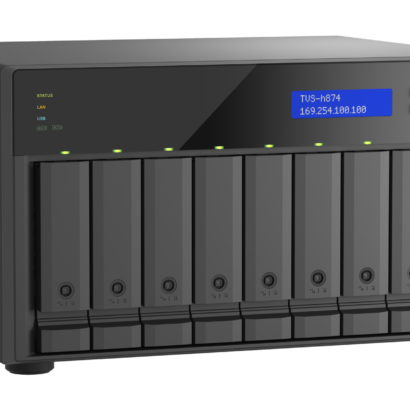

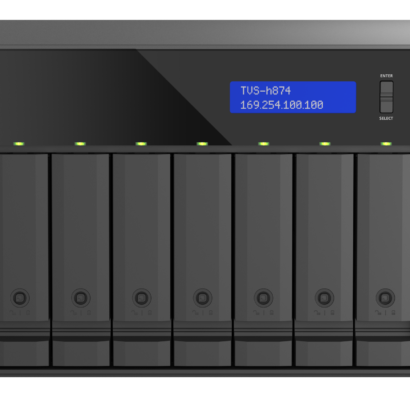

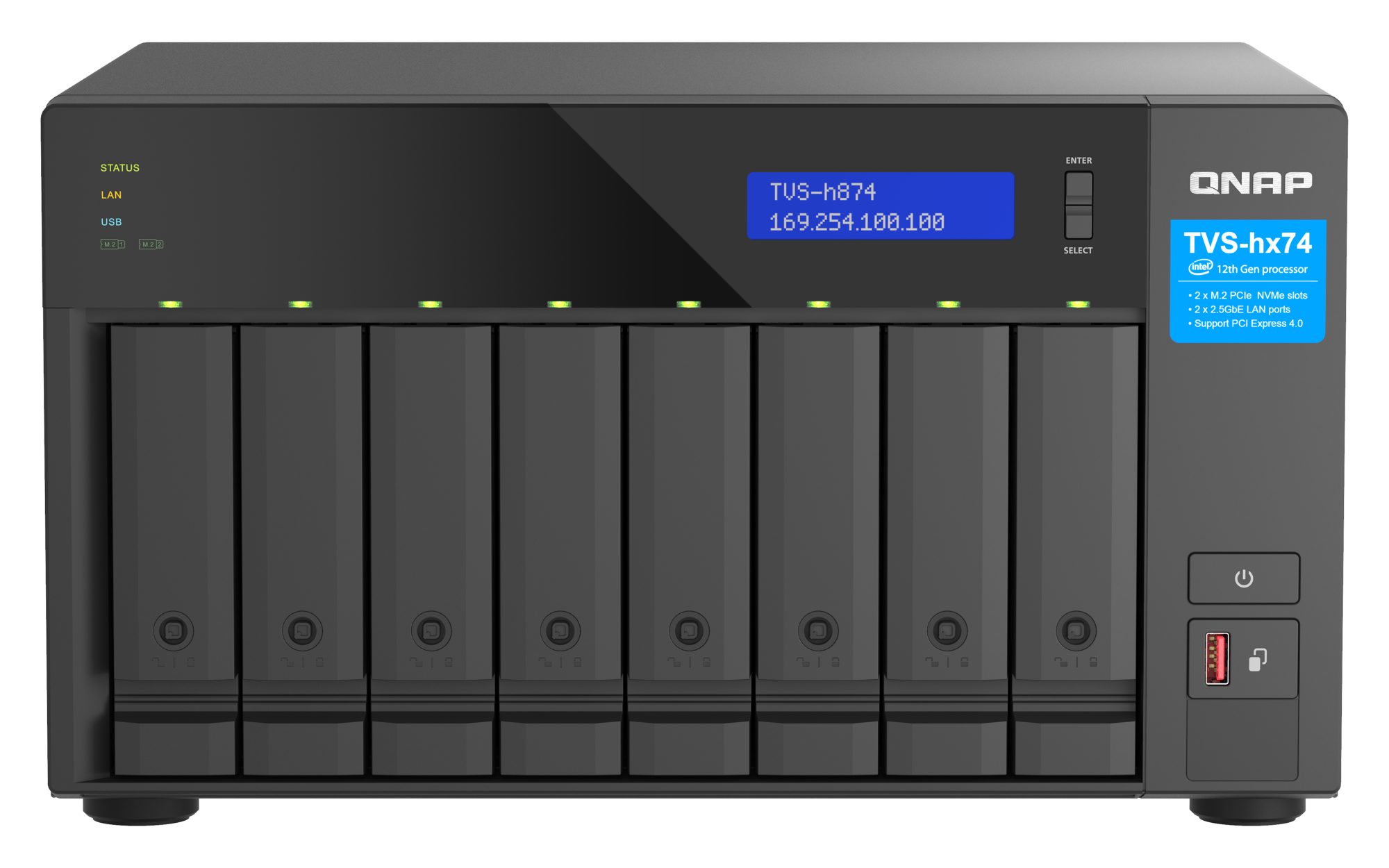

QNAP TVS-h874-i7-32G 8 Bays Nas Box
Original price was: ₹550,999.00.₹399,999.00Current price is: ₹399,999.00.
This high-performance NAS features an Intel Core i5 processor with 6 cores and 12 threads, delivering fast and reliable performance for multitasking, data storage, and virtualization. With up to 64GB RAM support, dual 2.5GbE ports, and NVMe SSD cache acceleration, it ensures smooth data transfer and efficient workload handling. Its 8-bay design, advanced security features, and expansion options make it ideal for businesses and power users needing scalable and secure storage.
QNAP TVS-h874-i7-32G 8 Bays Nas Box
Features
- High Performance CPU: Intel Core i5 12th Gen (6-core/12-thread) for fast and efficient processing.
- Large Storage Capacity: 8 SATA drive bays with support for HDDs and SSDs.
- High-Speed Cache: Dual M.2 Gen4 slots for ultra-fast NVMe SSD caching.
- Strong Expandability: PCIe Gen4 slots for GPU, 10GbE networking, and upgrades.
- Fast Connectivity: Dual 2.5GbE ports with optional higher-speed network upgrades.
- Professional Design: Built for heavy workloads with 32GB RAM and support up to 64GB.
Specifications
| CPU | Intel® Core™ i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics 730 |
| Floating Point Unit | YES |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | YES |
| System Memory | 32 GB SODIMM DDR4 |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 4 x4 slots
Compatible with NVMe SSD PCIe Gen 3 and above.
|
| SSD Cache Acceleration Support | YES |
| GPU pass-through | YES |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card |
| Wake on LAN (WOL) | YES |
| Jumbo Frame | YES |
| PCIe Slot | 2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 Card dimensions for PCIe slot 1~Slot 2：185 x 131.15 x 18.76 mm / 7.28 x 5.16 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 2 x Type-A USB 3.2 Gen 2 10Gbps |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-8, Status, LAN, USB port, M.2 port |
| LCD Display/ Button | YES |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 188.2 × 329.3 × 280.8 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 7.3 kg |
| Weight (Gross) | 8.95 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W, 100-240V |
| Power Consumption: Disk Standby Mode | 58.127 W |
| Power Consumption: Operating Mode, Typical | 81.865 W
Tested fully populated with WD10EFRX hard drives.
|
| Fan | System fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | YES |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 3500 |
