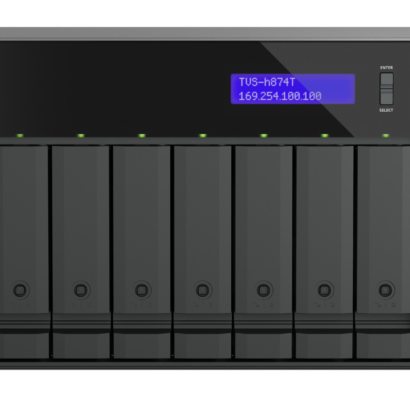

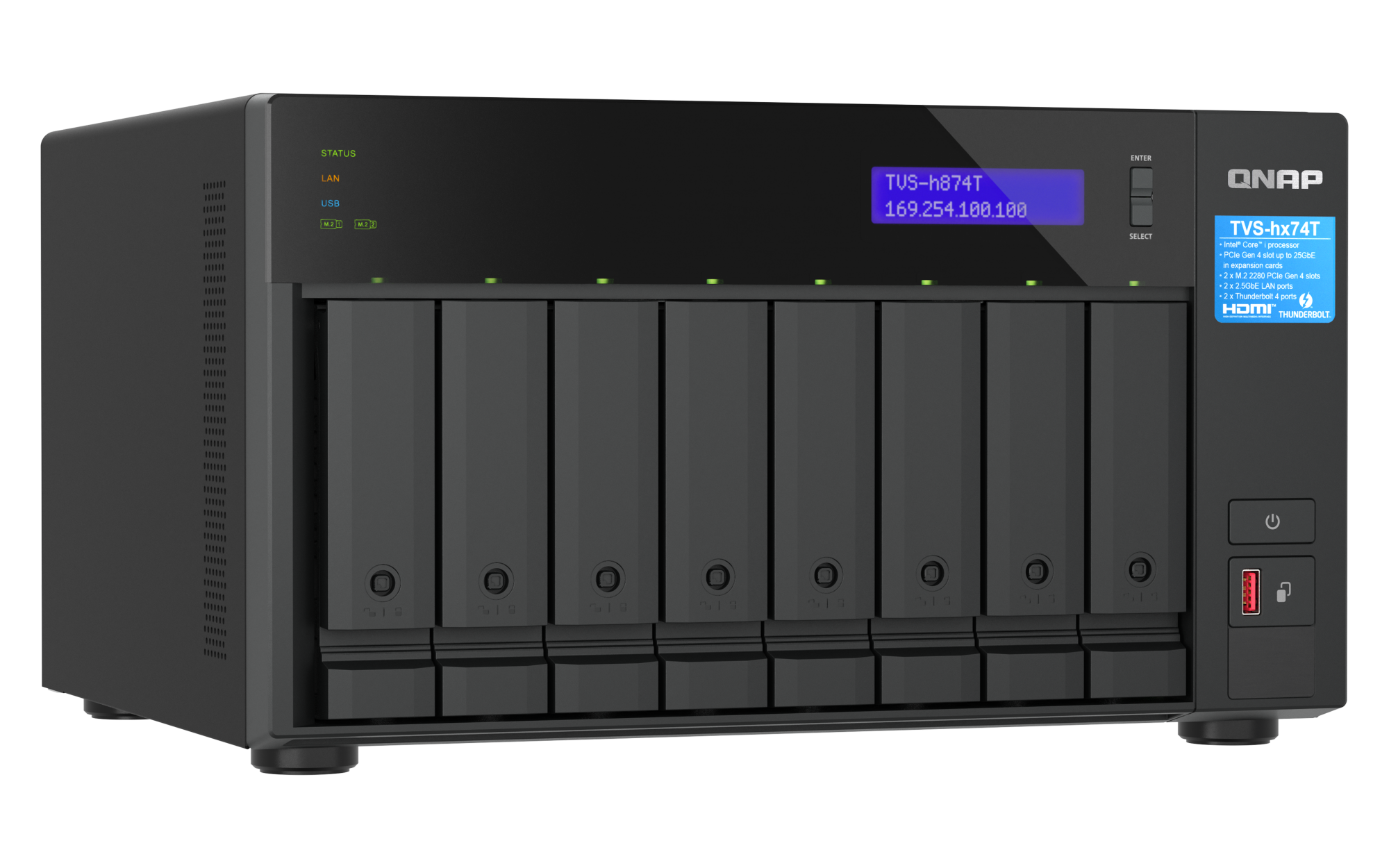

QNAP TVS-h874T-i7-32G 8 Bays Nas Box
Original price was: ₹575,999.00.₹446,999.00Current price is: ₹446,999.00.
This high-performance NAS is powered by a 12-core Intel Core i7 processor with 20 threads, delivering exceptional speed for multitasking, virtualization, and heavy workloads. It supports up to 64GB RAM, features dual 2.5GbE ports, Thunderbolt 4 connectivity, and NVMe SSD cache acceleration for ultra-fast data access and transfer. With an 8-bay design, PCIe expansion, and advanced security features, it is ideal for businesses and professionals needing scalable, high-speed storage solutions.
QNAP TVS-h874T-i7-32G 8 Bays Nas Box
Features
- Fast Intel i7 processor (handles heavy work easily)
- 32GB RAM (expandable to 64GB)
- Stores lots of data (8 hard drives supported)
- Very fast storage option with NVMe SSD slots
- Good for streaming videos smoothly
- Strong data security (encryption support)
- Fast internet ports (2.5Gb LAN)
- Can upgrade to faster network (5G/10G)
- Has Thunderbolt 4 for high-speed connections
- Supports USB and HDMI
- Good cooling system with multiple fans
Specifications
| CPU | Intel® Core™ i7 12-core (8P+4E) /20-thread Processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics 770 |
| Floating Point Unit | YES |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | YES |
| System Memory | 32 GB SODIMM DDR4 |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | (Not supported M.2 SSD) |
| M.2 Slot | 2 x M.2 2280 PCIe Gen 4 x4 slots
Compatible with NVMe SSD PCIe Gen 3 and above.
|
| SSD Cache Acceleration Support | YES |
| GPU pass-through | YES |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port | Optional via PCIe expansion card
Optional via PCIe expansion card
|
| Wake on LAN (WOL) | YES |
| Jumbo Frame | YES |
| Thunderbolt Port | 2 (Thunderbolt™ 4)
Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.
|
| PCIe Slot | 2 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x4 *Slot 2 is preinstalled with a Thunderbolt 4 AIC.
Card dimensions for PCIe slot 1~Slot 2：185 x 131.15 x 18.76 mm / 7.28 x 5.16 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used. |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 2 x Type-A USB 3.2 Gen 2 10Gbps |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | HDD 1-8, Status, LAN, USB port, M.2 port |
| LCD Display/ Button | YES |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 180.2 × 329.3 × 279.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
| Weight (Net) | 7.34 kg |
| Weight (Gross) | 8.99 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 350W (PWR-PSU-350W-DT01), 100-240V |
| Power Consumption: Disk Standby Mode | 62.668 W |
| Power Consumption: Operating Mode, Typical | 104.35 W
Tested fully populated with WD10EFRX hard drives.
|
| Fan | System fan: 2 x 120mm, 12VDC CPU fan: 1 x 60mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | YES |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 3500 |
