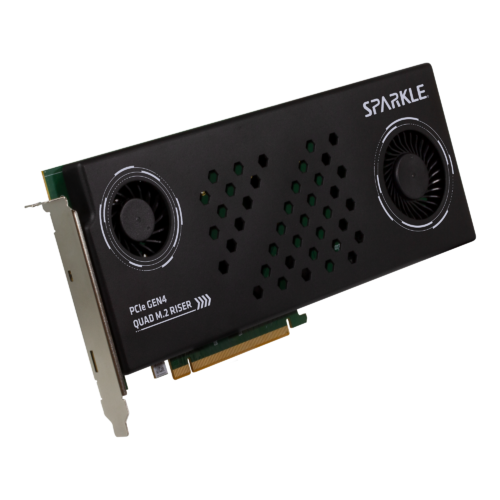

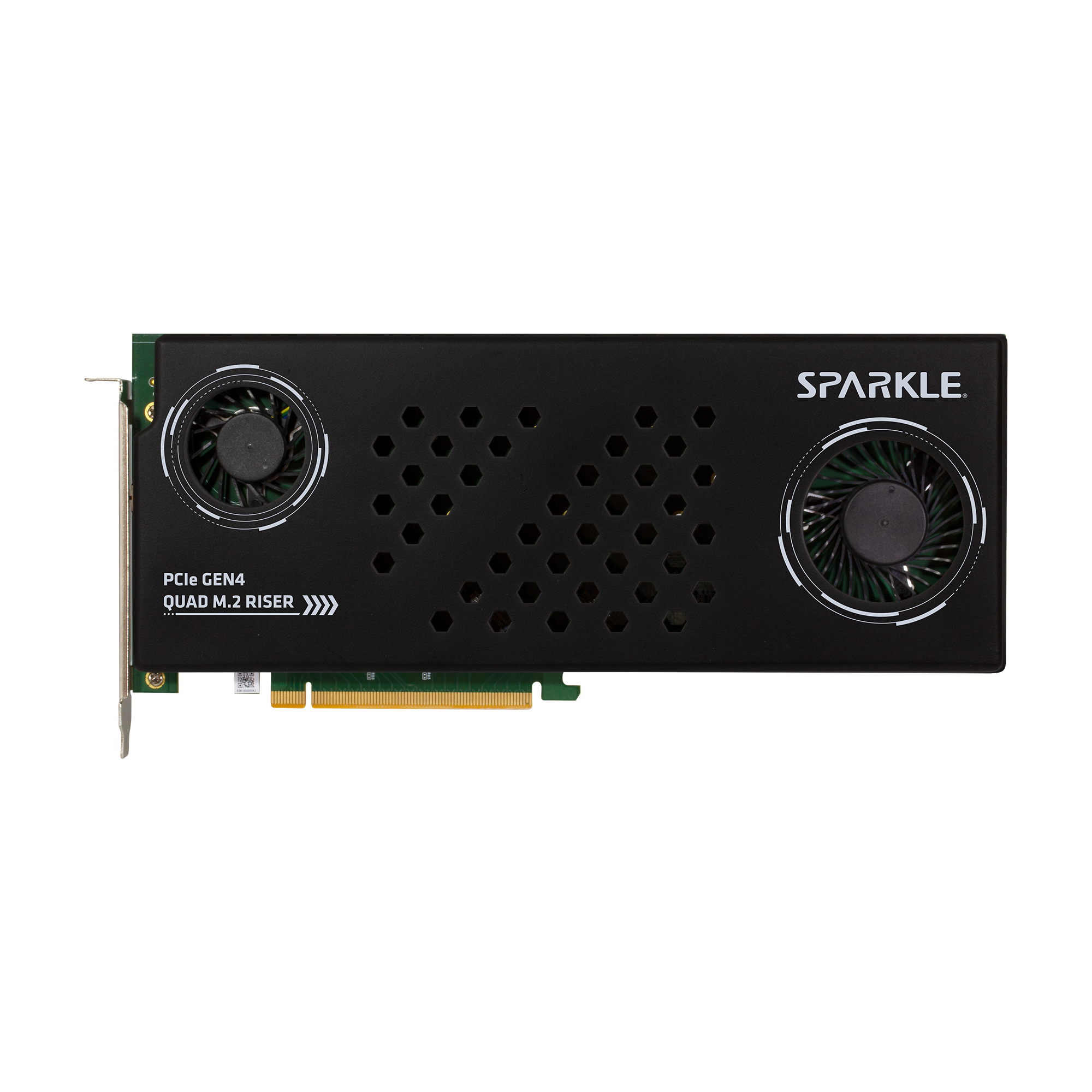

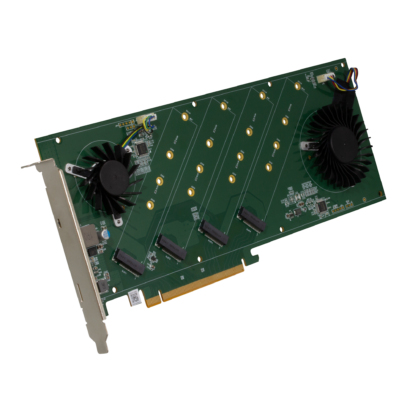

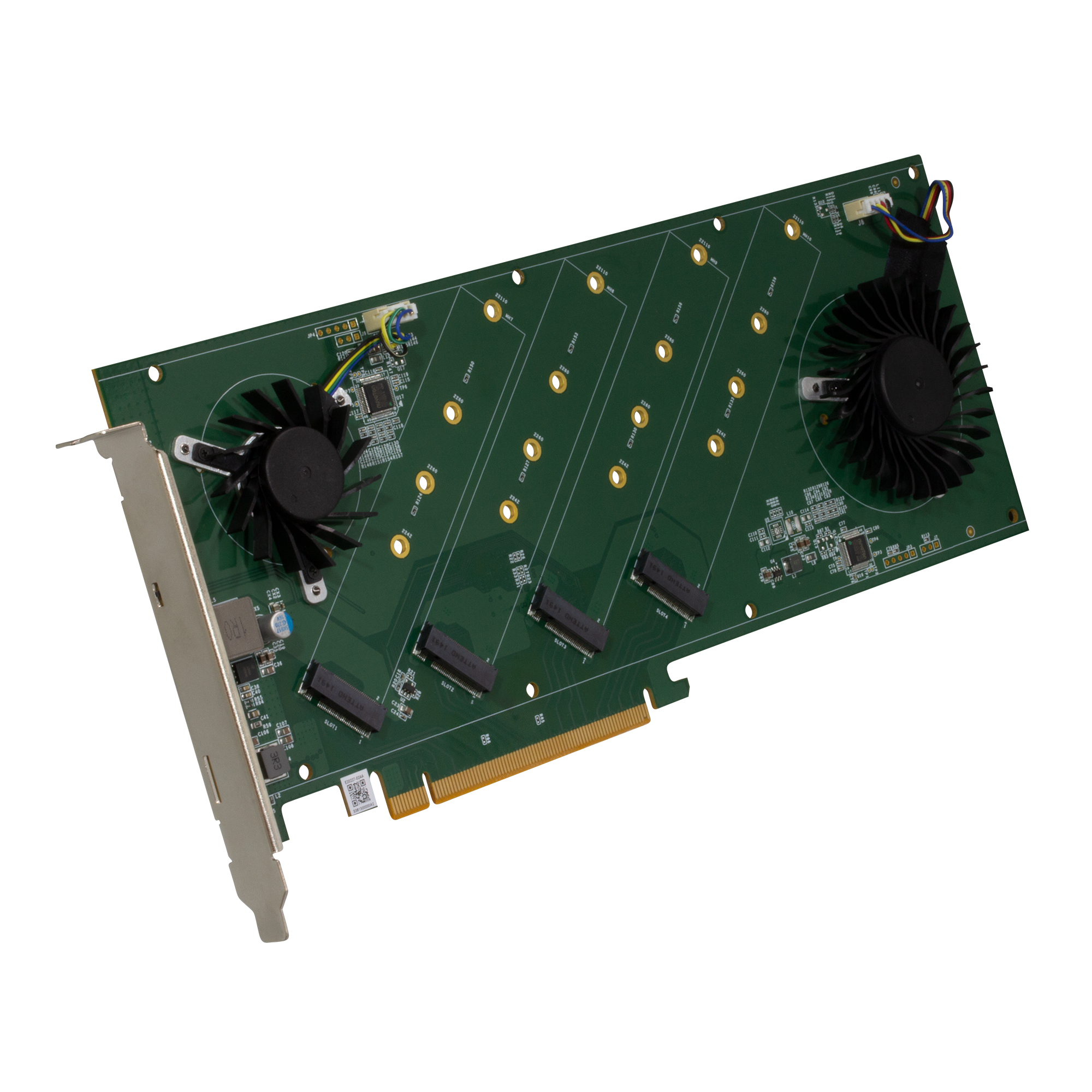

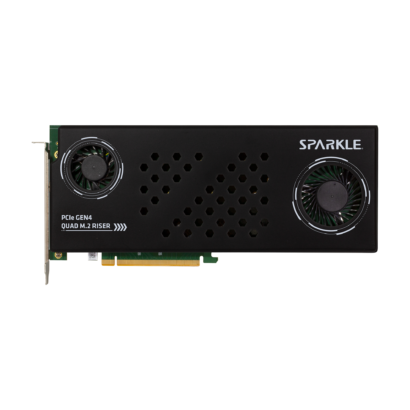

SPARKLE PCIe Gen4 Quad M.2 Riser
SPARKLE PCIe Gen4 Quad M.2 Riser is a premium PCIe 4.0 x16 storage expansion card supporting four NVMe M.2 SSDs, 256 Gbps bandwidth, Intel® VROC, AMD RAIDXpert2, RAID 0/1/10, dual cooling fans, integrated temperature sensors, and advanced thermal management. Designed for AI, enterprise storage, virtualization, video editing, and professional workstation applications, it delivers exceptional NVMe storage performance and reliability.
SPARKLE PCIe Gen4 Quad M.2 Riser
Features
- Supports up to four NVMe PCIe Gen4 M.2 SSDs.
- PCIe Gen4 x16 interface with up to 256 Gbps bandwidth.
- Compatible with M-Key 2242, 2260, 2280, and 22110 SSDs.
- Supports Intel® VROC and AMD RAIDXpert2 technologies.
- RAID support for RAID 0, RAID 1, and RAID 10 (platform dependent).
- Equipped with dual cooling fans (50mm & 60mm) for efficient thermal management.
- Built-in 8 temperature sensors monitor SSD temperatures in real time.
- Four LED activity indicators display individual SSD read/write activity.
- High-quality aluminum heatsink with thermal pads for maximum cooling.
- Full-height, single-slot design for workstation and server systems.
- Perfect for AI training, virtualization, video editing, NAS, enterprise storage, and high-performance workstations.
Specifications
| Product Name | SPARKLE PCIe Gen4 Quad M.2 Riser |
| Model Number | EP-G4M2X4 |
| Manufacturer | SPARKLE |
| Product Type | PCIe Gen4 NVMe M.2 Expansion Card |
| PCIe Interface | PCI Express® 4.0 x16 |
| Maximum Bandwidth | Up to 256 Gbps |
| M.2 Slots | 4 × NVMe M.2 (M-Key) |
| Supported SSD Sizes | 2242 / 2260 / 2280 / 22110 |
| SSD Interface | PCIe Gen4 x4 per Slot |
| RAID Support | RAID 0, RAID 1, RAID 10* |
| Platform Support | Intel® VROC & AMD RAIDXpert2 |
| Cooling | Dual Cooling Fans (50mm + 60mm Double Ball Bearing) |
| Temperature Monitoring | 8 Temperature Sensors |
| Activity Indicators | 4 × M.2 LED Indicators |
| Form Factor | Full-Height, Single-Slot Add-in Card |
| Dimensions | 280 × 120 × 17 mm |
| Weight | 296 g |
| Operating Temperature | 0°C to 50°C |
| Included Accessories | Thermal Pads, Mounting Screws, Standoffs, User Manual |
| Warranty | 1 Year |
