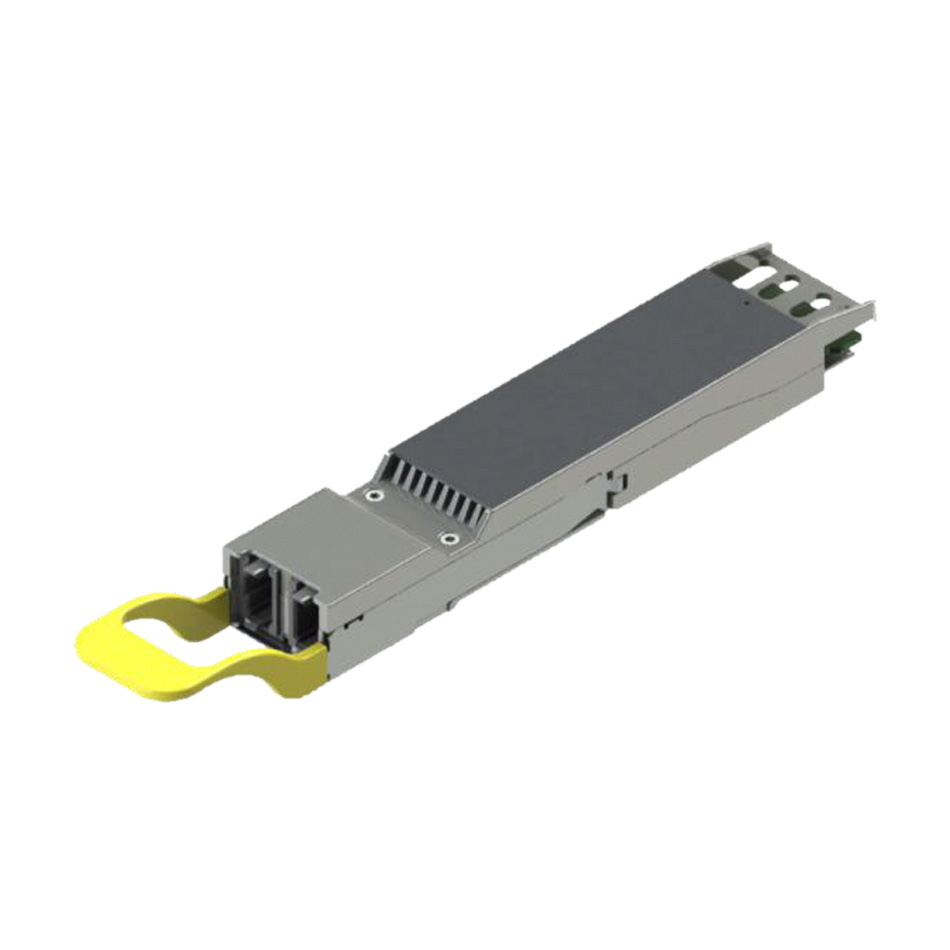

Syrotech GOXQ-8540G-02SR4 Data Center Optical Transceiver

Features

• High‑speed 40 Gbps module – Transfers data up to 40 Gbps by using four channels working in both directions.
• Each lane up to ~10.5 Gbps – Every channel supports around ~10.5 Gbps for fast communication.
• Short‑range fiber use – Works over multimode fiber (MMF) with reach up to 100 m on OM3 fiber and 150 m on OM4 fiber.
• QSFP+ hot‑swappable form – Can be plugged into or removed from switches/routers without shutting them down.
• 850 nm VCSEL light – Uses 850 nm light source for optical transmission.
• Dual LC connector – Standard two‑fiber plug for easy fiber connection.
• Low power use – Consumes less than 1.5 W, saving energy.
• Built‑in monitoring – Has digital diagnostics to check temperature and optical signals.
• Normal temperature operation – Works safely from 0 °C to +70 °C.

Specifications
