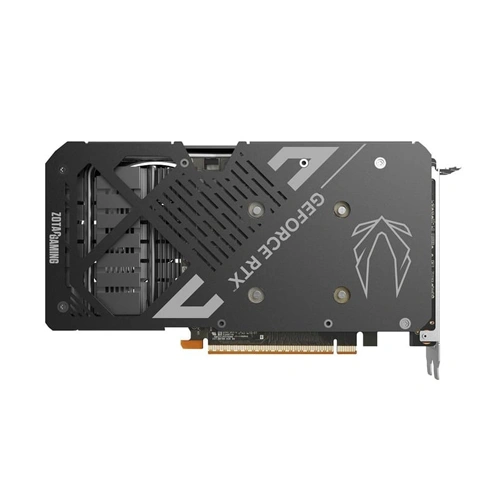

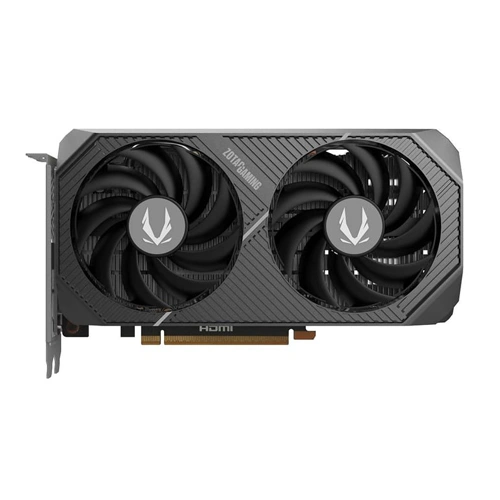

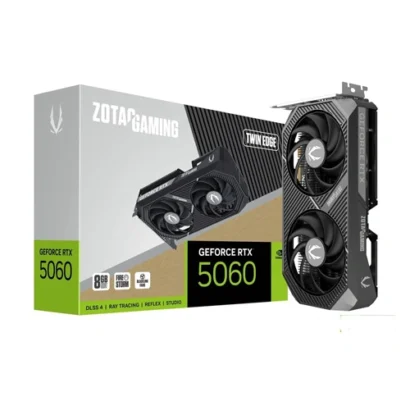

ZOTAC GeForce RTX 5060 Twin Edge 8GB GDDR7 Graphics Card
The ZOTAC GAMING GeForce RTX 5060 Twin Edge 8GB GDDR7 Graphics Card (ZT-B50600E-10M) features NVIDIA Blackwell architecture, 3,840 CUDA cores, 8GB GDDR7 memory and a 2,497MHz boost clock. With DLSS 4, advanced ray tracing, dual 90mm BladeLink fans and PCIe 5.0 connectivity, it delivers excellent performance for high-FPS 1080p and 1440p gaming.
ZOTAC GeForce RTX 5060 Twin Edge 8GB GDDR7 Graphics Card
Features
- NVIDIA Blackwell Architecture: Built for modern gaming and AI workloads.
- 3,840 CUDA Cores: Delivers strong GPU processing performance.
- 8GB GDDR7 Memory: Faster memory for demanding games and applications.
- 2,497 MHz Boost Clock: Standard Twin Edge clock speed.
- 28 Gbps Memory: Provides high-speed graphics memory performance.
- DLSS 4: Supports AI-powered upscaling and Multi Frame Generation.
- Advanced Ray Tracing: 4th-generation RT Cores deliver realistic lighting and reflections.
- Dual 90mm BladeLink Fans: Provides effective cooling with a compact design.
- SFF-Ready: Suitable for smaller PC cases and compact gaming builds.
Specifications
| Brand | ZOTAC |
| Series | GAMING GeForce RTX 5060 |
| Model | Twin Edge |
| Part Number | ZT-B50600E-10M |
| GPU | NVIDIA GeForce RTX 5060 |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 3,840 |
| Boost Clock | 2,497 MHz |
| Graphics Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Memory Bandwidth | 448 GB/s |
| Interface | PCIe 5.0 x8 |

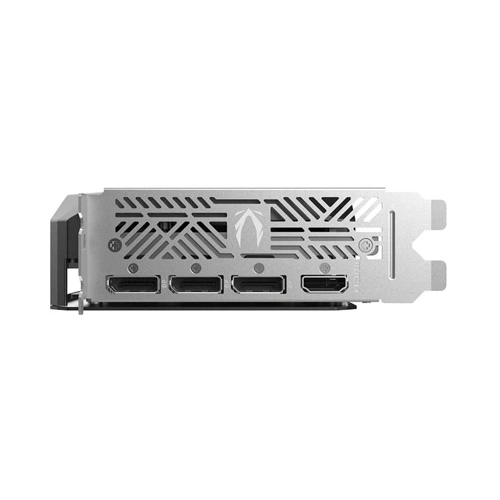

| DisplayPort | 3 × DisplayPort 2.1b UHBR20 |
| HDMI | 1 × HDMI 2.1b |
| Maximum Displays | 4 |
| RT Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| DLSS | DLSS 4 |
| Cooling | Dual Fan |
| Fan Size | 2 × 90mm BladeLink |
| Slot Size | 2-Slot |
| Dimensions | 220.5 × 120.25 × 41.6 mm |
| Maximum Power Consumption | 145W |
| Power Connector | 1 × 8-pin |
| Recommended PSU | 550W |
| Backplate | Metal |
| Color | Black |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Primary Use | 1080p / 1440p Gaming |
