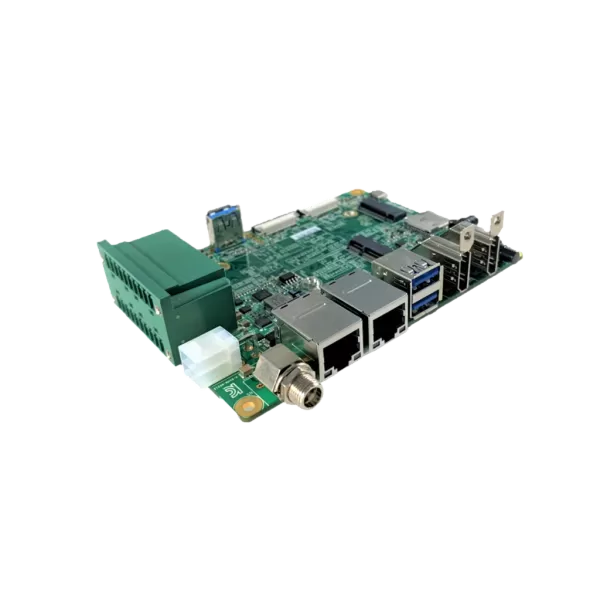

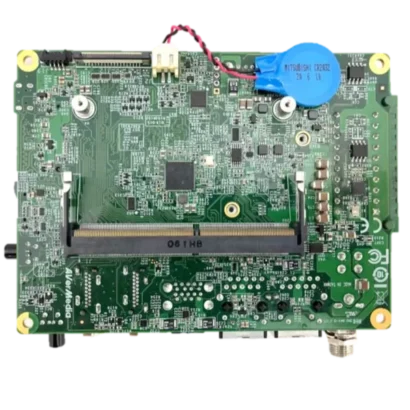

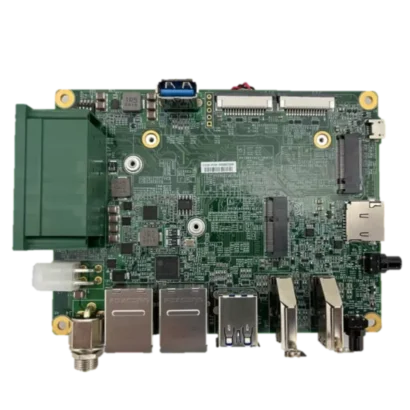

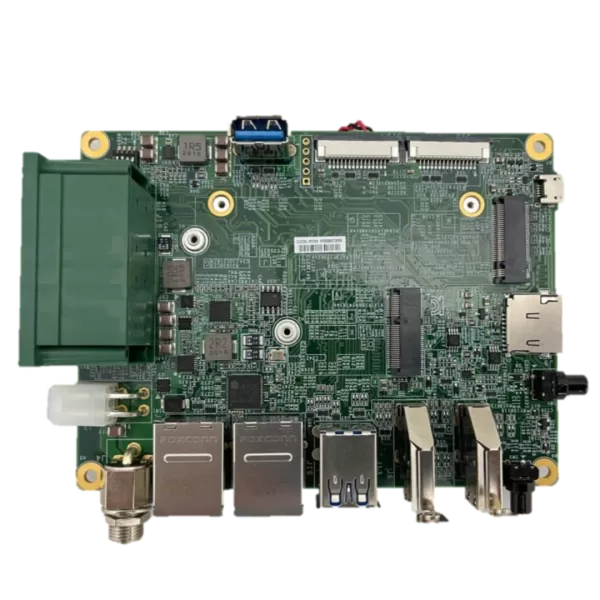

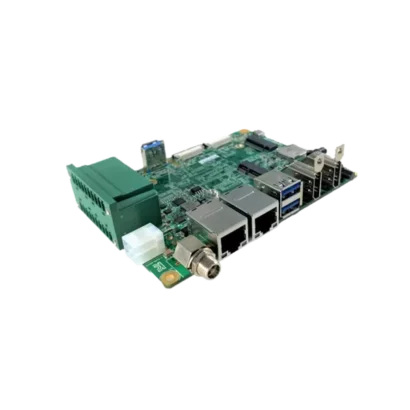

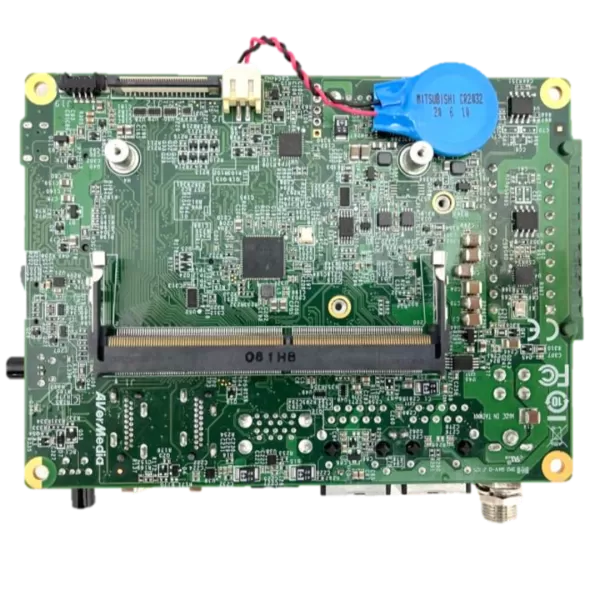

AVerMedia NX215 Carrier Board
Original price was: ₹25,999.00.₹17,999.00Current price is: ₹17,999.00.
The AVerMedia NX215 Carrier Board is a professional embedded AI carrier board designed for NVIDIA Jetson Xavier NX, Jetson TX2 NX, and Jetson Nano Version B01 modules, with support for newer Jetson Orin NX and Jetson Orin Nano platforms. Featuring dual Gigabit Ethernet, dual HDMI 2.0, USB 3.0, NVMe SSD expansion, Wi-Fi/Bluetooth support, multiple MIPI CSI-2 camera interfaces, and CAN Bus, it provides a robust platform for robotics, AI vision, industrial automation, and edge AI applications.
Available on backorder
AVerMedia NX215 Carrier Board
Features
- Supports Jetson Xavier NX, Jetson TX2 NX, and Jetson Nano Version B01 modules.
- Latest hardware revision also supports Jetson Orin NX and Jetson Orin Nano.
- Compatible with Jetson Orin Nano Super Mode.
- Dual Gigabit Ethernet ports for industrial networking.
- 2 × HDMI 2.0 outputs supporting up to 4K@60Hz (module dependent).
- 3 × USB 3.0 Type-A ports.
- 1 × M.2 Key M slot for NVMe SSD storage.
- 1 × M.2 Key E slot for Wi-Fi/Bluetooth expansion.
- 2 × 2-Lane and 1 × 4-Lane MIPI CSI-2 camera interfaces.
- 20-pin expansion header with UART, GPIO, I²C, and CAN Bus.
- Wide 12V–24V DC input suitable for embedded and industrial applications.
- Optional heatsink and cooling fan for continuous AI workloads.
Specifications
| Product Name | AVerMedia NX215 Carrier Board |
| Brand | AVerMedia |
| Product Type | Embedded AI Carrier Board |
| Compatible Modules | NVIDIA Jetson Xavier NX, Jetson TX2 NX, Jetson Nano (Version B01), Jetson Orin NX, Jetson Orin Nano (latest revision) |
| Module Connector | 260-pin SO-DIMM |
| Display Output | 2 × HDMI 2.0 (Up to 4K@60Hz; Nano/Orin NX support varies by module) |
| Ethernet | 2 × Gigabit Ethernet (RJ45) |
| USB Ports | 3 × USB 3.0 Type-A, 1 × Micro-USB 2.0 (Recovery) |
| Camera Interfaces | 2 × 2-Lane MIPI CSI-2, 1 × 4-Lane MIPI CSI-2 (4-lane not available for Orin NX/Orin Nano) |
| Storage | 1 × M.2 Key M 2280 (NVMe SSD), 1 × MicroSD Card Slot (MicroSD not available with Orin NX/Orin Nano) |
| Wireless Expansion | 1 × M.2 Key E 2230 for Wi-Fi/Bluetooth (Jetson Nano does not support Wi-Fi through this slot) |
| Expansion Header | 20-Pin Header (UART, I²C, GPIO, CAN Bus with Transceiver) |
| CAN Bus | 1 × CAN Interface |
| RTC | RTC Battery Support with Battery Life Monitoring |
| Cooling | Optional Heatsink with PWM Fan |
| Buttons | Power, Recovery |
| Power Input | 12V–24V DC Input (12V/5A Recommended) |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% RH @ 40°C (Non-Condensing) |
| Dimensions | 120 × 90 × 26.5 mm |
| Weight | 125 g |
| Certifications | CE, FCC, KC |
