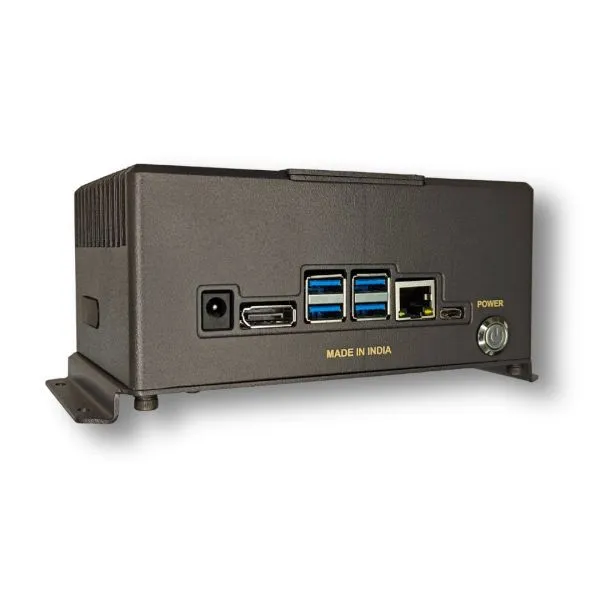

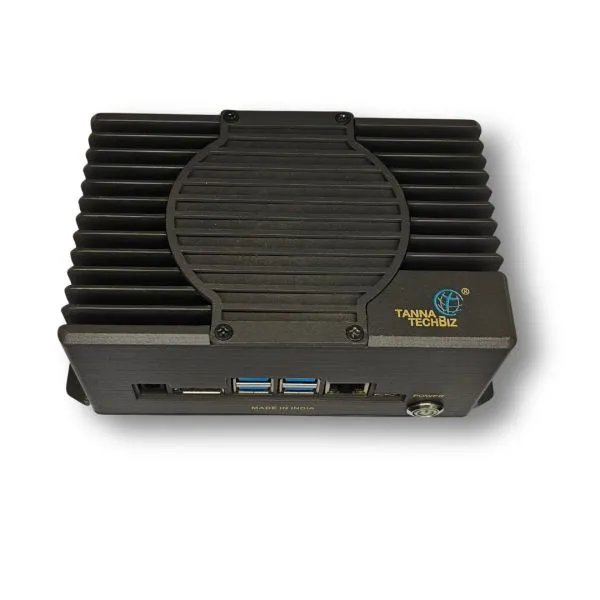

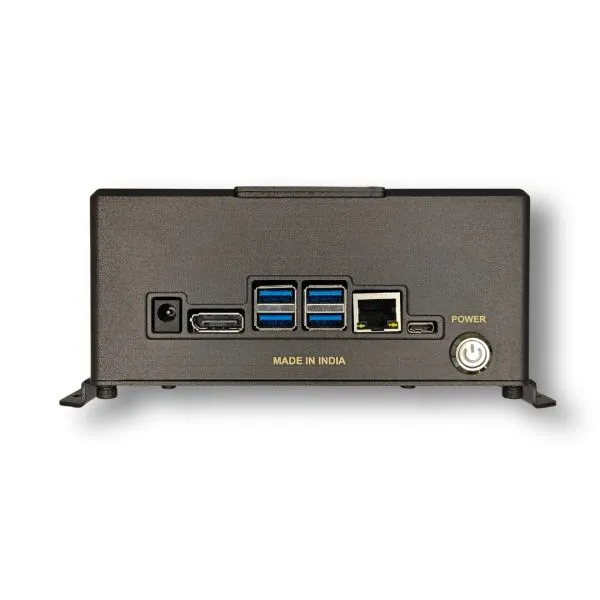

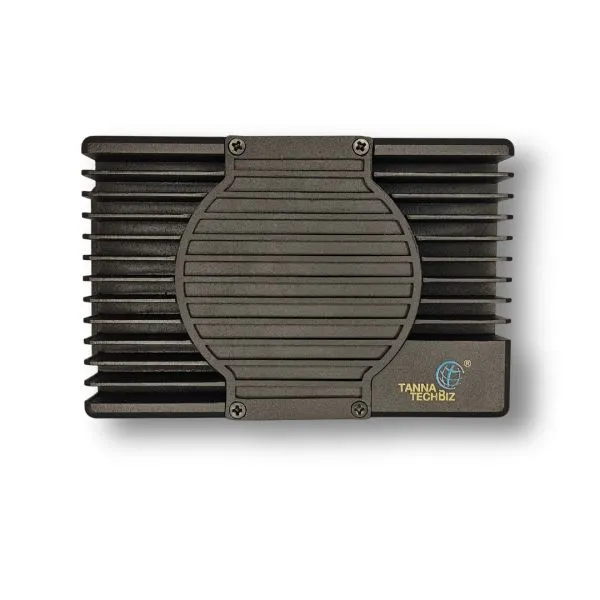

Tanna TechBiz Eagle 201 – Embedded AI System with Nvidia Jetson Orin Nano 8GB Module
Original price was: ₹189,999.00.₹98,999.00Current price is: ₹98,999.00.
The Tanna TechBiz Eagle 201 Embedded AI System with NVIDIA Jetson Orin Nano 8GB Module delivers up to 67 AI TOPS of performance with a 6-core Arm Cortex-A78AE CPU, 1024 CUDA Cores, 32 Tensor Cores, 8GB LPDDR5 memory, NVMe SSD support, Gigabit Ethernet, USB 3.0, and dual MIPI CSI camera interfaces. It is ideal for edge AI, robotics, machine vision, industrial automation, and generative AI deployments.
Available on backorder
Tanna TechBiz Eagle 201 – Embedded AI System with Nvidia Jetson Orin Nano 8GB Module
Features
- NVIDIA Jetson Orin Nano 8GB AI module.
- Up to 67 AI TOPS for edge AI inference.
- 1024 CUDA Cores and 32 Tensor Cores.
- 6-core Arm Cortex-A78AE CPU.
- High-speed 8GB LPDDR5 memory with 102 GB/s bandwidth.
- 2280 NVMe SSD support via M.2 Key M.
- 4 × USB 3.0, USB Type-C, and Gigabit Ethernet.
- Dual MIPI CSI camera interfaces for AI vision applications.
- DisplayPort output for external displays.
- Supports JetPack SDK, CUDA, TensorRT, DeepStream, and Isaac ROS.
- Suitable for AI video analytics, machine vision, autonomous mobile robots (AMRs), generative AI, and smart industrial systems.
Specifications
| Product Name | Tanna TechBiz Eagle 201 Embedded AI System |
| AI Module | NVIDIA Jetson Orin Nano 8GB |
| Brand | Tanna TechBiz |
| Product Type | Embedded AI Edge Computing System |
| AI Performance | Up to 67 TOPS (Sparse) / 33 TOPS (Dense) |
| GPU | NVIDIA Ampere GPU with 1024 CUDA Cores and 32 Tensor Cores |
| GPU Frequency | Up to 1020 MHz |
| CPU | 6-Core Arm Cortex-A78AE @ 1.7 GHz |
| Memory | 8GB LPDDR5 |
| Memory Bandwidth | 102 GB/s |
| Storage | 1 × M.2 Key M (2280 NVMe SSD Support) |
| Ethernet | 1 × Gigabit Ethernet (10/100/1000 Mbps) |
| USB | 4 × USB 3.0 Type-A, 1 × USB Type-C (Data Only) |
| Camera | 2 × MIPI CSI 2-Lane 22-Pin Connectors |
| Display | 1 × DisplayPort |
| Expansion | 1 × 40-Pin GPIO Header |
| CAN Bus | 1 × CAN |
| Fan Header | 1 × 4-Pin PWM Fan Header |
| RTC | 2-Pin RTC Connector |
| Wireless | M.2 Key E Slot (Wi-Fi/Bluetooth Module Optional) |
| Power Input | DC 9V–19V (Max 4.74A) |
| Operating Temperature | 0°C to 45°C |
| Operating System | NVIDIA JetPack SDK (Ubuntu Linux) |
| AI Frameworks | CUDA, TensorRT, cuDNN, DeepStream, Isaac ROS, OpenCV, PyTorch, TensorFlow |
