FSP 500W 1U FLEX POWER SUPPLY
Original price was: ₹19,099.00.₹11,359.00Current price is: ₹11,359.00.
- Compact 500W 1U Flex ATX power supply for space-constrained systems.
- 80 PLUS Gold efficiency for lower power consumption.
- Designed specifically for industrial PCs and 1U server chassis.
- Universal 90–264VAC input for global deployment.
- High reliability with 100K-hour MTBF.
- Advanced protection against overcurrent, overvoltage, overheating, and short circuits.
- Low ripple and noise ensure stable operation for sensitive electronics.
- Built for continuous 24/7 industrial operation.
- Fully compliant with international safety and EMC standards

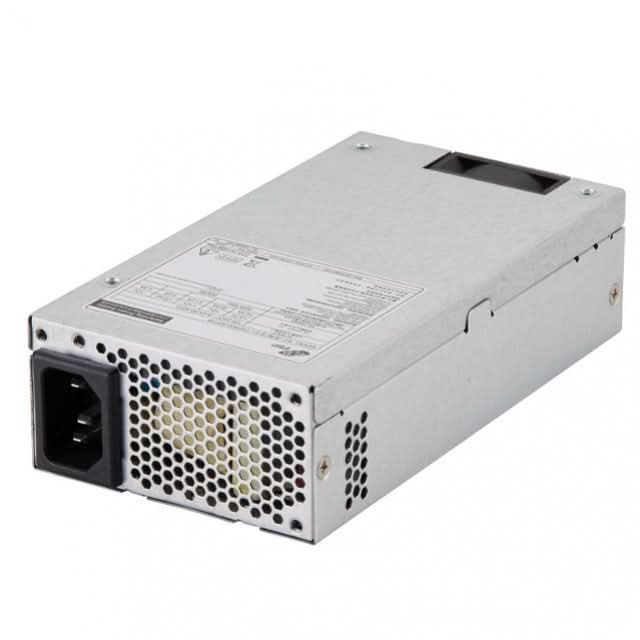

FSP 500W 1U Flex Power Supply
The FSP 500W 1U Flex Power Supply (FSP500-50FDB) is a compact, industrial-grade switching power supply designed for 1U server chassis, industrial PCs (IPC), embedded systems, storage platforms, and communication equipment. Delivering 500W of continuous output power, it features 80 PLUS Gold certification, providing high energy efficiency while minimizing heat generation and operating costs.
Its Flex ATX (1U) form factor makes it ideal for space-constrained systems without compromising performance or reliability. Equipped with a 40 mm internal cooling fan, low ripple and noise, and comprehensive protection features, the FSP500-50FDB is engineered for continuous 24/7 operation in demanding industrial and enterprise environments. The power supply complies with the latest international safety and EMC standards, making it suitable for worldwide deployment.
Key Features
- 500W continuous output power for industrial and embedded applications.
- 80 PLUS Gold certified for high energy efficiency.
- Compact 1U Flex ATX form factor for space-saving installations.
- Universal AC input (90–264VAC) for worldwide compatibility.
- Internal 40 mm cooling fan for efficient thermal management.
- Low ripple and noise for stable system performance.
- Supports Over Current Protection (OCP).
- Supports Over Voltage Protection (OVP).
- Supports Over Temperature Protection (OTP).
- Short Circuit Protection (SCP) on all outputs.
- Resettable power shutdown for enhanced system safety.
- 100% Hi-Pot tested and 100% burn-in tested at high ambient temperatures.
- Designed for operation at altitudes up to 5,000 meters.
- MTBF of 100,000 hours at 25°C.
Specifications
| Specification | Details |
|---|---|
| Brand | FSP |
| Model | FSP500-50FDB |
| Form Factor | 1U Flex ATX |
| Rated Output Power | 500W Continuous |
| Efficiency | 80 PLUS Gold |
| Input Voltage | 90–264 VAC |
| Input Frequency | 47–63 Hz |
| Input Current | 6A @115VAC / 3A @230VAC |
| Main Outputs | +3.3V, +5V, +12V, -12V, +5VSB |
| +12V Output | 41A |
| Combined +3.3V & +5V Output | 90W Maximum |
| Dimensions | 150 × 81.5 × 40.5 mm |
| Cooling | Internal 40 mm Fan |
| Operating Temperature | 0°C to 50°C |
| Operating Altitude | Up to 5,000 meters |
| MTBF | 100,000 Hours |
| Protection Features | OCP, OVP, OTP, SCP |
| Safety Standards | CB 62368-1, CB 60950-1, CE, FCC, TÜV, CCC |
Applications / Uses
The FSP 500W 1U Flex Power Supply is ideal for powering:
- 1U rack-mounted servers
- Industrial PCs (IPC)
- Embedded computing systems
- Storage systems (NAS/SAN)
- Network security appliances
- Telecommunications equipment
- Automation and control systems
- Compact workstations
- Medical and laboratory equipment
- Small form factor enterprise computing systems requiring reliable, continuous power delivery.
