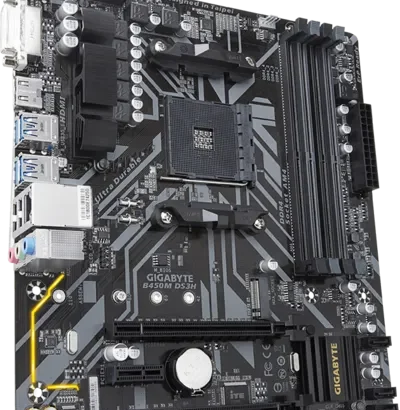

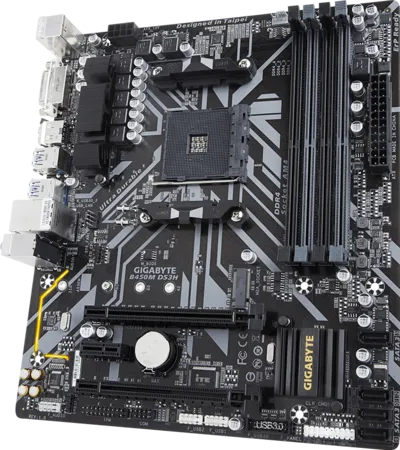

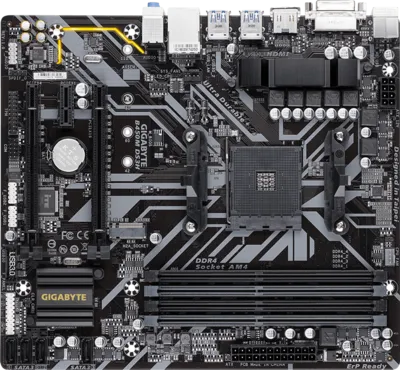

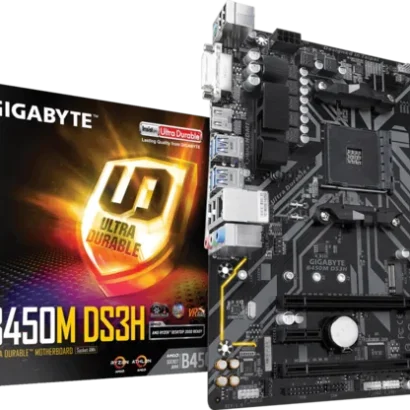

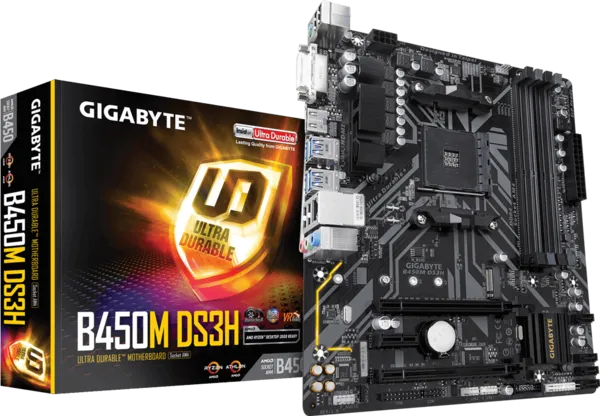

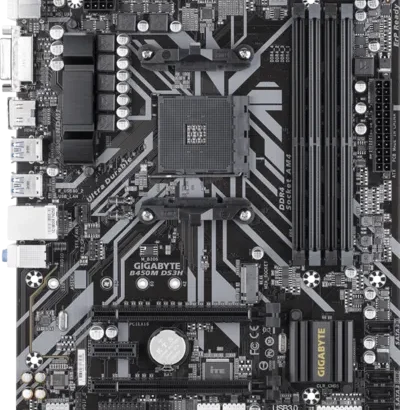

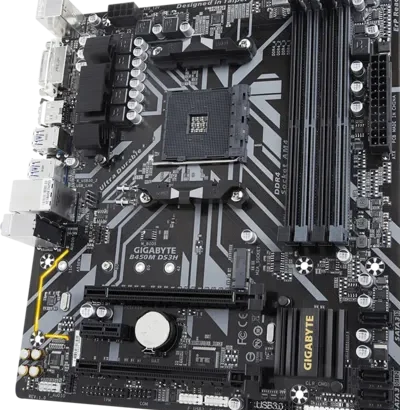

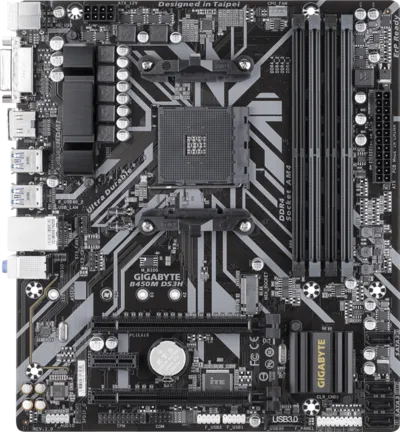

Gigabyte B450M DS3H
Original price was: ₹11,900.00.₹7,199.00Current price is: ₹7,199.00.
-
Chipset & Socket: AMD B450 chipset with AM4 socket, compatible with a wide range of Ryzen processors (e.g., Ryzen 1000, 2000, 3000, and some 5000 series)
-
Memory: 4× DDR4 DIMM slots supporting up to 128 GB DDR4 in dual‑channel configuration
-
Expansion: PCIe 3.0 x16 slot for discrete GPUs and additional PCIe slots for extra cards
-
Storage: 1× M.2 slot (NVMe/SATA) + 4× SATA 6 Gb/s ports for SSDs and HDDs
-
Networking: Gigabit LAN for reliable wired connectivity
-
Display Outputs: HDMI + D‑Sub ports (for APUs with integrated graphics)
-
Audio: High‑definition audio with Realtek codec for clear sound
-
Form Factor: Micro‑ATX, ideal for budget gaming and general‑purpose PC builds

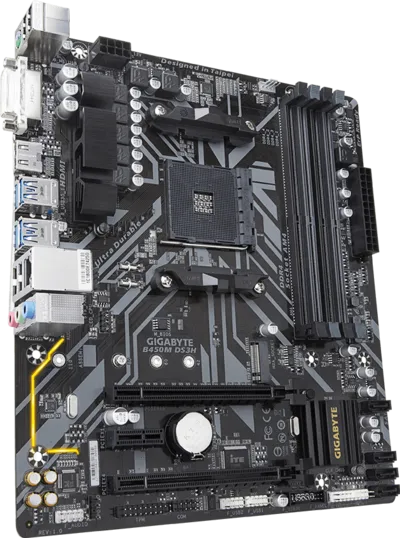

Gigabyte 450M DS3H
Gigabyte 450M DS3H
AMD B450 Ultra Durable Motherboard with Realtek® GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, 7-colors RGB LED Strips Support, Anti-Sulfur Resistor, CEC 2019 ready
Key Features
- Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- HDMI, DVI-D Ports for Multiple Display
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- RGB Fusion supports RGB LED Strips in 7-Colors
- Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- CEC 2019 Ready, Save Power with a Simple Click
CPU
- AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
(Please refer “CPU Support List” for more information.)
Chipset
- AMD B450
Memory
- 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
- Dual channel memory architecture
- Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.) - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
(Note) Actual support may vary by CPU.
Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
* Actual support may vary by CPU.
* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. - 4 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, and RAID 10
* Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
