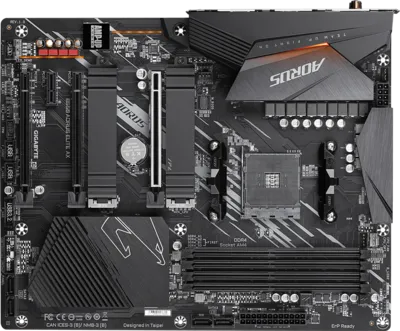

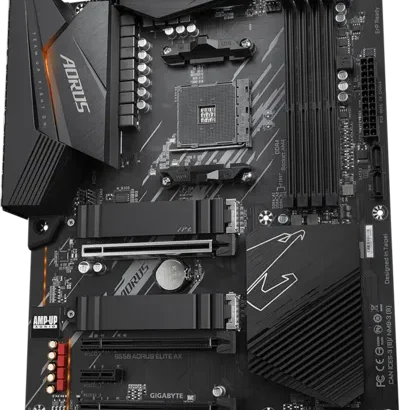

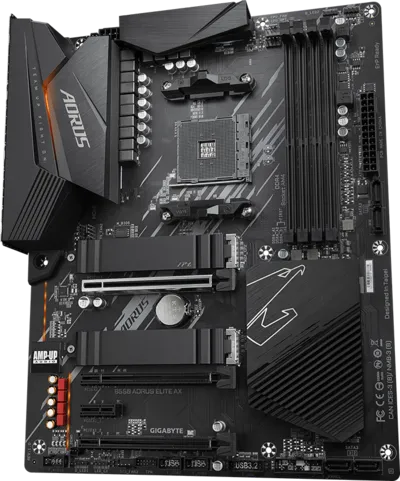

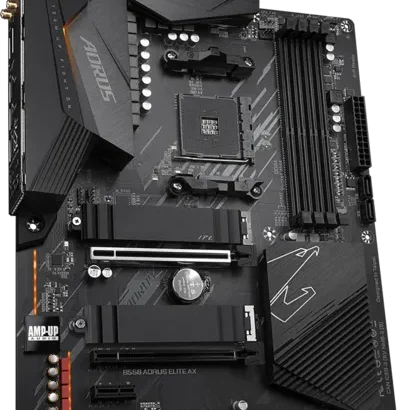

Gigabyte B550 AORUS ELITE AX
Original price was: ₹21,922.00.₹15,549.00Current price is: ₹15,549.00.
-
Chipset: AMD B550 ATX motherboard designed for the AM4 platform
-
CPU Support: Compatible with AMD Ryzen 3000, 4000 G-Series, and 5000 series processors
-
Memory: DDR4 dual-channel RAM support up to 128GB with speeds up to 4733 MHz (OC)
-
Expansion: PCIe 4.0 x16 slot for high-performance graphics cards
-
Storage: Dual M.2 slots + 4× SATA ports for NVMe SSD and HDD storage
-
Networking: Built-in Wi-Fi 6, Bluetooth 5.0, and 2.5GbE LAN for fast connectivity
-
Audio: Realtek ALC1200 7.1-channel HD audio for immersive sound
-
Power Design: 12+2 phase digital VRM for stable power delivery during gaming and heavy workloads
-
Cooling & Features: Advanced thermal design, RGB Fusion 2.0, and Q-Flash Plus for BIOS updates without CPU installed
-
Form Factor: ATX, ideal for full-size gaming PC builds
Out of stock
Gigabyte B550 AORUS ELITE AX
Gigabyte B550 AORUS ELITE AX
AMD B550 AORUS Motherboard with True 12+2 Phases Digital VRM, Enlarged Surface Heatsinks, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, Intel® WiFi 6 802.11ax, 2.5GbE LAN, RGB FUSION 2.0, Q-Flash Plus
Key Features
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series/ Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- True 12+2 Phases Digital VRM Solution with 50A DrMOS
- Advanced Thermal Design with Enlarged Surface Heatsinks
- Ultra Durable™ PCIe 4.0 x16 Slot
- Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC1200 and WIMA Capacitors
- Blazing Fast 2.5GbE LAN with Bandwidth Management
- Rear DisplayPort & HDMI Support
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Pre-installed IO Shield for Easy and Quick Installation.
CPU
- AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors
(Please refer “CPU Support List” for more information.)
Chipset
- AMD B550
Memory
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer “Memory Support List” for more information.)
Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
* Actual support may vary by AMD CPU’s specification.
– AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
– Supporting PCIe 3.0 x2 mode - 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
– Supporting PCIe 3.0 x1 mode - 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
– Supporting PCIe 3.0 x1 mode
Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs - 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– Supporting SATA and PCIe 3.0 x4/x2 SSDs - 4 x SATA 6Gb/s connectors, integrated in the Chipset:
– Support for RAID 0, RAID 1, and RAID 10.
