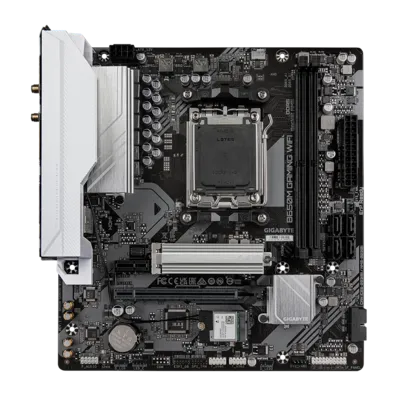

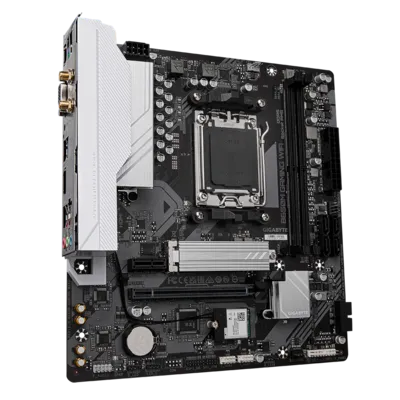

Gigabyte B650M GAMING WIFI
Original price was: ₹16,788.00.₹9,589.00Current price is: ₹9,589.00.
- Supports AMD Ryzen 7000 series processors (AM5 socket)
- Powered by B650 chipset for reliable everyday gaming performance
- Micro-ATX form factor – compact and budget-friendly build option
- Supports DDR5 memory with enhanced performance and stability
- Built-in Wi-Fi 6E & 2.5G LAN for fast networking
- PCIe 4.0 support for GPU and high-speed storage devices
- Includes dual M.2 slots with heatsinks (M.2 Shield Frozr) for SSD cooling
- Features extended heatsink & thermal pads for improved cooling
- Durable design with Core Boost and Steel Armor for stability
- DIY-friendly features like easy M.2 installation and solid build quality
Gigabyte B650M GAMING WIFI
Gigabyte B650M GAMING WIFI
Key Features
- AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：HDMI , D-sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card.
SPECIFICATIONS
CPU
AMD Socket AM5, support for:
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
Chipset
AMD B650
Memory
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)
– WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
– BLUETOOTH 4.2
– Support for 11ac wireless standard
(Actual data rate may vary depending on environment and equipment.)
– WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
– BLUETOOTH 4.2
– Support for 11ac wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
– AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
– 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
– AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
– AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
