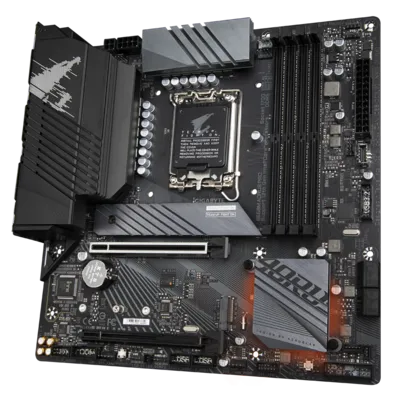

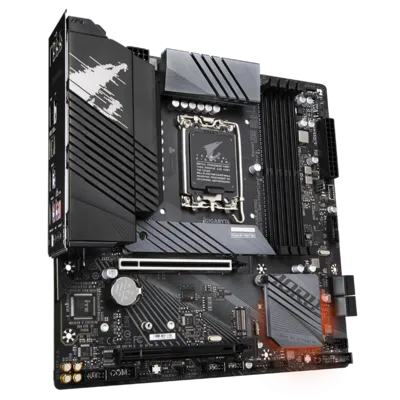

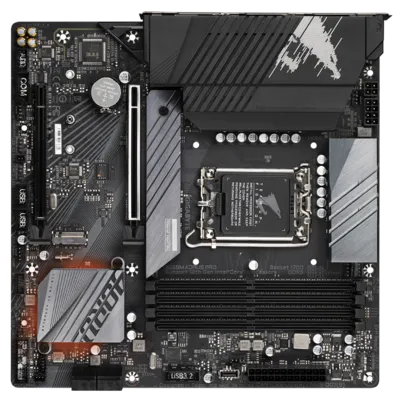

Gigabyte B660M AORUS PRO
Original price was: ₹29,400.00.₹17,388.00Current price is: ₹17,388.00.
- Based on the Intel® B660 chipset with LGA1700 socket, supporting Intel® 12th, 13th, and 14th Gen Core™, Pentium® Gold, and Celeron® processors for mainstream gaming and productivity.
- Robust 12+1+1 phase digital VRM design with 60A DrMOS and premium components for stable CPU power delivery.
- DDR5 memory support across 4 DIMM slots (up to 256 GB) with XMP profiles for high‑speed system memory performance.
- Dual PCIe 4.0 x4 M.2 slots with thermal guards plus SATA ports for high‑speed NVMe SSDs and HDDs.
- Intel® 2.5 GbE LAN for fast wired network connectivity.
- Rear USB 3.2 Gen2×2 Type‑C and USB‑A ports for high‑speed external connectivity.
- Integrated I/O shield and Q‑Flash Plus for easy installation and BIOS updates without CPU/memory installed.
- RGB FUSION 2.0 support with multi‑zone lighting and LED headers for custom RGB builds.
- Smart Fan 6 support with multiple sensors and hybrid fan headers for flexible cooling control.
Out of stock
Gigabyte B660M AORUS PRO
Gigabyte B660M AORUS PRO
Key Feature
Intel® B660 AORUS Motherboard with 12*+1+1 Twin Hybrid Phases Digital VRM Design , DDR5 MEMORY Design, Fully Covered Thermal Design , 2 x PCIe 4.0 M.2 with Thermal Guard, Intel® 2.5GbE LAN, Rear USB 3.2 Gen 2×2 Type-C®, RGB FUSION 2.0, Q-Flash Plus
- Supports 12th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
- 12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
- DDR5 MEMORY Design with Shielded Memory Routing
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
- SuperSpeed USB 3.2 Gen 2×2 Type-C® delivers up to 20Gb/s transfer speeds
- Pre-installed IO Shield for easy and quick installation
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
CPU
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
- L3 cache varies with CPU
* Please refer to “CPU Support List” for more information.
Chipset
- Intel® B660 Express Chipset
Memory
- Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.)
Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.) - 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.
USB
Chipset:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 1 x system fan/water cooling pump header
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 2 x Thunderbolt™ add-in card connectors
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x reset button
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper
Back Panel Connectors
- 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 4 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x HDMI port
- 1 x DisplayPort
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
I/O Controller
- iTE® I/O Controller Chip
H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
RGB Fusion
Smart Backup
System Information Viewer - Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
