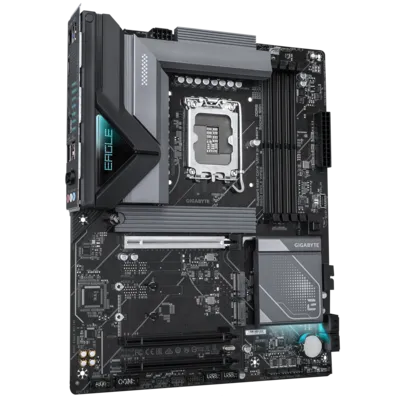

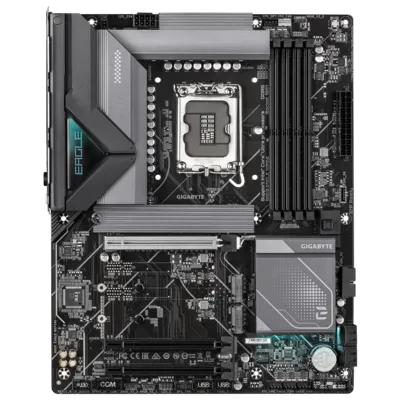

Gigabyte B860 EAGLE WIFI6E
Original price was: ₹27,399.00.₹18,559.00Current price is: ₹18,559.00.
- ATX motherboard powered by the Intel B860 chipset
- Supports latest Intel Core Ultra (Series 2) processors (LGA1851 socket)
- DDR5 memory support for high-speed performance
- Built-in Wi-Fi 6E and Bluetooth 5.3
- 2.5GbE LAN for fast wired networking
- Multiple M.2 slots (including PCIe 5.0 support) for high-speed SSDs
- PCIe 5.0 x16 slot for next-gen graphics cards
Out of stock
Gigabyte B860 EAGLE WIFI6E
Gigabyte B860 EAGLE WIFI6E
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E
- Extended Connectivity : HDMI, DisplayPort
CPU
LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU
(Go to GIGABYTE’s website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel ® B860 Express Chipset
Memory
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Expansion Slots
CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
– 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_3/4)
Storage Interface
CPU:
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0×4/x2 SSD support) (M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2P_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0×4/x2 SSD support) (M2A_CPU)
Chipset:
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2P_SB)
– 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
– 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
– 2 x USB 3.2 Gen 1 ports available through the internal USB headers
– 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
– 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
– 2 x USB 3.2 Gen 1 ports available through the internal USB headers
– 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
– 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.
I/O Controller
iTE®I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
