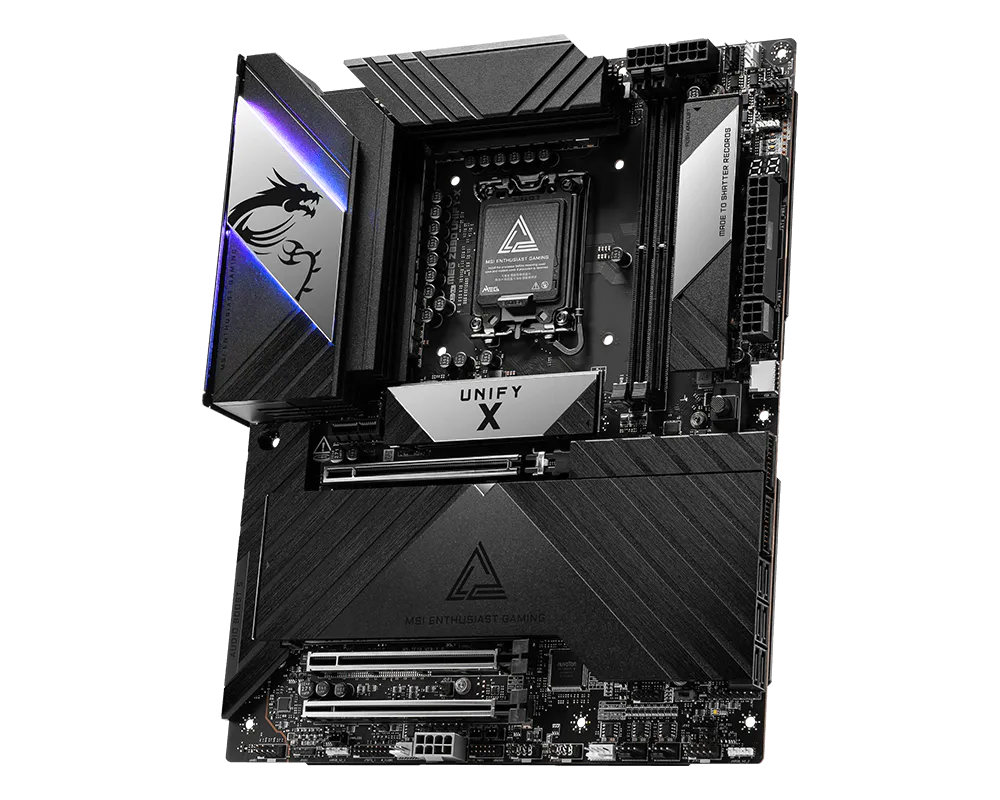

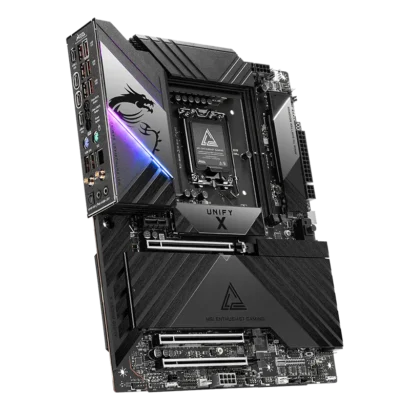

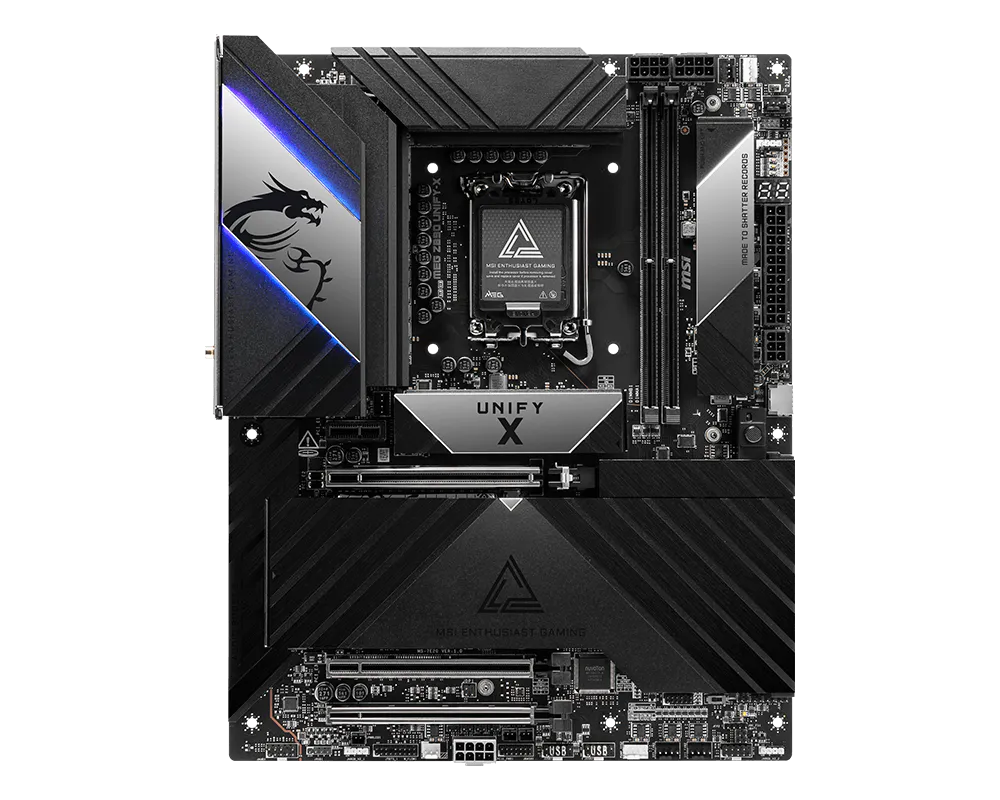

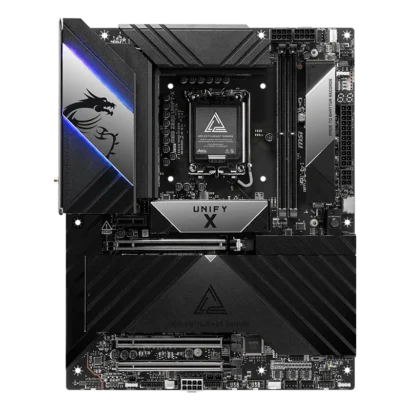

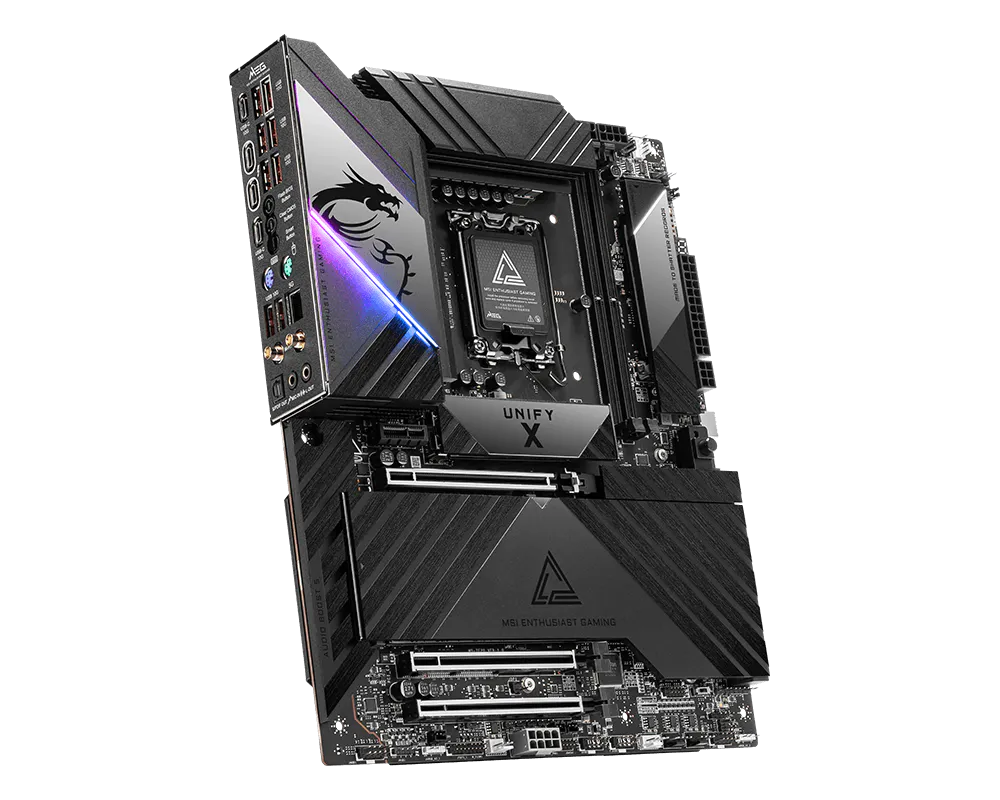

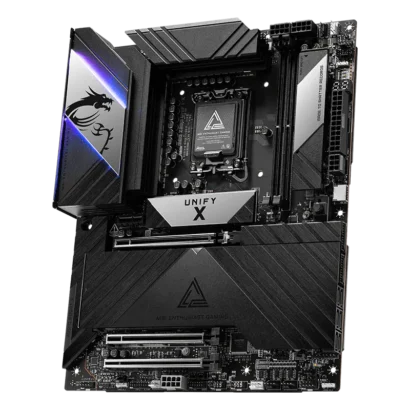

MEG Z890 UNIFY-X
Original price was: ₹77,290.00.₹72,159.00Current price is: ₹72,159.00.
- Chipset: Intel Z890
- Socket: LGA 1851 (Intel Core Ultra Series 2)
- Form Factor: ATX
- Memory Support: DDR5 (2 DIMM, up to 9600+ MT/s OC)
- Expansion: PCIe 5.0 x16
- Storage: PCIe Gen5 M.2 support
- Networking: Wi-Fi 7 + 5G LAN
- USB: Thunderbolt 4, USB 3.2 Gen2
- Audio: High-end onboard audio solution
MEG Z890 UNIFY-X
MEG Z890 UNIFY-X
The V power makes the MEG Z890 UNIFY-X motherboard defeating all challenges among Z890 motherboards. Employing AI server-grade TLVR inductor to enhance overall efficicy and provide the extreme performance. It also equips all the latest technology such as DDR5, PCIe 5.0, Killer Wi-fi 7 and 5G LAN, Thunderbolt 4, and all the EZ DIY features and Supplemental PCIe Power , ready for all challenges of gaming and AI.
Key Features
- Extreme 2-DIMM Overclocking Design
Unlike standard boards, the UNIFY-X uses a 2-DIMM layout to achieve ultra-high DDR5 memory speeds (up to 9600+ MT/s OC), making it ideal for record-breaking performance. - AI Server-Grade TLVR Power Design
Industry-first TLVR (Trans-Inductor Voltage Regulator) improves voltage stability and efficiency during sudden load changes—perfect for heavy workloads and overclocking. - Extreme Power Delivery (20+ Phases)
High-end 20+ phase VRM design ensures stable power for flagship Intel Core Ultra CPUs under extreme conditions. - Next-Gen Connectivity
- PCIe 5.0 for GPUs and storage
- Thunderbolt 4 support
- Wi-Fi 7 + 5G LAN for ultra-fast networking
- OC Engine & Advanced BIOS Controls
Dedicated OC Engine clock generator allows precise base clock tuning for advanced overclocking control and stability. - Premium Thermal Design (Frozr Heatsinks)
Enlarged heatsinks and advanced cooling solutions keep VRMs and SSDs cool during heavy loads. - EZ DIY & Builder-Friendly Features
Includes tool-less installation features, reinforced PCIe slots, and simplified cable management for easier builds. - Sleek Stealth Aesthetic
Minimalist blacked-out design with no RGB, perfect for clean, professional builds.
SPECIFICATIONS
| Chipset | INTEL Z890 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support 9600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel® POR Speed and JEDEC Speed
|

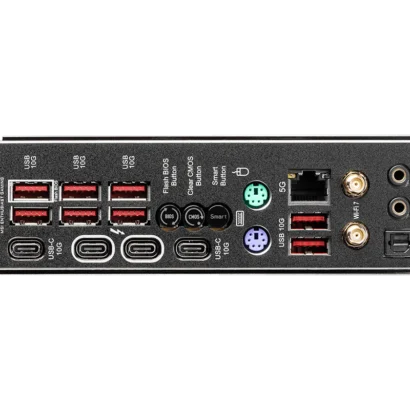

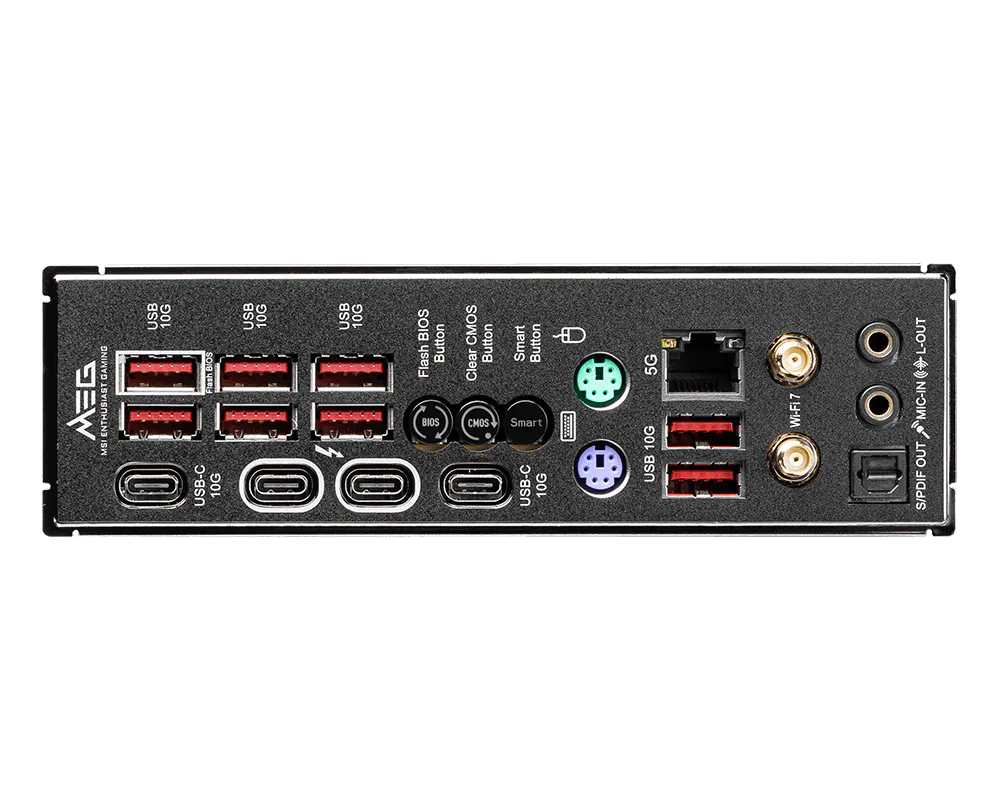

| Onboard Graphics | 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
|
| Slot | 3x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
