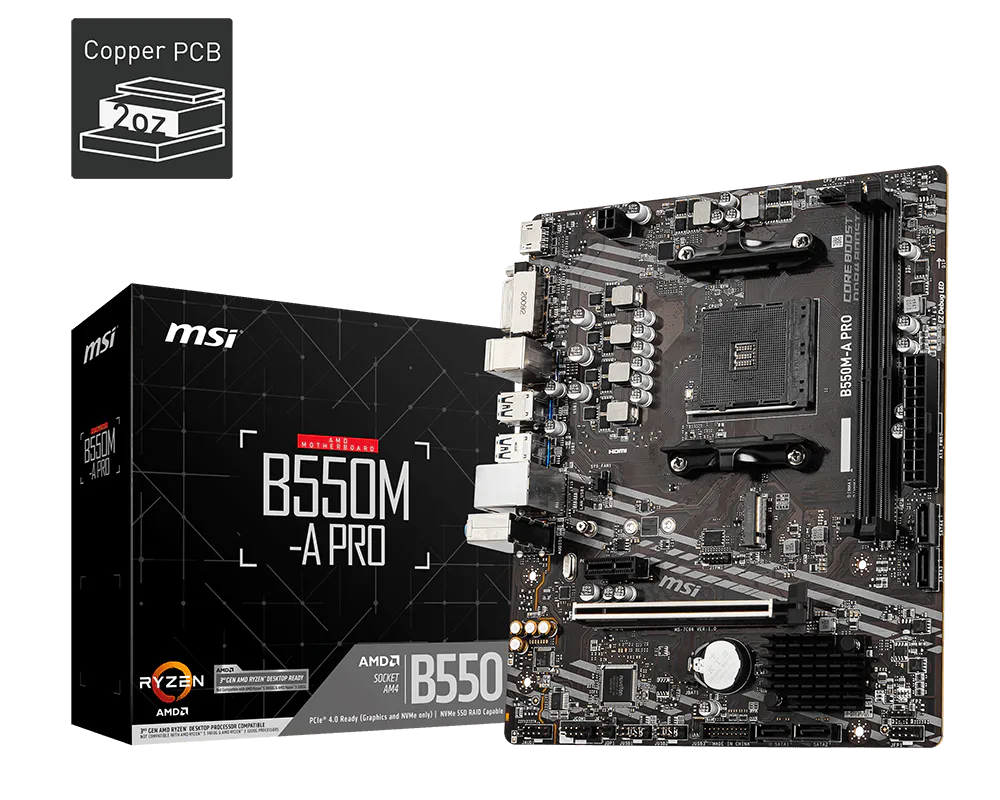

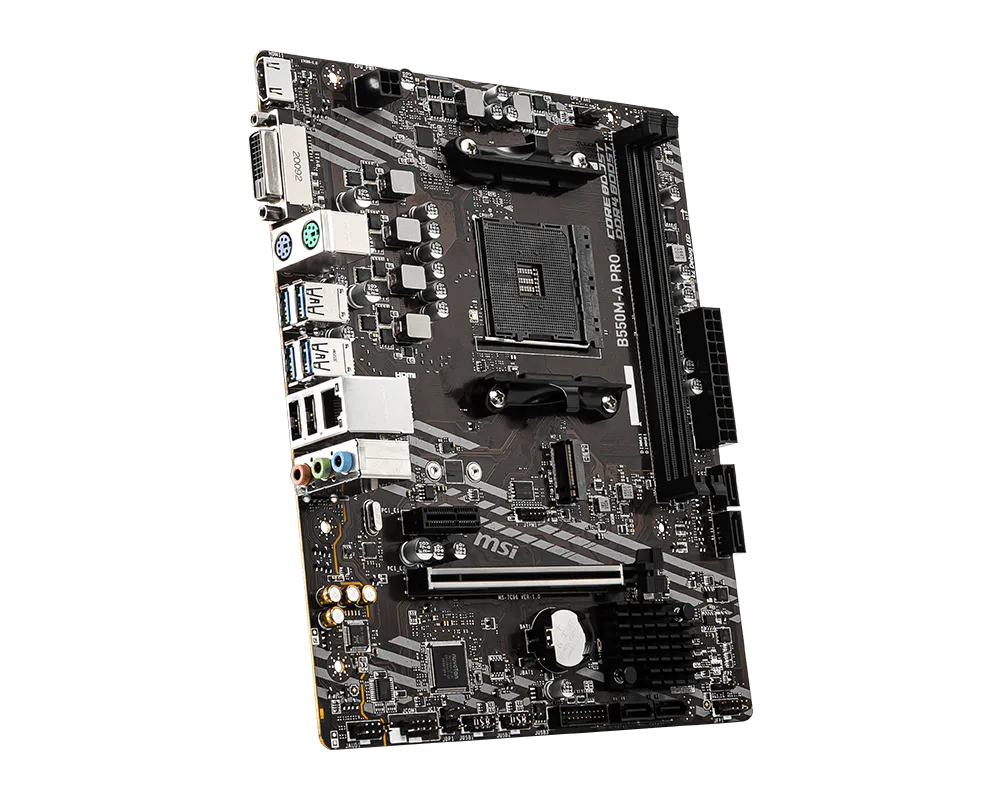

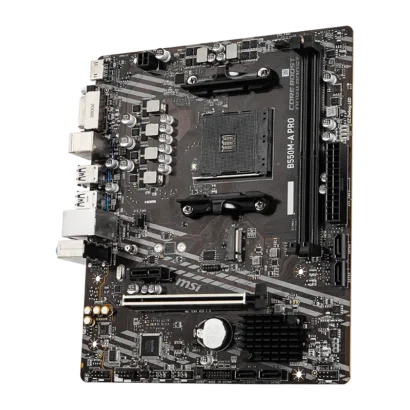

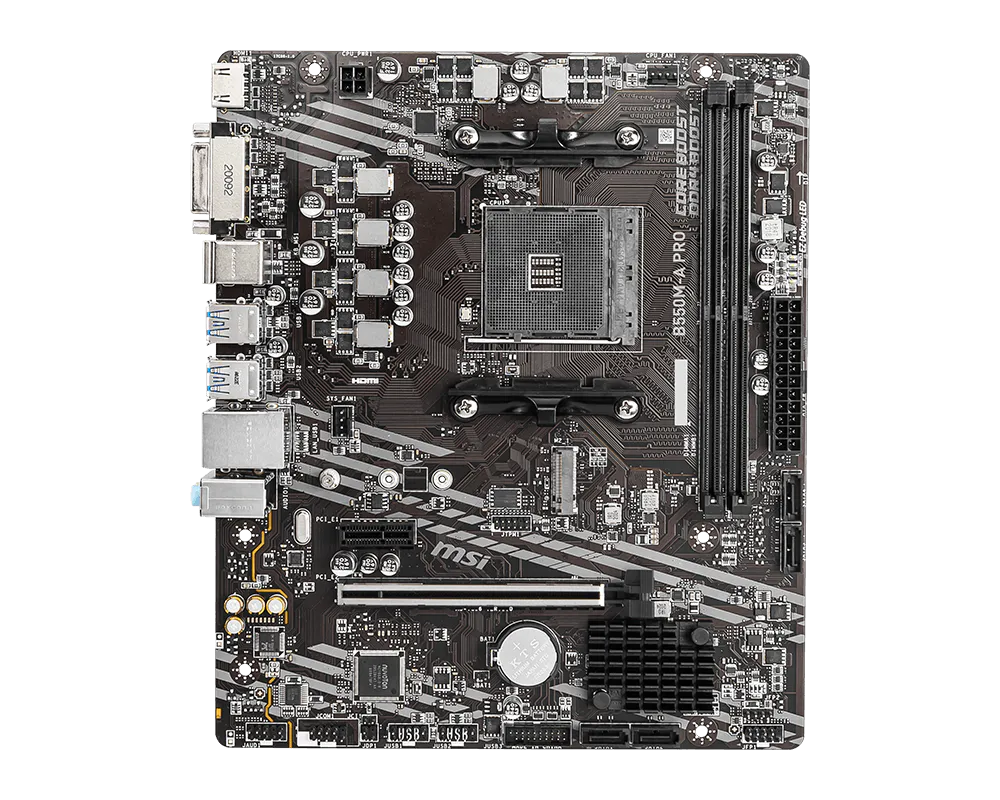

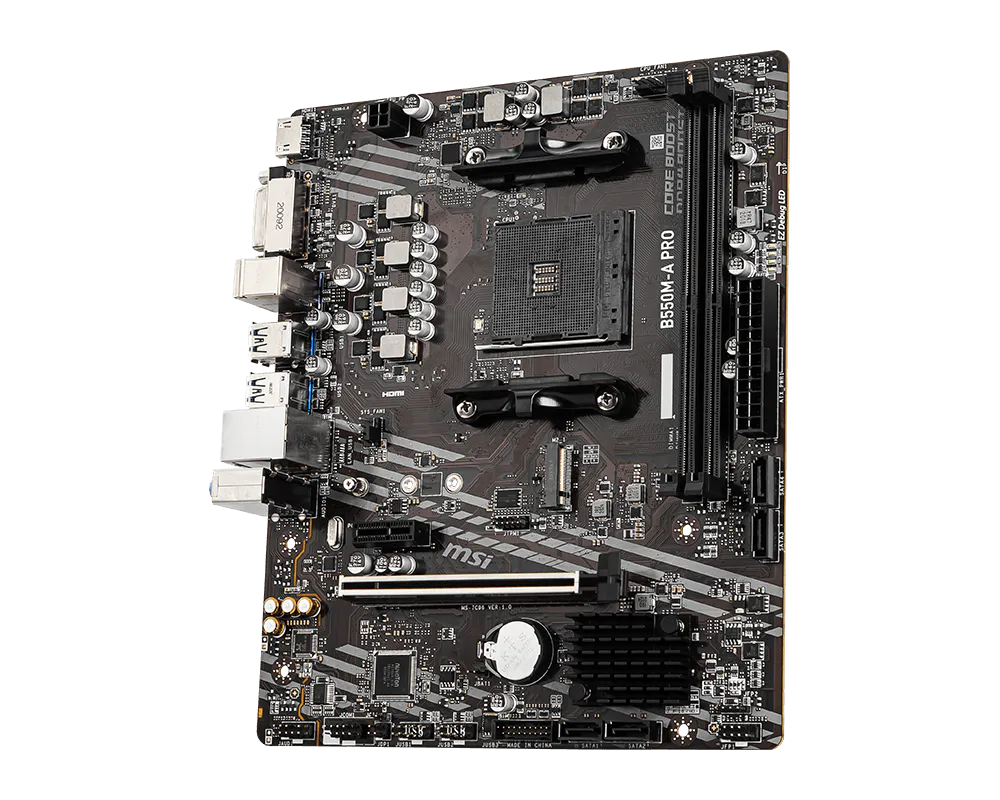

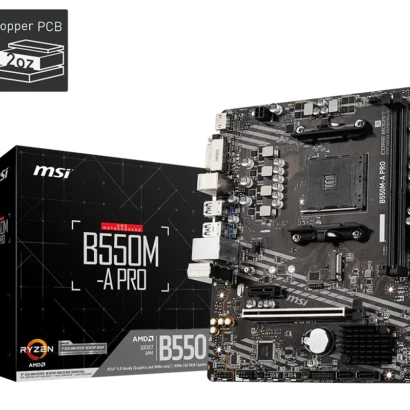

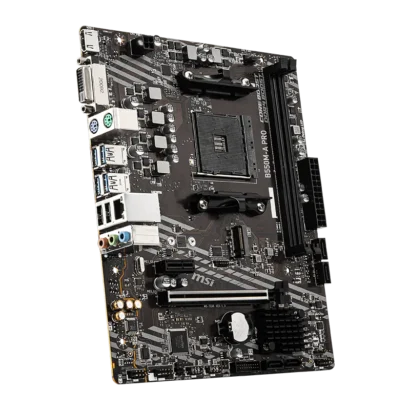

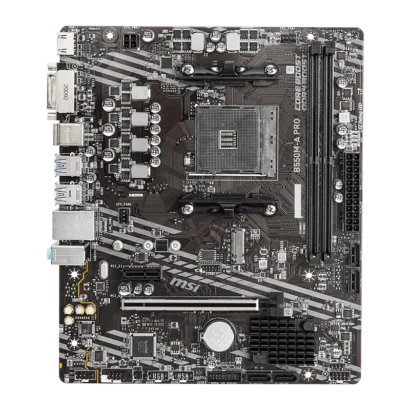

MSI B550M-A PRO

MSI B550M-A PRO

The MSI B550M-A PRO is a budget-to-midrange Micro-ATX motherboard built for AMD’s AM4 platform, supporting Ryzen 3000, 4000G, and 5000 series processors. It uses the B550 chipset, which is a major upgrade over A520—offering PCIe 4.0 support and CPU overclocking.

This motherboard is ideal for users who want a balance between price and performance, making it a strong choice for budget gaming PCs and mid-range builds.

Key Features

⚙️ CPU & Platform Support

• Socket: AM4
• Chipset: AMD B550
• Supports Ryzen 3000 / 4000G / 5000 CPUs
• ✅ CPU overclocking supported (unlike A520)

🧠 Memory (RAM)

• 2× DDR4 slots (dual-channel)
• Up to 64GB RAM
• Supports speeds up to 4600 MHz (OC)

🎮 Expansion & GPU Support

• 1× PCIe 4.0 x16 slot (for GPU)
• 1× PCIe x1 slot
  👉 Faster GPU bandwidth compared to A520 boards

💾 Storage Options

• 1× M.2 slot (PCIe Gen4 x4)
• 4× SATA ports

                                          SPECIFICATIONS

• Socket                                        – AM4
• Chipset                                       – B550
• Memory Channel                      – Dual
• DIMM Slots                                 – DDR4 * 2
• Max Memory (GB)                     – 64gb 4600 MHz
• PCI-E x16                                    – 1
• PCI-E Gen                                   – Gen 3/Gen 4
• PCI-E x1                                       – 1
• SATAIII                                          – 4
• M.2 Slot                                        – 1
