MSI B860 GAMING PLUS WIFI
Original price was: ₹22,099.00.₹20,939.00Current price is: ₹20,939.00.
- ✅ ATX motherboard – ideal for full-size builds
- ✅ Excellent value with PCIe 5.0 + DDR5 + Wi-Fi 7
- ✅ Strong VRM similar to higher-end boards (great for gaming CPUs)
- ✅ Triple M.2 slots for flexible storage
- ✅ Solid connectivity: 5G LAN + Thunderbolt 4
- ✅ Best suited for mid-to-high-end gaming PCs on a budget
MSI B860 GAMING PLUS WIFI
MSI B860 GAMING PLUS WIFI

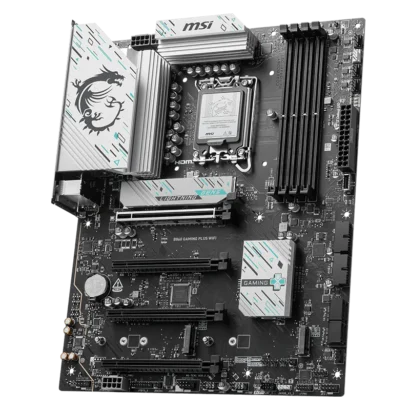

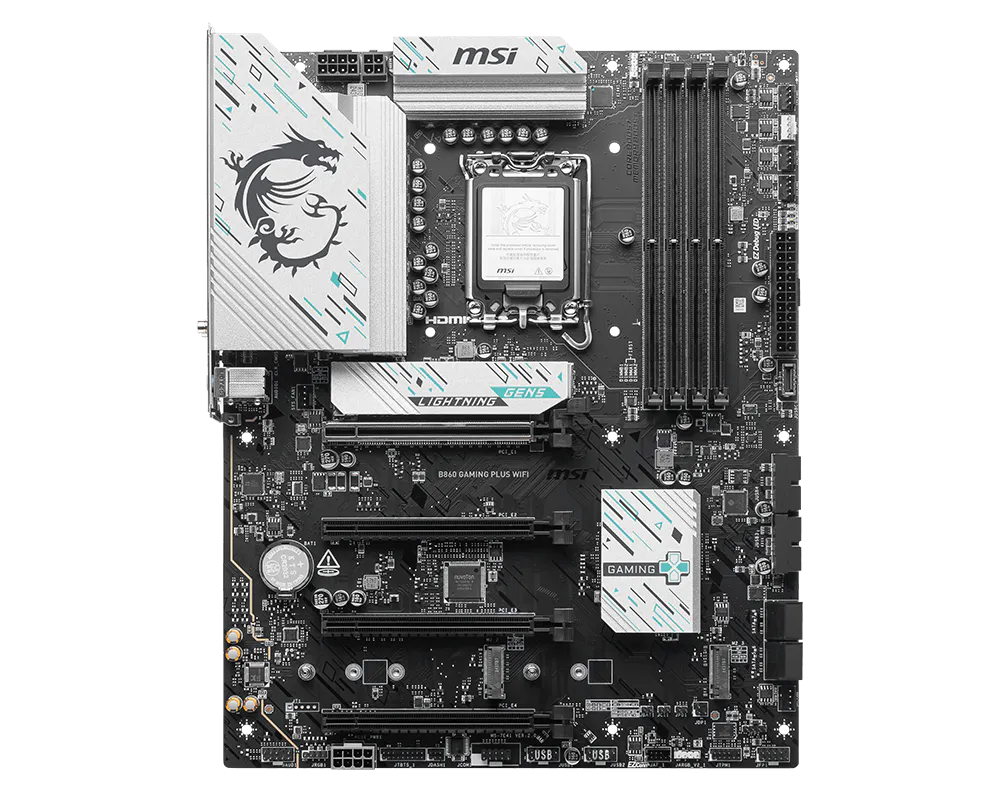

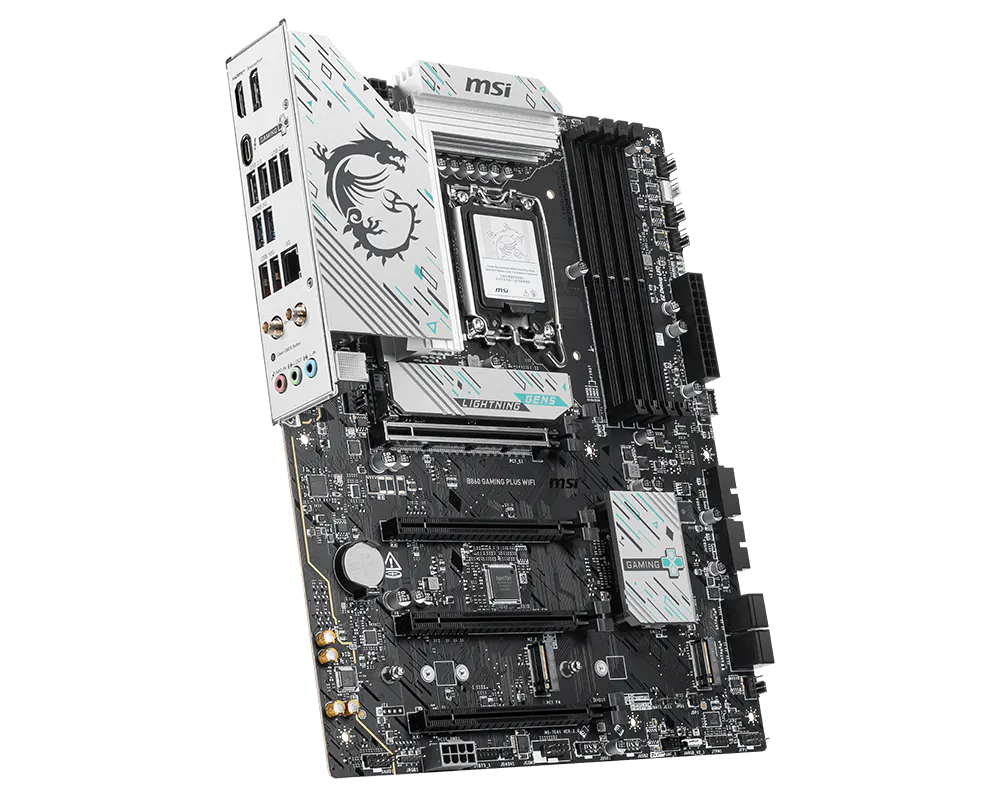

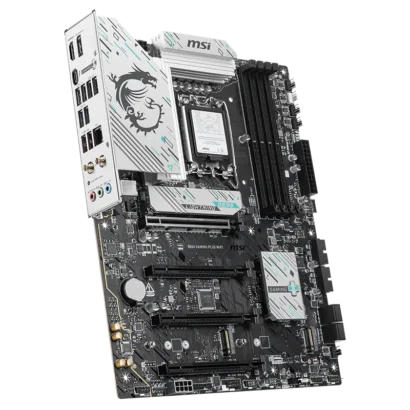

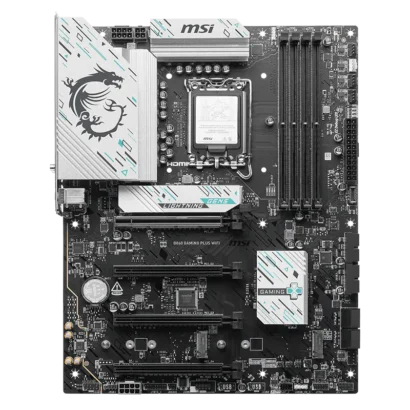

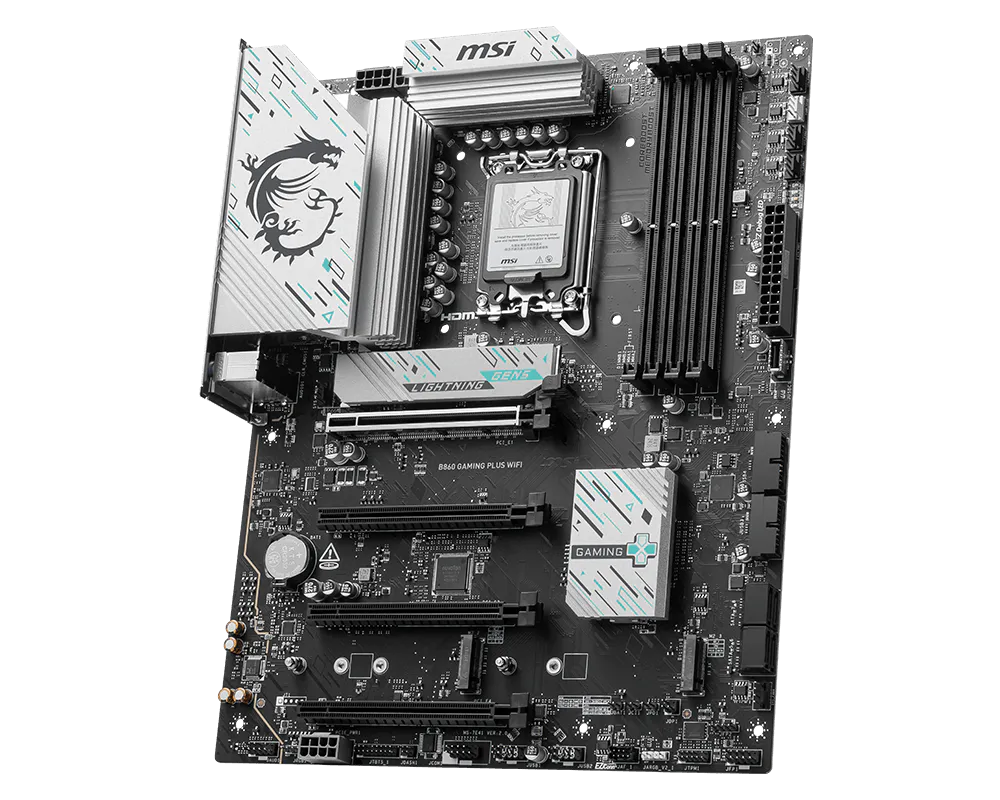

The MSI B860 GAMING PLUS WIFI is a well-balanced ATX motherboard built for gamers and mainstream PC builders who want modern features without paying premium prices. Based on the Intel B860 chipset, it supports the latest Intel Core Ultra (Series 2) processors and delivers a solid combination of performance, connectivity, and DIY-friendly design. Positioned below the Tomahawk series, it retains most essential features—like PCIe 5.0, Wi-Fi 7, and DDR5—making it a strong value choice for high-performance gaming setups.
Key Features
⚡ Performance & Power
- Supports Intel Core Ultra (Series 2) CPUs – LGA 1851
- 12+1+1+1 Duet Rail VRM design for stable power delivery
- DDR5 memory support up to ~8800+ MT/s (OC)
- 6-layer server-grade PCB for reliability and signal stability
🚀 Expansion & Storage
- PCIe 5.0 x16 slot (Steel Armor reinforced) for next-gen GPUs
- Triple M.2 slots (1× PCIe 5.0 + 2× PCIe 4.0)
- Supplemental PCIe power connector for high-end GPUs
- Fast storage with up to 128Gbps Gen5 NVMe bandwidth
🌐 Connectivity
- Wi-Fi 7 (Intel Killer) for ultra-fast wireless networking
- 5G LAN for low-latency wired performance
- Thunderbolt 4 (40Gbps) support
- Front USB Type-C and multiple high-speed USB ports
❄️ Cooling & Thermal Design
- Extended VRM heatsinks for efficient heat dissipation
- M.2 Shield Frozr II for SSD cooling
- High-quality thermal pads (7W/mK) for sustained performance
- Designed for 24/7 stable gaming workloads
🛠️ DIY & User-Friendly Features
- Pre-installed I/O shield
- EZ DIY features (EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna)
- Clear CMOS button for quick troubleshooting
- Clean gaming aesthetic with durable build
SPECIFICATIONS
| Chipset | INTEL B860 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Slot | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio
|
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
