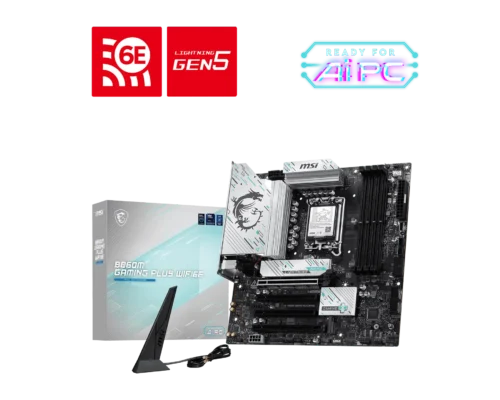

MSI B860M GAMING PLUS WIFI6E M-ATX MOTHERBOARD
Original price was: ₹22,999.00.₹16,639.00Current price is: ₹16,639.00.
- High-Speed DDR5: Supports DDR5 memory speeds up to 8800+ MT/s (OC) for responsive gaming and demanding applications.
- PCIe 5.0 Ready: Provides PCIe 5.0 x16 support for next-generation graphics cards and PCIe 5.0 x4 NVMe storage.
- Triple M.2 Storage: Three M.2 slots provide flexible high-speed NVMe storage options.
- 5Gbps Networking: Intel Killer E5000 5Gbps LAN delivers high-speed wired connectivity for gaming and large file transfers.
- Wi-Fi 6E Connectivity: Supports 2.4GHz, 5GHz and 6GHz bands with speeds up to 2.4Gbps.
- Modern Connectivity: Includes USB 10Gbps Type-A and Type-C ports and a Thunderbolt 5 card connector.
- Gaming-Focused Platform: Combines high-speed networking, PCIe 5.0, DDR5, and multiple NVMe options in a compact Micro-ATX design.
- Easy Troubleshooting: Four EZ Debug LEDs help identify hardware issues during system startup.
MSI B860M GAMING PLUS WIFI6E M-ATX MOTHERBOARD
The MSI B860M GAMING PLUS WIFI6E is a high-performance Micro-ATX motherboard built for Intel Core Ultra Processors (Series 2) with the LGA 1851 socket. It supports high-speed DDR5 memory up to 8800+ MT/s (OC), PCIe 5.0, three M.2 slots, 5Gbps Killer LAN, Wi-Fi 6E, and Bluetooth 5.3. With advanced connectivity, multiple storage options, and a gaming-focused design, it is an excellent choice for modern gaming, content creation, and high-performance PC builds.
Key Features
- Intel B860 chipset with LGA 1851 socket
- Supports Intel Core Ultra Processors (Series 2)
- 4 x DDR5 UDIMM slots
- Supports up to 256GB DDR5 memory
- DDR5 speeds up to 8800+ MT/s (OC)
- Intel XMP 3.0 and memory overclocking support
- 1 x PCIe 5.0 x16 slot
- 3 x M.2 slots for high-speed NVMe storage
- PCIe 5.0 x4 support for the primary M.2 slot
- 4 x SATA 6Gb/s ports
- Intel Killer E5000 5Gbps LAN
- Wi-Fi 6E with speeds up to 2.4Gbps
- Bluetooth 5.3
- Realtek ALC897 7.1-channel HD Audio
- HDMI 2.1 and DisplayPort 1.4
- USB 10Gbps Type-A and Type-C connectivity
- Thunderbolt 5 card connector
- 4 x EZ Debug LEDs
- Micro-ATX form factor
- Windows 11 64-bit support
Specifications
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | B860M GAMING PLUS WIFI6E |
| Form Factor | Micro-ATX |
| Dimensions | 243.84 x 243.84 mm |
| Chipset | Intel B860 |
| CPU Socket | LGA 1851 |
| Processor Support | Intel Core Ultra Processors (Series 2) |
| Memory Type | DDR5 |
| Memory Slots | 4 x DDR5 UDIMM |
| Maximum Memory | 256GB |
| Memory Speed | Up to 8800+ MT/s (OC) |
| PCIe x16 | 1 x PCIe 5.0 x16 |
| Additional PCIe | PCIe 4.0 x1 and PCIe 4.0 x4 slots |
| M.2 Slots | 3 |
| Primary M.2 | PCIe 5.0 x4 |
| Additional M.2 | PCIe 4.0 x4 + PCIe 4.0 x2 |
| SATA | 4 x SATA 6Gb/s |
| LAN | Intel Killer E5000 5Gbps |
| Wi-Fi | Wi-Fi 6E, up to 2.4Gbps |
| Bluetooth | Bluetooth 5.3 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| HDMI | HDMI 2.1, up to 4K 60Hz |
| DisplayPort | DisplayPort 1.4, up to 4K 60Hz |
| USB | USB 2.0, USB 5Gbps, USB 10Gbps |
| Thunderbolt | Thunderbolt 5 card connector |
| Operating System | Windows 11 64-bit |
