MSI MAG B860M MORTAR WIFI
Original price was: ₹24,909.00.₹22,194.00Current price is: ₹22,194.00.
- ✅ Micro-ATX form factor – compact but powerful
- ✅ Strong VRM for gaming and high-performance CPUs
- ✅ Future-ready with PCIe 5.0, DDR5, Wi-Fi 7
- ✅ Excellent connectivity: Thunderbolt 4 + 5G LAN
- ✅ Triple M.2 slots for fast storage expansion
- ✅ Ideal for compact gaming builds with high-end features
MSI MAG B860M MORTAR WIFI
MSI MAG B860M MORTAR WIFI

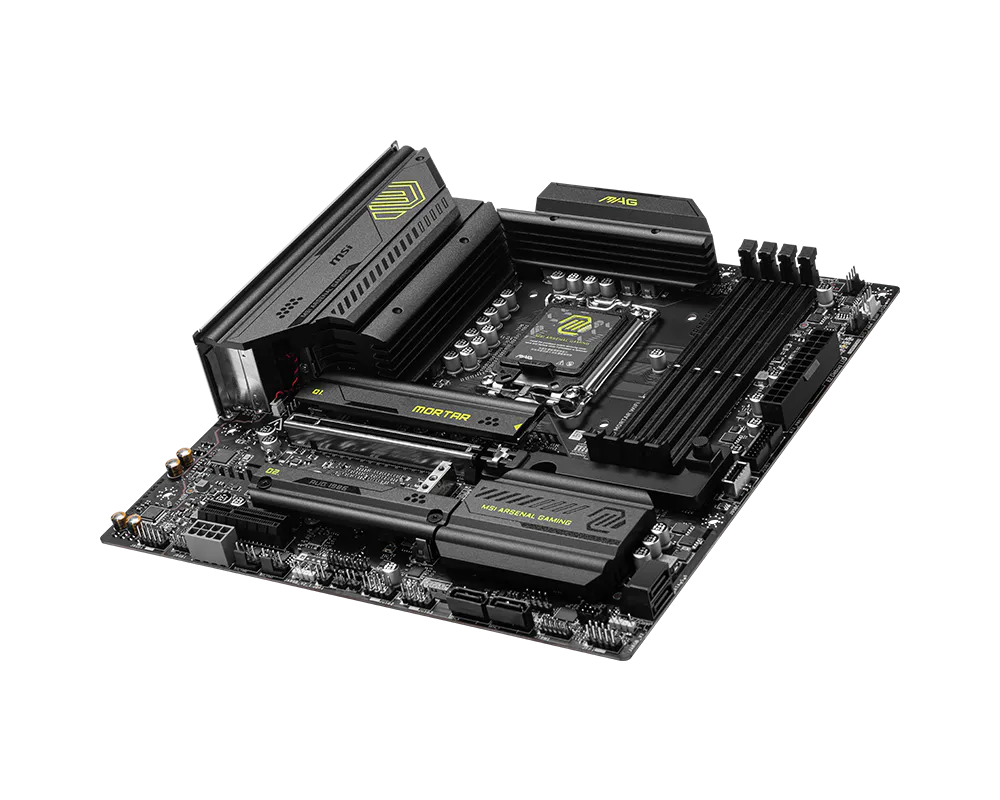

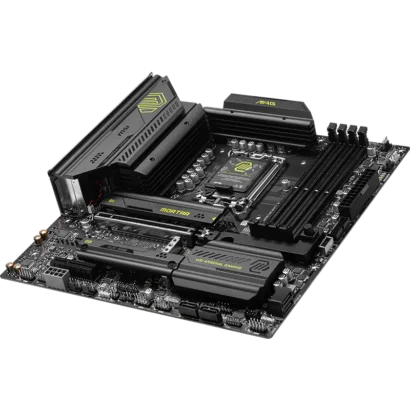

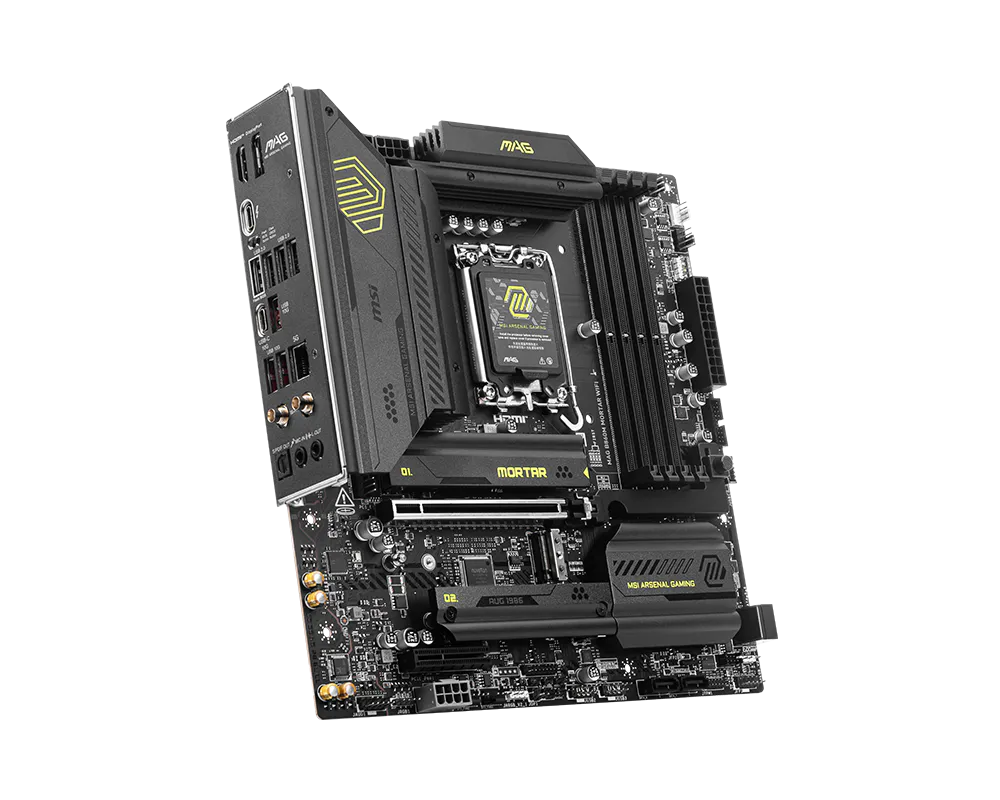

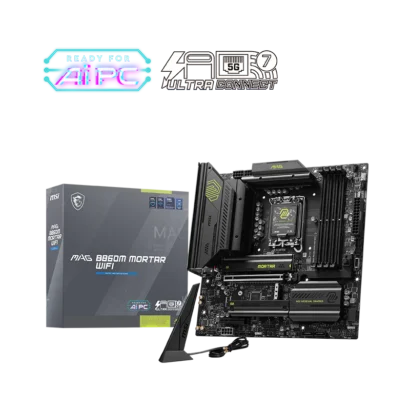

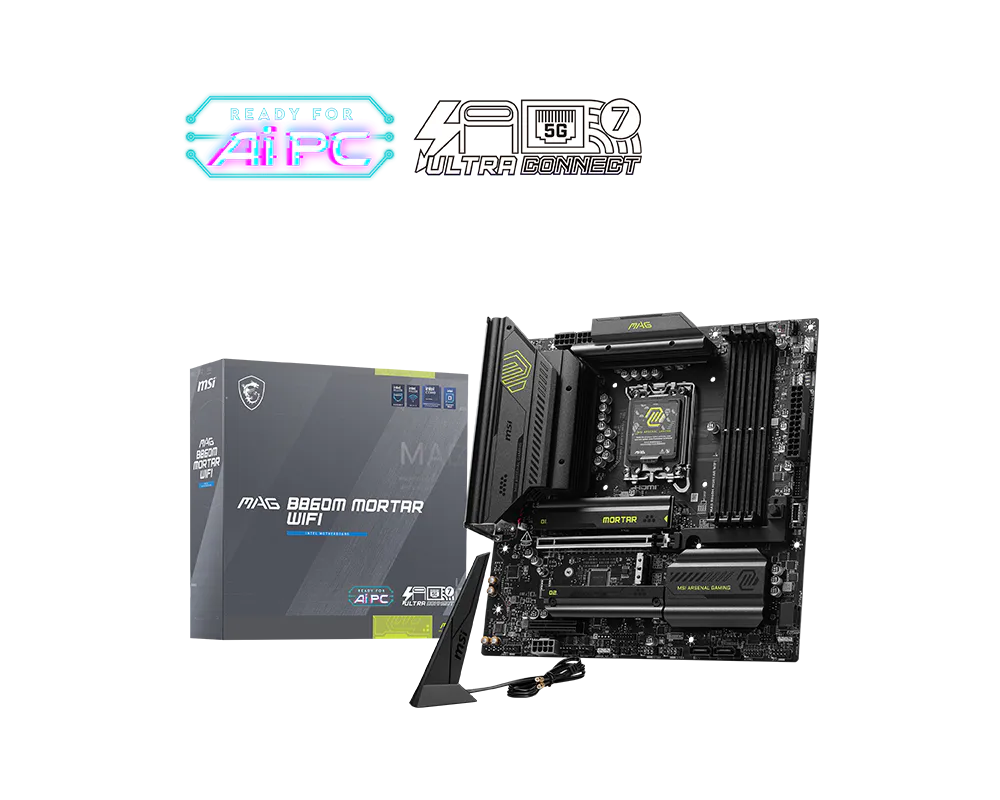

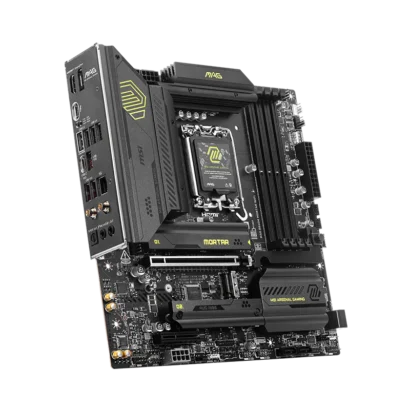

The MSI MAG B860M MORTAR WIFI is a compact yet powerful micro-ATX motherboard built for gamers and PC enthusiasts who want high-end features in a smaller form factor. Part of MSI’s MAG (Arsenal Gaming) lineup, it emphasizes durability, thermal efficiency, and stable performance while supporting Intel Core Ultra (Series 2) processors. With PCIe 5.0, DDR5 memory, Wi-Fi 7, and a robust power delivery system, it delivers near-ATX-level performance in a more space-efficient design—ideal for mid-size gaming rigs and compact builds.
Key Features
⚡ Performance & Power
- Supports Intel Core Ultra (Series 2) CPUs – LGA 1851
- 12+1+1+1 Duet Rail VRM (60A DrMOS) for stable power delivery
- Dual 8-pin CPU power connectors for high-end CPUs
- DDR5 memory up to ~9200+ MT/s (OC)
- 6-layer PCB with 2oz copper for durability and signal integrity
🚀 Expansion & Storage
- PCIe 5.0 x16 slot (Steel Armor II) for next-gen GPUs
- 3× M.2 slots (1× PCIe 5.0 + 2× PCIe 4.0)
- Lightning Gen5 storage with up to 128Gbps bandwidth
- Additional PCIe slot for expansion cards
🌐 Connectivity
- Wi-Fi 7 (Intel Killer) for ultra-fast wireless speeds
- 5G LAN for low-latency wired networking
- Thunderbolt 4 (40Gbps) support
- EZ Antenna for easy wireless setup
❄️ Cooling & Thermal Design
- Extended VRM heatsinks for efficient cooling
- M.2 Shield Frozr II for SSD heat management
- High-quality 7W/mK thermal pads
- Designed for sustained performance under gaming loads
🛠️ DIY & Smart Features
- EZ DIY design (EZ PCIe Release, EZ M.2 Clip II, EZ Antenna)
- Pre-installed I/O shield
- Click BIOS X with one-click overclocking
- AI Boost for improved NPU/AI workload performance
SPECIFICATIONS
| Chipset | INTEL B860 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1 with FRL, maximum resolution of 8K 60Hz*/ ** 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz*/ ** 1x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Slot | 1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
|
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
