MSI MEG X870E GODLIKE

MSI MEG X870E GODLIKE

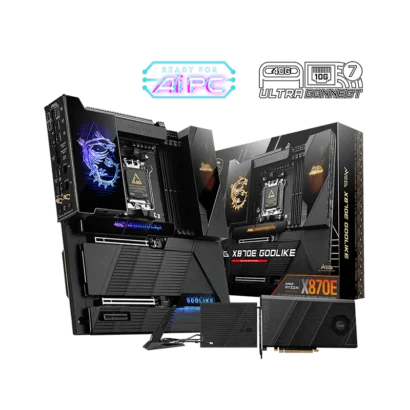

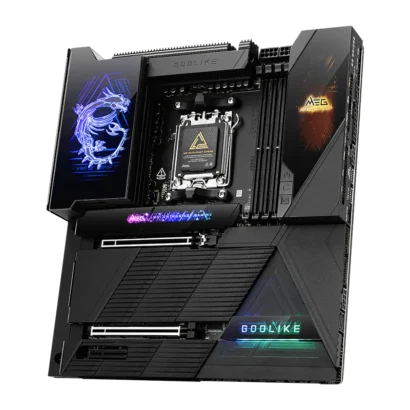

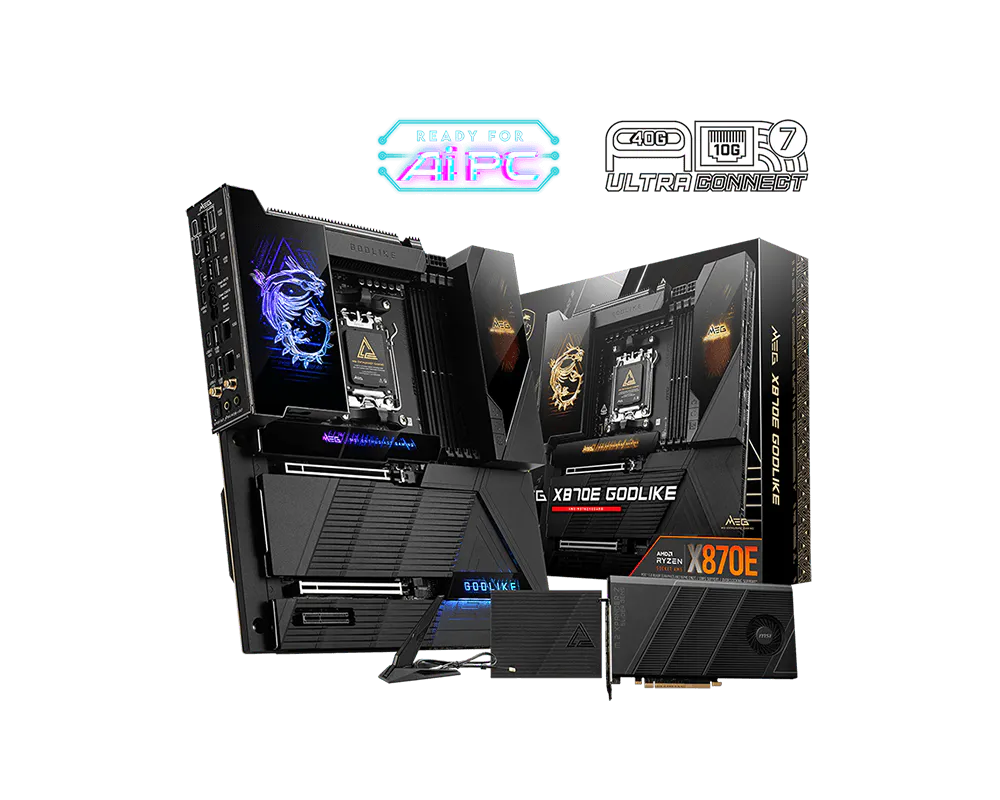

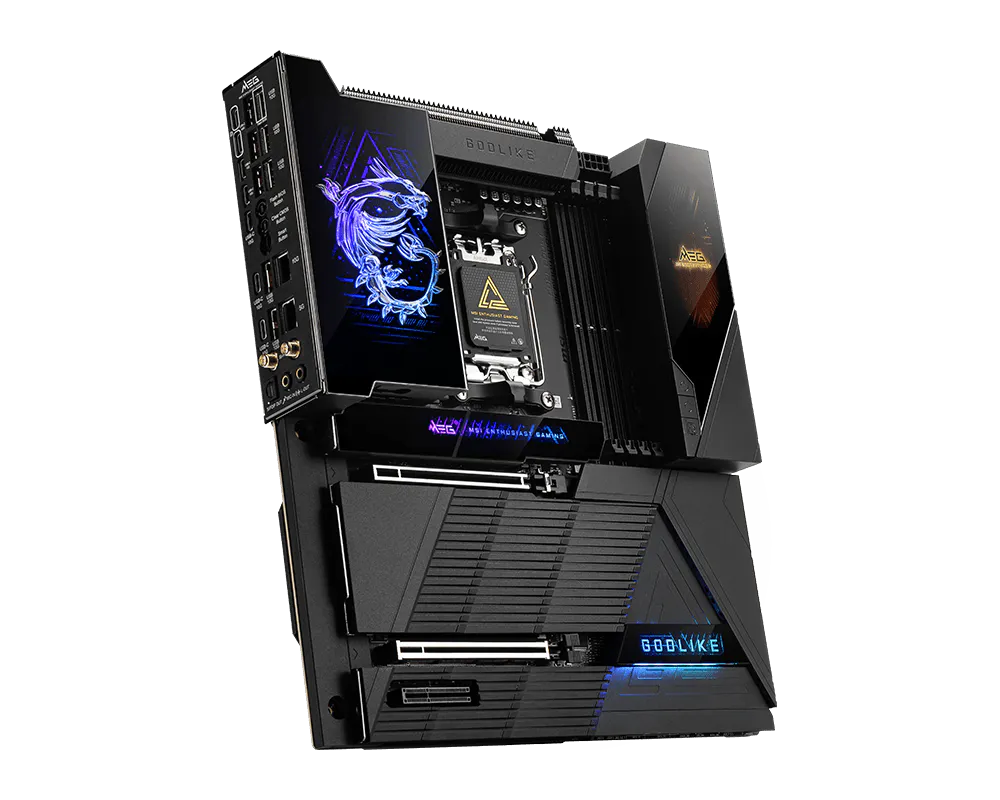

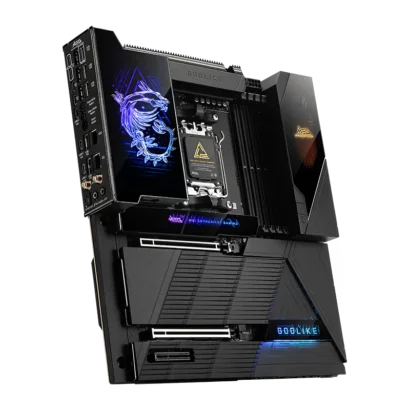

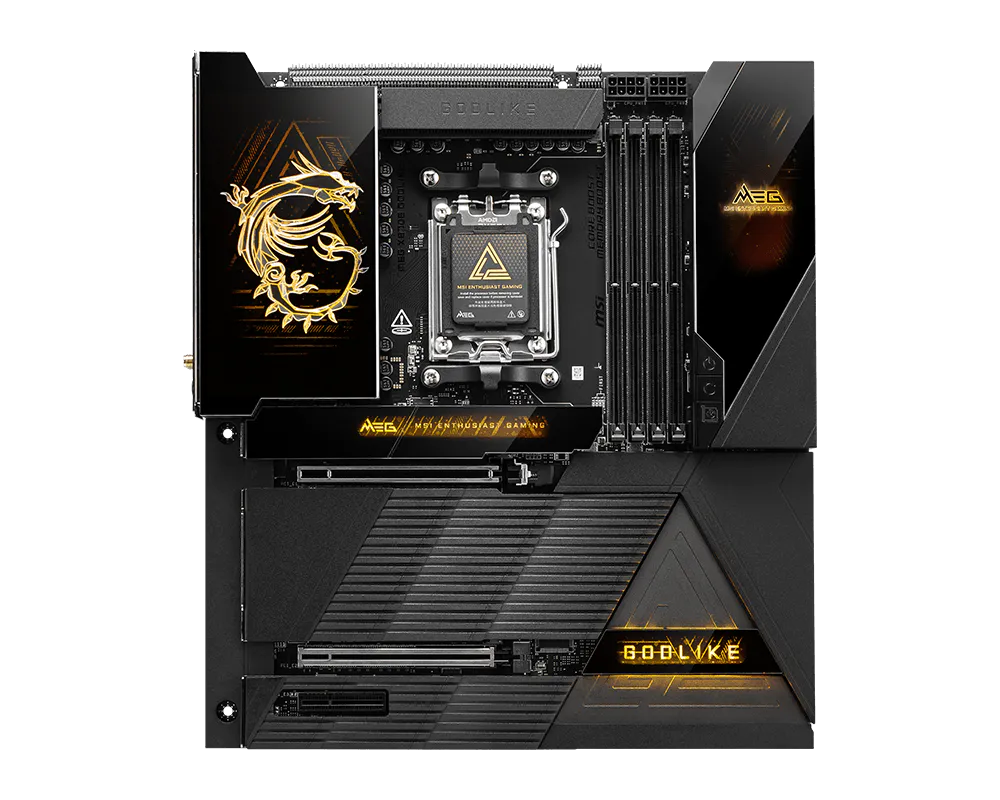

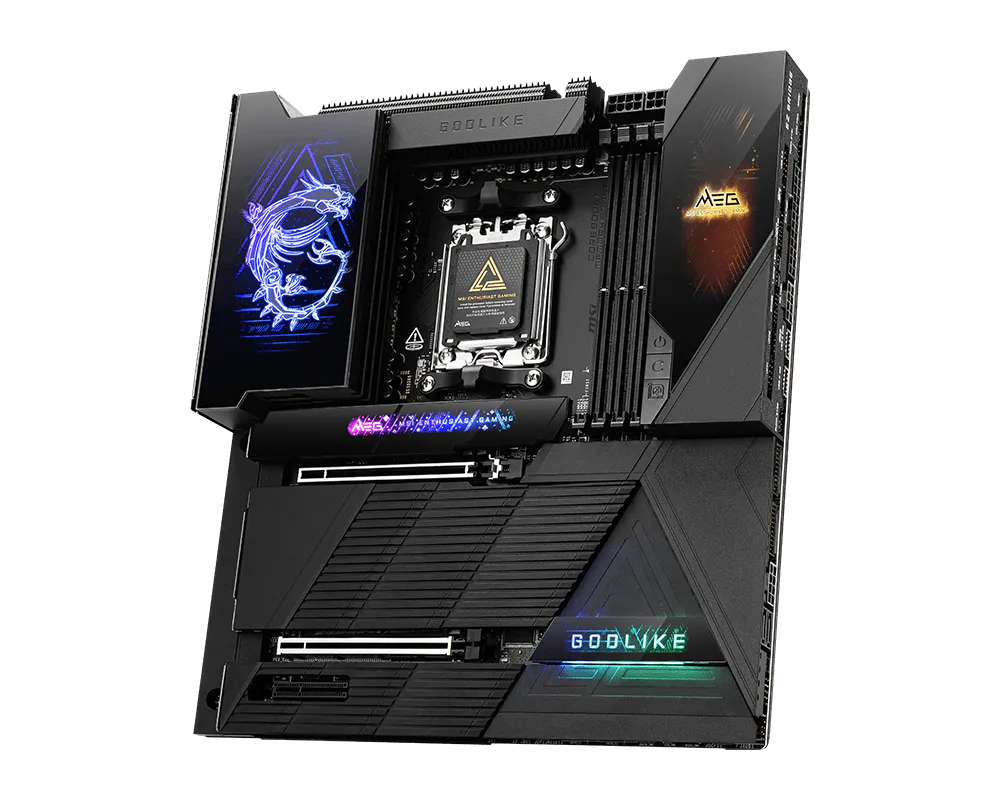

The MSI MEG X870E GODLIKE is a top-tier, flagship motherboard designed for extreme enthusiasts, gamers, and professional PC builders. Built on the AMD X870E chipset, it supports the latest Ryzen 7000, 8000, and 9000 series processors, delivering cutting-edge performance for AI workloads, gaming, and heavy multitasking.

With its E-ATX form factor, premium materials, and advanced cooling design, this motherboard is engineered for overclocking, high-speed connectivity, and future-proof expansion. It combines powerful hardware architecture with luxury aesthetics, including a built-in LCD dashboard and high-end thermal solutions.

Key Features

⚡ Extreme Performance & Power

• 24+2+1 Duet Rail VRM power design with 110A Smart Power Stages
• Supports DDR5 memory up to 9000+ MT/s (OC)
• 10-layer PCB with server-grade materials for stability
• Dual 8-pin CPU power connectors for heavy overclocking

🚀 Next-Gen Expansion & Storage

• PCIe 5.0 slots for GPUs and high-speed devices
• Up to 5 onboard M.2 slots + Gen5 expansion card
• Lightning Gen5 solution for ultra-fast SSD performance

🌐 Ultra-Fast Connectivity

• Wi-Fi 7 (up to 5.8Gbps speeds)
• Dual LAN: 10G + 5G Ethernet
• Dual USB4 (40Gbps) Type-C ports
• Front USB-C with 60W power delivery

❄️ Advanced Cooling (Frozr Guard)

• Wavy fin heatsink design + direct-touch heat pipes
• High-performance thermal pads (9W/mK)
• Double-sided M.2 Shield Frozr
• Full metal backplate for heat dissipation

🧠 Smart Features & Customization

• Dynamic Dashboard III (3.99″ LCD) for real-time monitoring
• EZ DIY features (tool-less installation, EZ PCIe release, etc.)
• AI-assisted cooling and system tuning

🔊 Premium Audio

• Audio Boost 5 HD with ALC4082 codec + ESS DAC
• Studio-quality sound output for gaming and content creation

                                   SPECIFICATIONS

Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 9200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 6400+ MT/sOnboard Graphics2x Type-C DisplayPort
USB4^® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*
 Slot2x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 & PCI_E2 slots
• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E3 slot
• Supports up to PCIe 4.0 x4

 AudioRealtek^® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panelStorage7x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices

M.2_1:
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2:
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
M2_4:
PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
