MSI PRO B840M-P WIFI6E
Original price was: ₹13,809.00.₹11,989.00Current price is: ₹11,989.00.
- 📶 Strong Connectivity: Built-in Wi-Fi 6E + 2.5G LAN for fast networking
- ⚡ Modern Platform: AM5 + DDR5 ensures future-ready performance
- 🧩 Compact & Efficient: Micro-ATX size fits smaller builds without losing features
- 🔧 Beginner Friendly: Easy installation and BIOS update features
- ❄️ Stable Cooling: Heatsinks and thermal pads keep temps controlled
- 💼 Professional Design: Clean look suited for work + gaming setups
- 🔄 Upgrade Ready: Supports latest Ryzen CPUs and fast storage
Out of stock
MSI PRO B840M-P WIFI6E
MSI PRO B840M-P WIFI6E

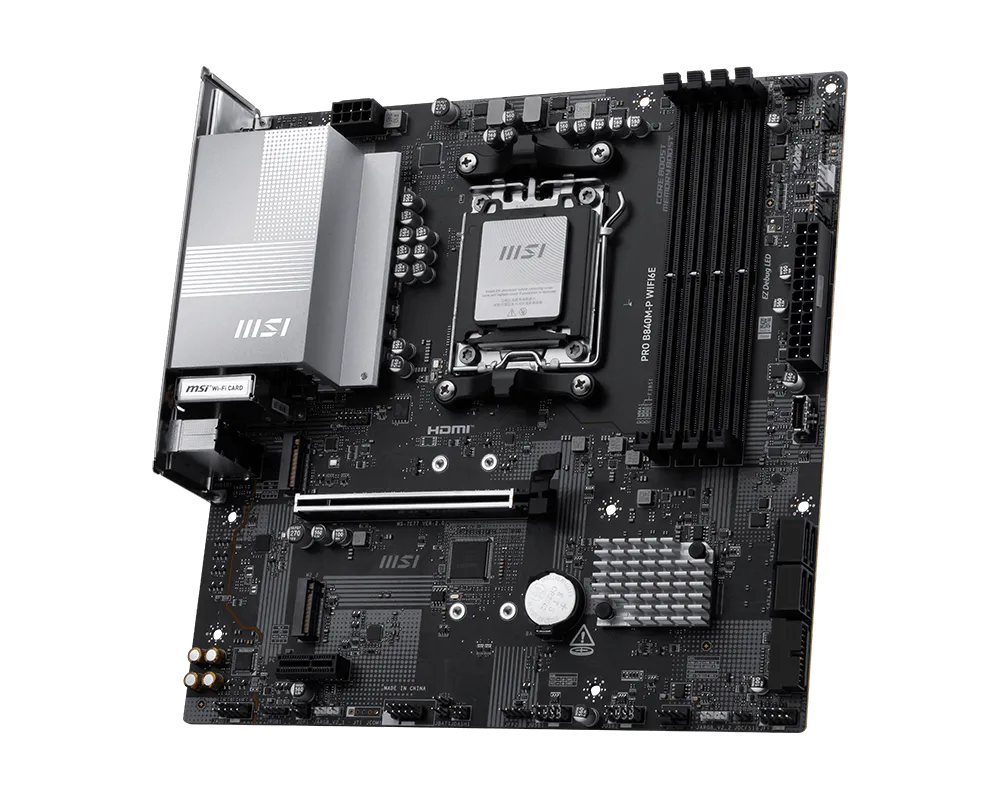

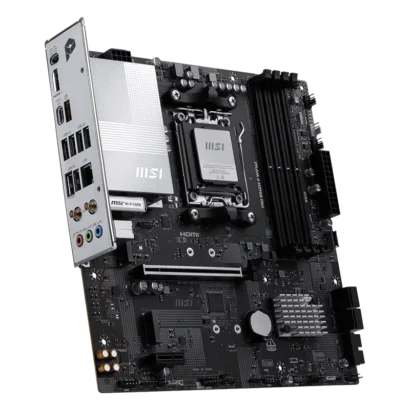

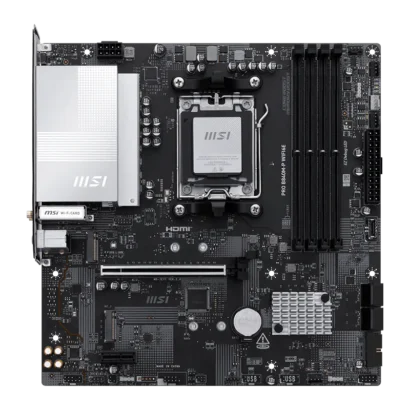

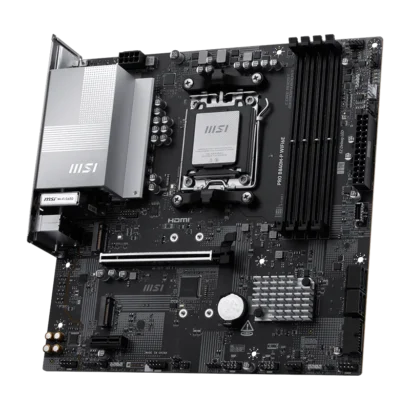

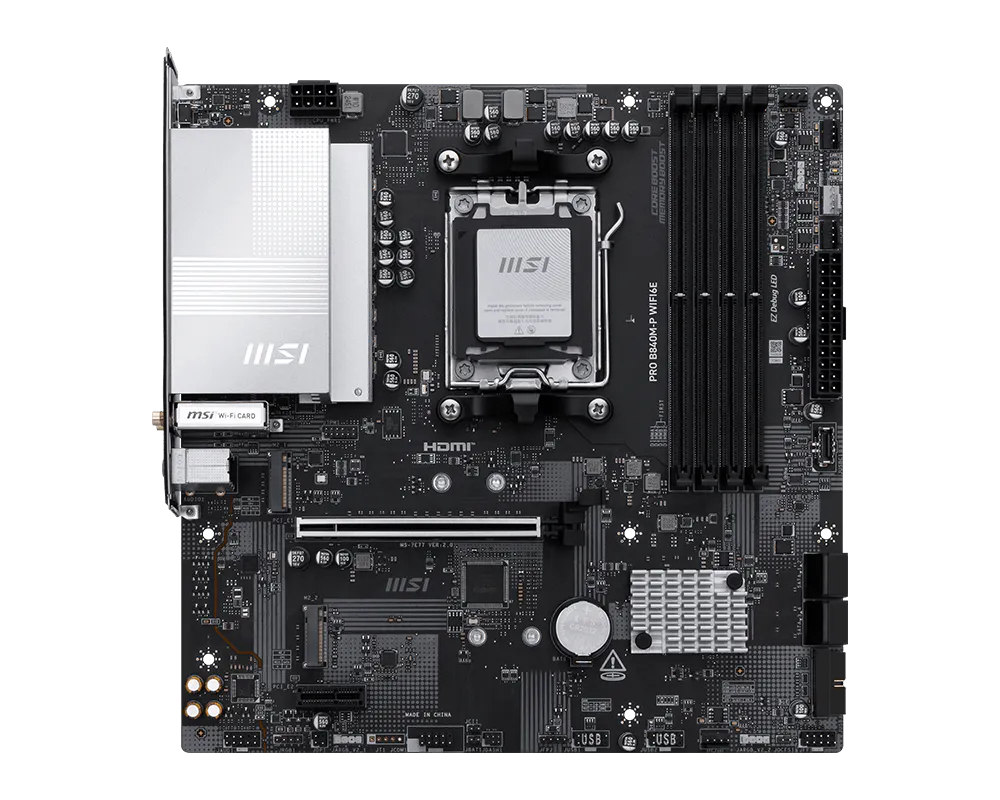

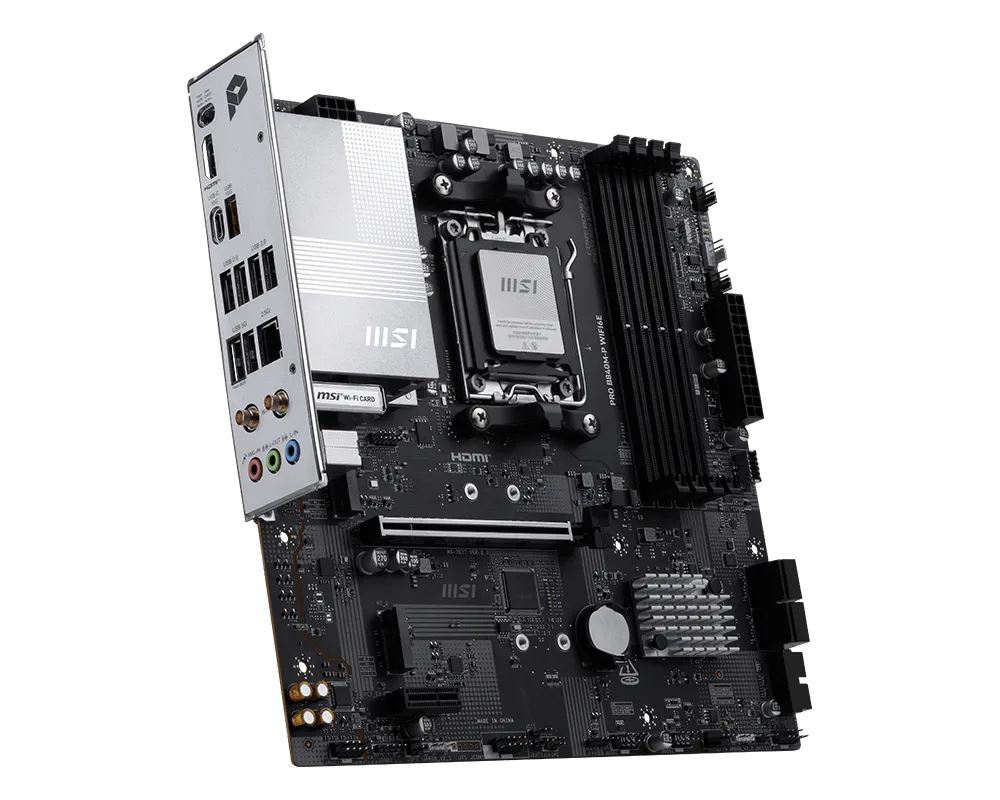

The MSI PRO B840M-P WIFI6E is a Micro-ATX motherboard built on the AMD B840 chipset for the AM5 platform, supporting Ryzen 9000, 8000, and 7000 series processors. It is designed for users who want a balance of performance, reliability, and modern connectivity in a compact and professional-looking build.
This motherboard features DDR5 memory support, PCIe 4.0 expansion, and high-speed networking with Wi-Fi 6E and 2.5G LAN, making it suitable for gaming, productivity, and multitasking workloads.
With MSI’s PRO series design philosophy, it emphasizes stability, efficiency, and ease of use, offering features like EZ DIY installation tools, Flash BIOS support, and optimized PCB design.
KEY FEATURES
- 🧠 AM5 Socket + AMD B840 Chipset – Supports Ryzen 9000 / 8000 / 7000 CPUs
- 💾 DDR5 Memory Support – Up to 8000+ MT/s (OC), dual-channel, up to 256GB capacity
- ⚡ PCIe 4.0 + Lightning Gen4 M.2 – High-speed GPU and NVMe SSD performance
- 📶 Wi-Fi 6E + Bluetooth – Includes EZ antenna and 6GHz band support
- 🌐 2.5G LAN with AI LAN Manager – Intelligent traffic prioritization for gaming/streaming
- 🔋 7+2+1 Power Design (Digital PWM) – Stable CPU performance under heavy loads
- ❄️ Frozr Thermal Design – Extended heatsinks + 7W/mK thermal pads
- 🛠️ EZ DIY Features – EZ PCIe Clip II, EZ M.2 Clip II, Flash BIOS button
- 🔊 Audio Boost – Enhanced onboard audio quality
SPECIFICATIONS
| Chipset | AMD B840 |
|---|---|
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
Memory4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Onboard Graphics1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
Slot1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)AudioRealtek® ALC897
7.1-Channel High Definition AudioStorage2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_2 slot
• Supports up to PCIe 4.0 x4
• Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
