MSI PRO B860M-B WIFI
Original price was: ₹14,299.00.₹12,299.00Current price is: ₹12,299.00.
- ✅ Engineered for Intel Core Ultra processors (LGA 1851)
- ✅ Dual‑channel DDR5 memory support up to 128 GB
- ✅ Wi‑Fi 7 + Bluetooth 5.4 wireless networking
- ✅ PCIe 5.0 x16 slot for modern GPUs
- ✅ Dual M.2 slots — Gen 5 + Gen 4 storage support
- ✅ 5 Gbps LAN for fast wired networking
- ✅ Compact Micro‑ATX form factor
- ✅ USB 20 Gbps Type‑C + multiple USB ports
- ✅ EZ DIY features for easy building
- ✅ Realtek ALC897 7.1‑channel audio support

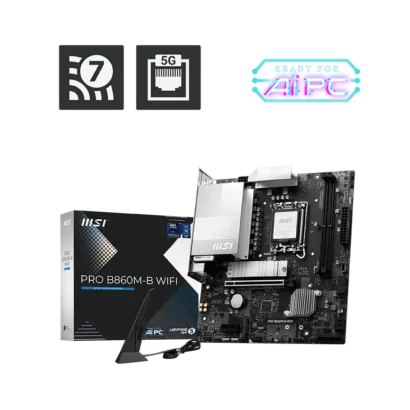

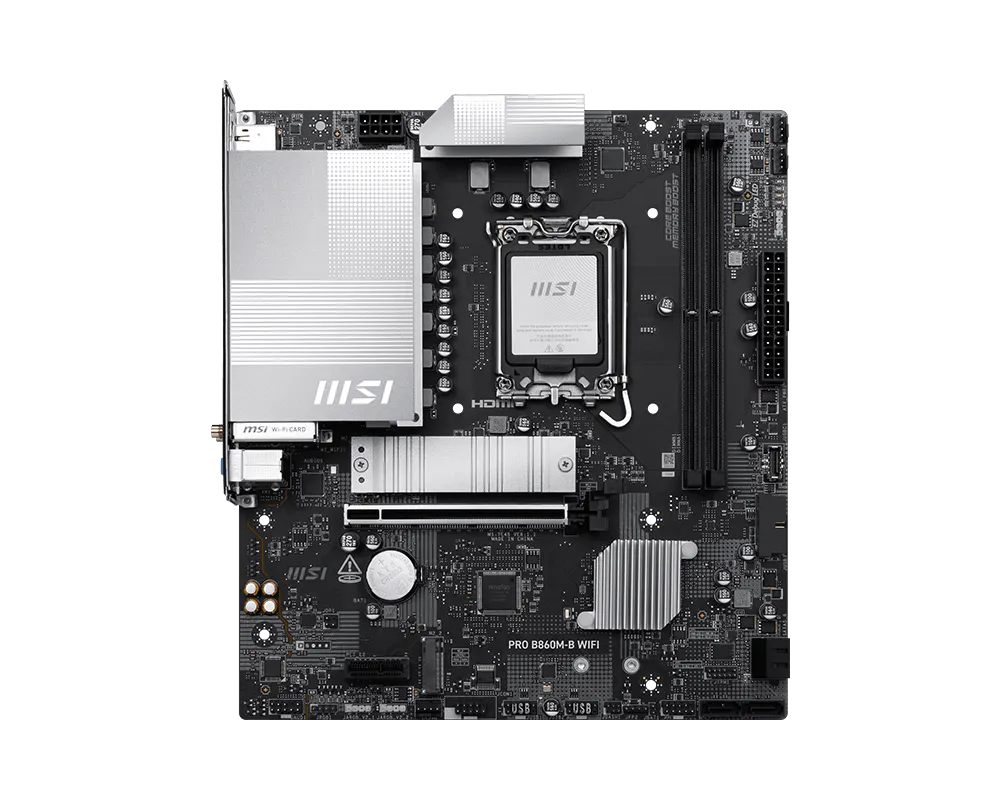

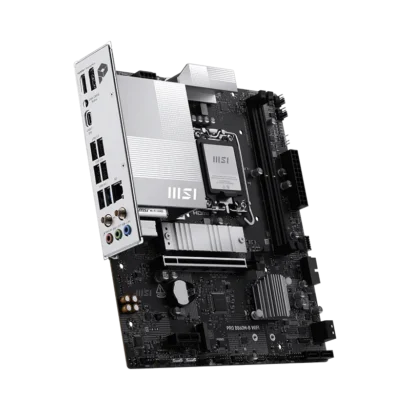

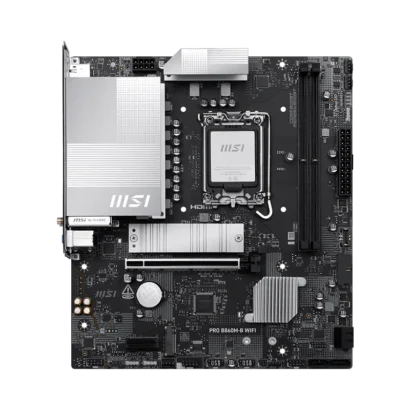

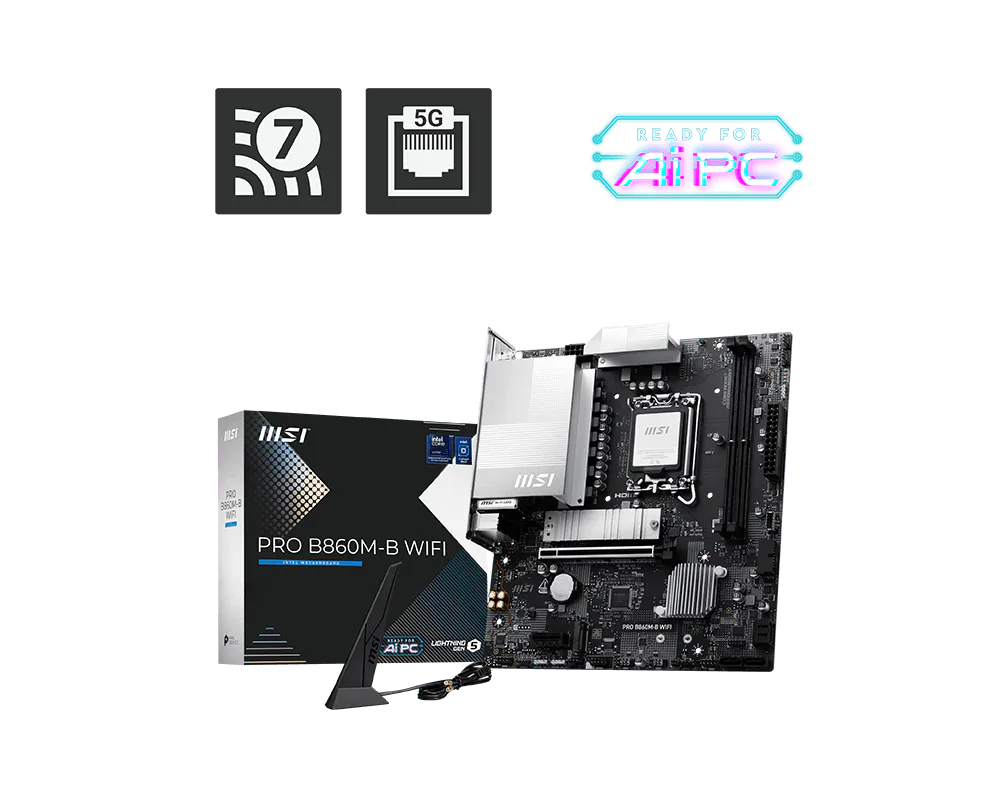

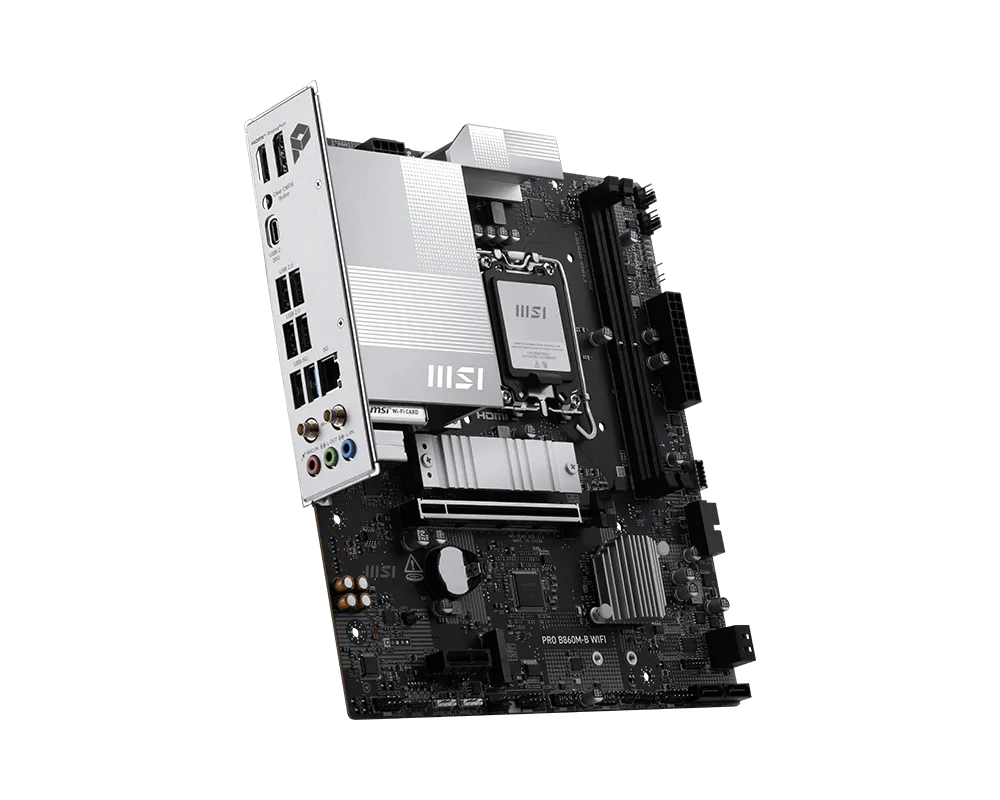

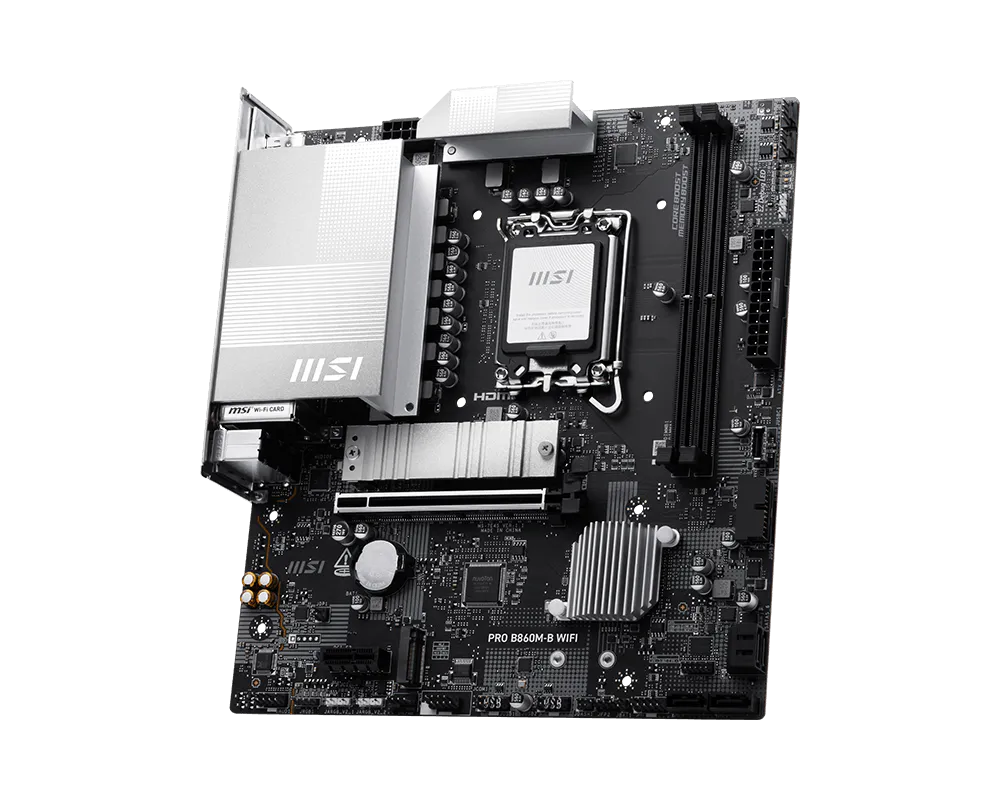

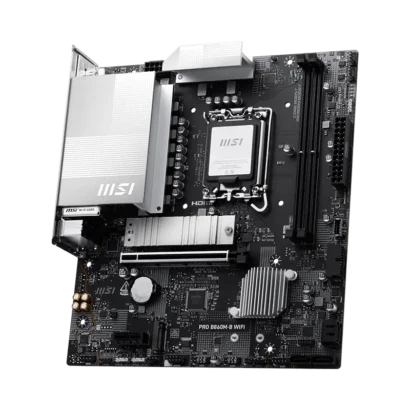

MSI PRO B860M-B WIFI
MSI PRO B860M-B WIFI
The MSI Pro B860M-B WiFi is a dependable Micro‑ATX motherboard designed for professionals, creators, and everyday PC users who want solid performance with modern connectivity and expandability. Built on the Intel B860 chipset, this board supports the latest Intel Core Ultra processors with the LGA 1851 socket and delivers high‑speed DDR5 memory support, PCIe 5.0 graphics capability, and integrated Wi‑Fi 7 wireless networking. It’s a great choice for productivity‑focused builds, compact workstations, and mainstream gaming systems that don’t require premium enthusiast features.
Key Features
- Latest Intel Platform Support – Compatible with Intel Core Ultra (Series 2) processors on the LGA 1851 socket for robust performance across productivity and gaming tasks.
- High‑Speed DDR5 Memory – Supports DDR5 memory with overclocking up to ~9066+ MT/s, delivering faster performance and improved responsiveness.
- Advanced Wireless + LAN Connectivity – Built‑in Wi‑Fi 7 delivers ultra‑fast wireless speeds with Bluetooth 5.4, while the Realtek 5 Gbps LAN ensures reliable wired networking.
- PCIe 5.0 & Storage Expansion – A PCIe 5.0 x16 slot supports next‑gen GPUs and dual M.2 slots (one PCIe 5.0, one PCIe 4.0) give you fast NVMe SSD options.
- Robust Thermal Design – Extended heatsinks with MOSFET thermal pads and M.2 Shield Frozr help maintain performance stability under load.
- EZ DIY & Build‑Friendly Features – Includes conveniences like EZ M.2 Clip II, EZ PCIe Clip II, and an easy‑to‑install antenna for Wi‑Fi.
- Unified Connectivity Suite – Rear I/O includes USB 20 Gbps Type‑C, USB 5 Gbps Type‑A, HDMI and DisplayPort for integrated graphics, plus audio connectors for 7.1‑channel sound.
- Enhanced PCB & Power – A digital power design with multiple phases delivers stable power delivery for sustained performance.
SPECIFICATIONS
| Chipset | INTEL B860 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 9066 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9066+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel® POR Speed and JEDEC Speed
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio
|
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
