MSI PRO B860M-E
Original price was: ₹11,029.00.₹9,859.00Current price is: ₹9,859.00.
- ✅ Supports Intel Core Ultra processors (LGA 1851 socket)
- ✅ DDR5 memory support up to 128 GB (OC up to 9066 MT/s)
- ✅ PCIe 5.0 x16 slot for next‑gen GPUs
- ✅ Dual M.2 slots (PCIe 5.0 + PCIe 4.0) for ultra‑fast SSDs
- ✅ Realtek 5 Gbps LAN for high‑speed networking
- ✅ HDMI 2.1 + DisplayPort outputs for integrated graphics
- ✅ 4× SATA 6 Gb/s ports for traditional drives
- ✅ USB Type‑C and multiple USB 5 Gbps/2.0 ports
- ✅ 7.1‑Channel HD Audio with Realtek codec
- ✅ ECO‑friendly Micro‑ATX form factor for compact builds

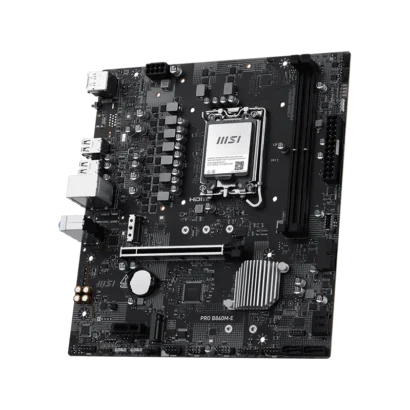

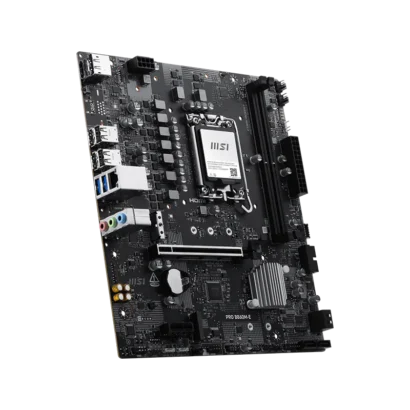

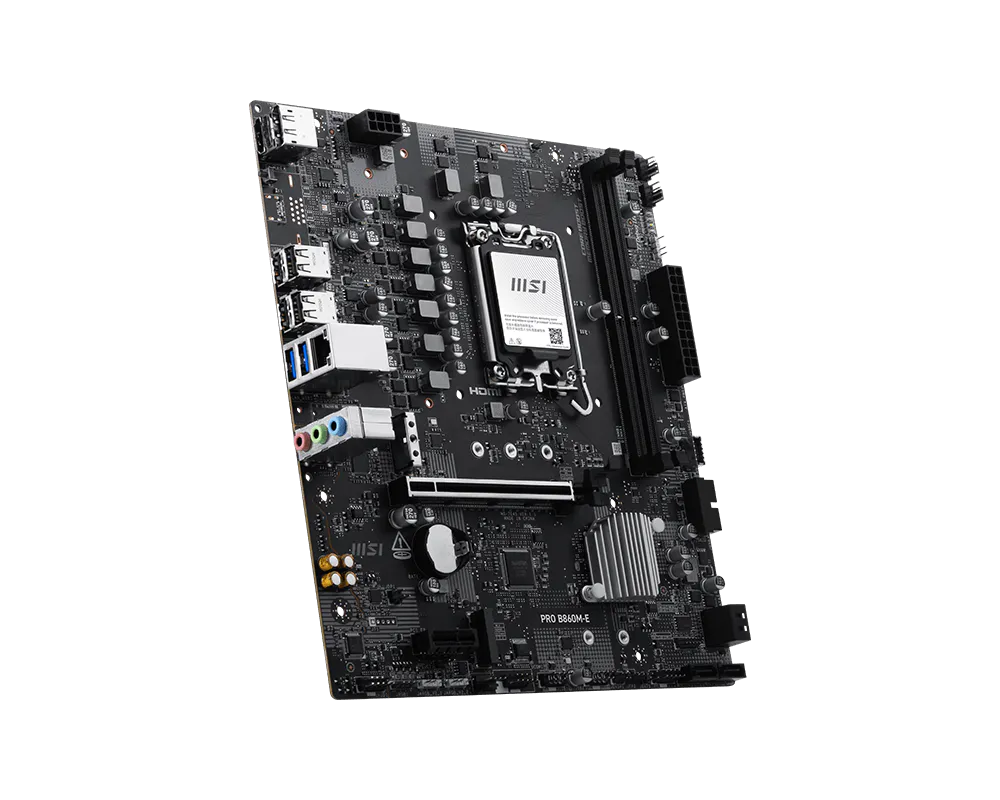

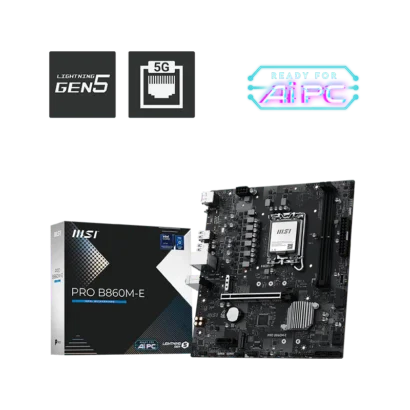

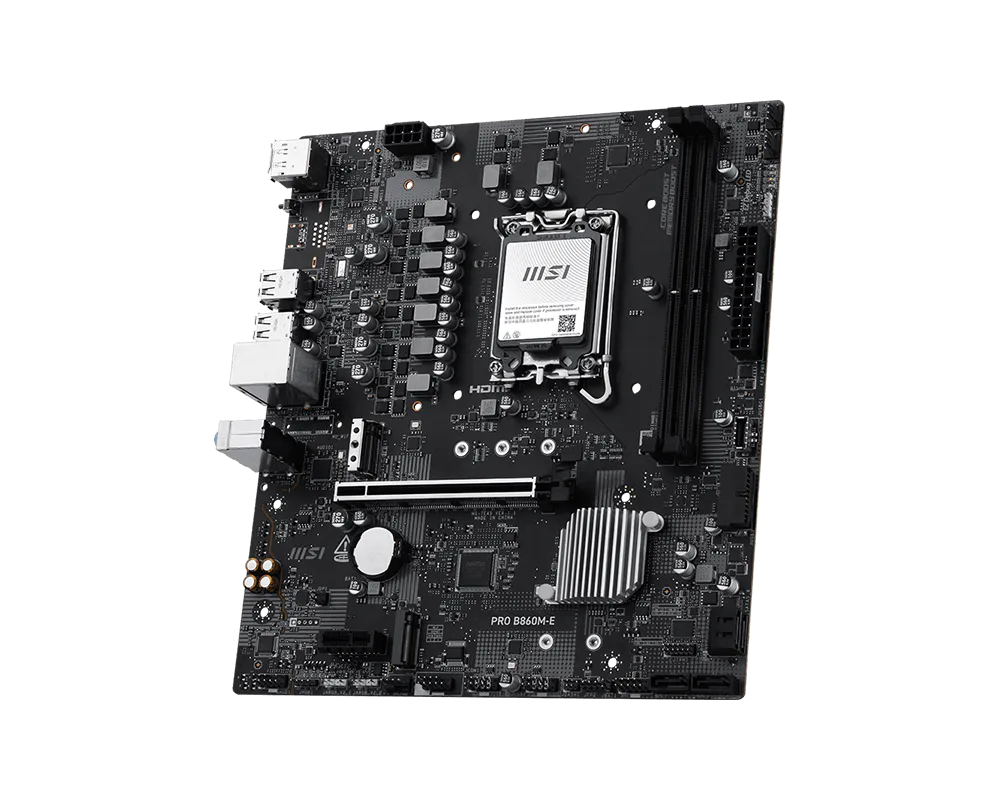

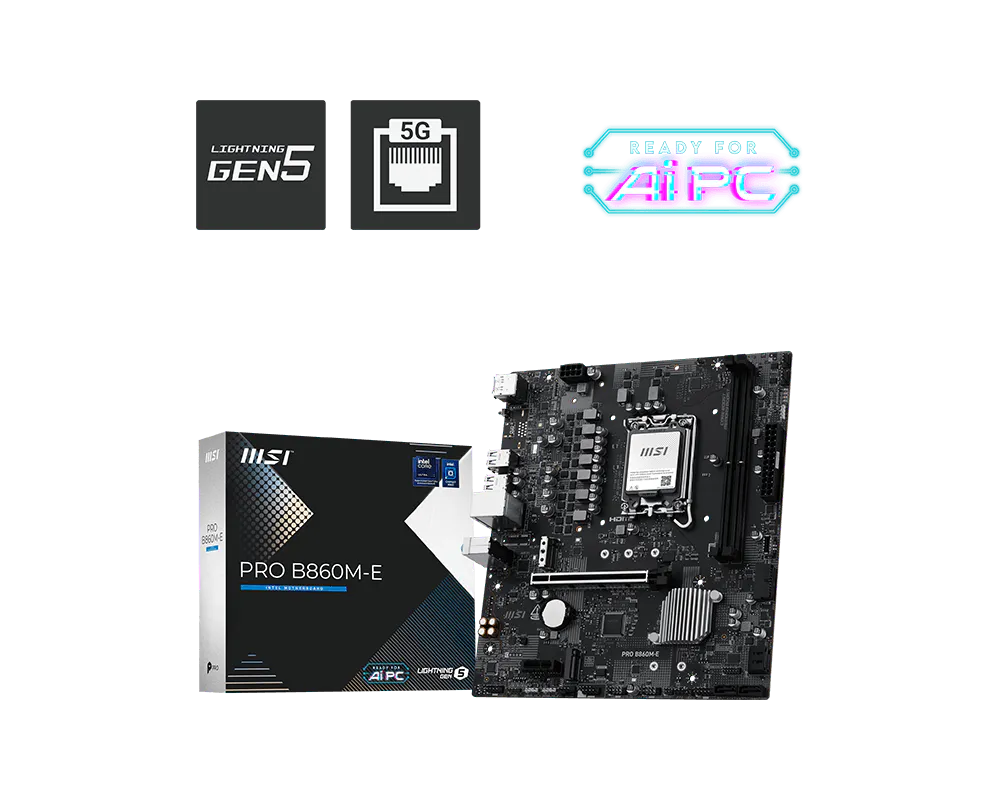

MSI PRO B860M-E
MSI PRO B860M-E
The MSI Pro B860M‑E is a capable and versatile Micro‑ATX motherboard built for mainstream users, professionals, and everyday builders who want reliable performance without unnecessary extras. Designed around the Intel B860 chipset, it offers solid support for Intel’s latest Core Ultra processors, high‑speed DDR5 memory, cutting‑edge storage, and efficient networking — making it an excellent choice for productivity PCs, home office systems, and balanced builds.
Key Features
🧠 Next‑Gen Intel Platform Support
- Engineered for Intel Core Ultra Series 2 processors with the LGA 1851 socket — ensuring modern performance and wide compatibility.
💾 DDR5 Memory Support
- Dual DDR5 DIMM slots supporting up to 128 GB of high‑speed RAM.
- Official support for memory speeds up to 9066 MT/s (OC) and Intel XMP 3.0 for easy memory tuning.
🚀 Next‑Gen Expansion & Storage
- PCIe 5.0 x16 slot delivers maximum bandwidth for modern graphics cards and expansion cards.
- Dual M.2 slots:
- One PCIe 5.0 ×4 for the fastest NVMe SSDs7
- One PCIe 4.0 ×4 for additional high‑speed storage.
- Four SATA 6 Gb/s ports for SSDs and HDDs.
🌐 High‑Speed Networking
- Realtek 8126 5 Gbps LAN provides fast and reliable wired network performance for gaming, downloads, streaming, and productivity.
📺 Integrated Graphics Support
- HDMI 2.1 and DisplayPort 1.4 outputs support up to 4K 60 Hz display (when using a compatible CPU with integrated graphics).
⚡ Multiple USB Connectivity
- Rear and internal USB ports offer a versatile range of connections:
- USB 10 Gbps Type‑C (front)
- Multiple USB 5 Gbps Type‑A (front and rear)
- USB 2.0 ports for legacy devices.
🔊 Immersive Audio
- Integrated Realtek ALC897 codec delivers high‑definition 7.1‑channel audio for clear media, communication, and entertainment.
🛠 Builder‑Friendly Design
- Clean layout and straightforward design make PC assembly and upgrades simpler — ideal for first‑time builders and experienced users alike.
- Compact Micro‑ATX form factor fits a wide range of cases.
SPECIFICATIONS
| Chipset | INTEL B860 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 9066 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9066+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel® POR Speed and JEDEC Speed
|
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio
|
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
