MSI PRO H810I WIFI
Original price was: ₹16,489.00.₹14,989.00Current price is: ₹14,989.00.
- ✅ Supports Intel Core Ultra processors (LGA 1851)
- ✅ Compact Mini-ITX form factor (perfect for small builds)
- ✅ DDR5 memory support up to 128GB
- ✅ Built-in Wi-Fi + Bluetooth connectivity
- ✅ PCIe 5.0 x16 slot for modern GPUs
- ✅ M.2 PCIe 4.0 slot for fast NVMe SSDs
- ✅ 2.5G LAN for high-speed wired networking
- ✅ HDMI + DisplayPort for integrated graphics
- ✅ USB Type-C + multiple USB ports
- ✅ Ideal for SFF, HTPC, and compact gaming builds
MSI PRO H810I WIFI
MSI PRO H810I WIFI

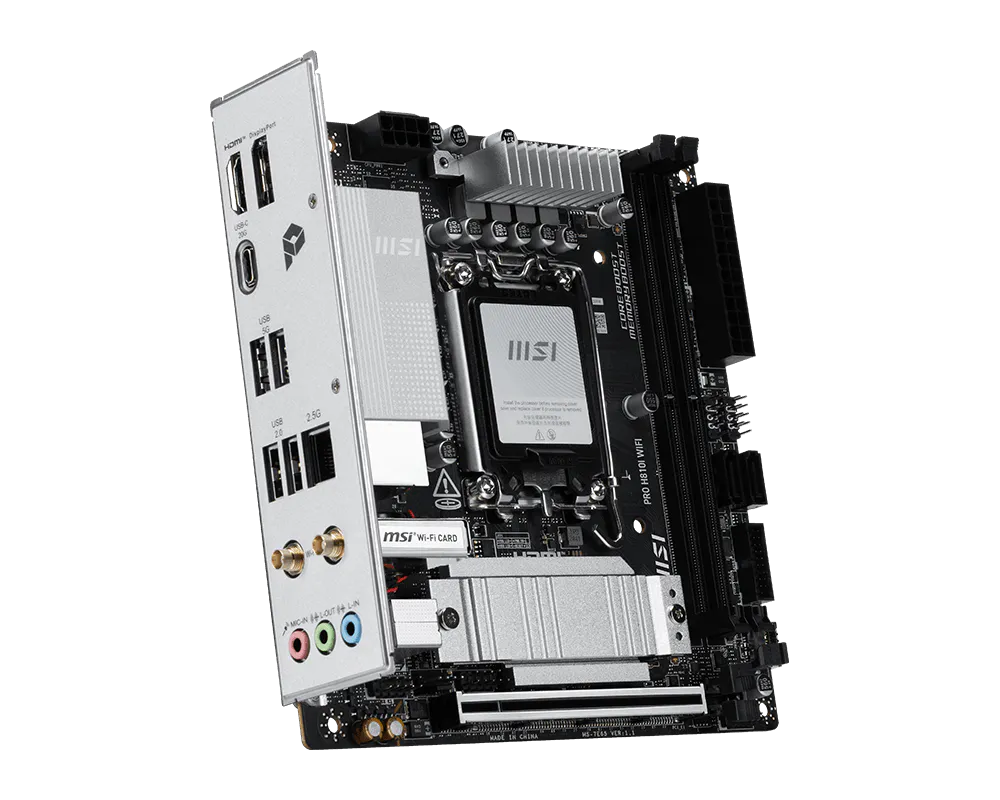

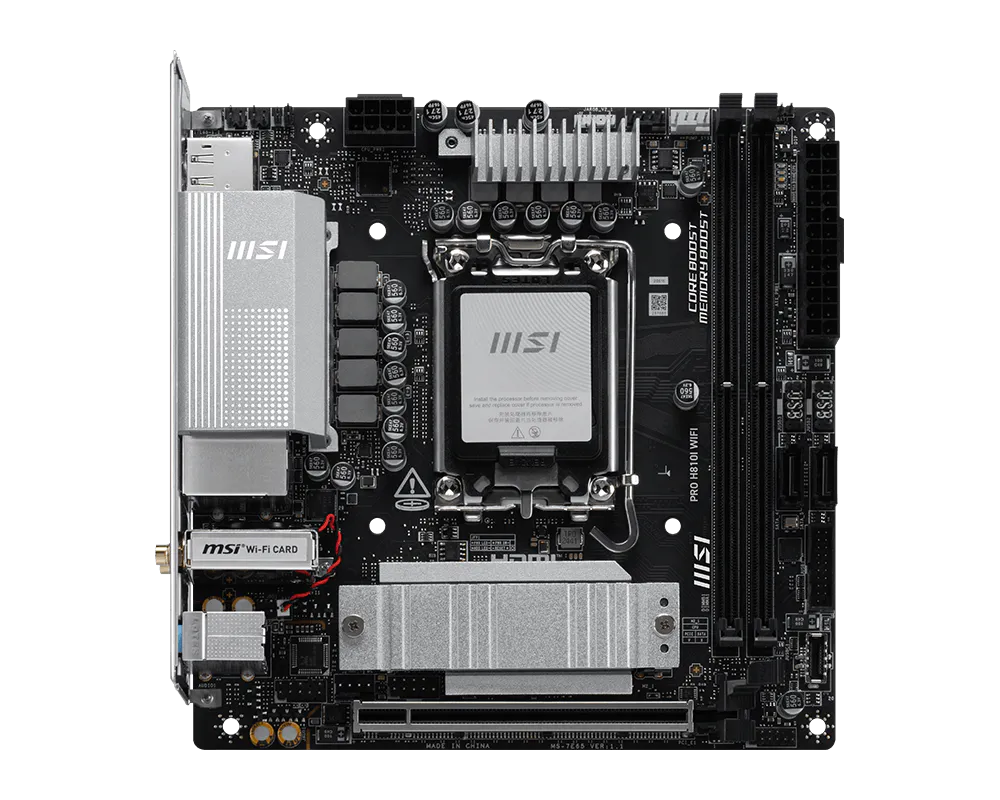

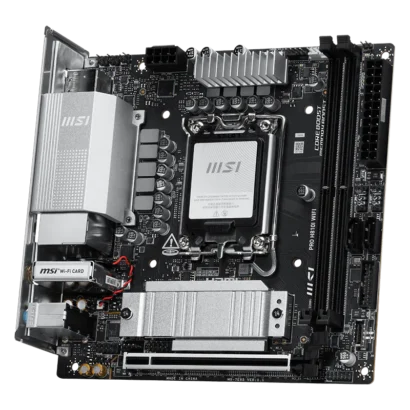

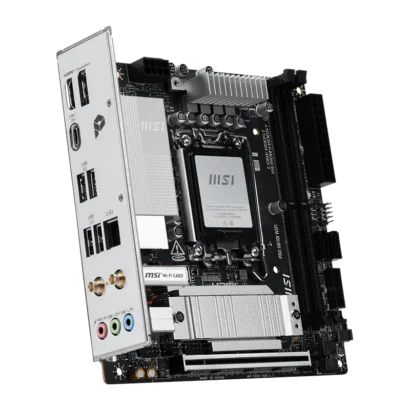

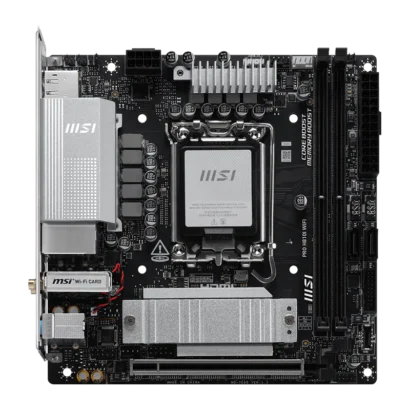

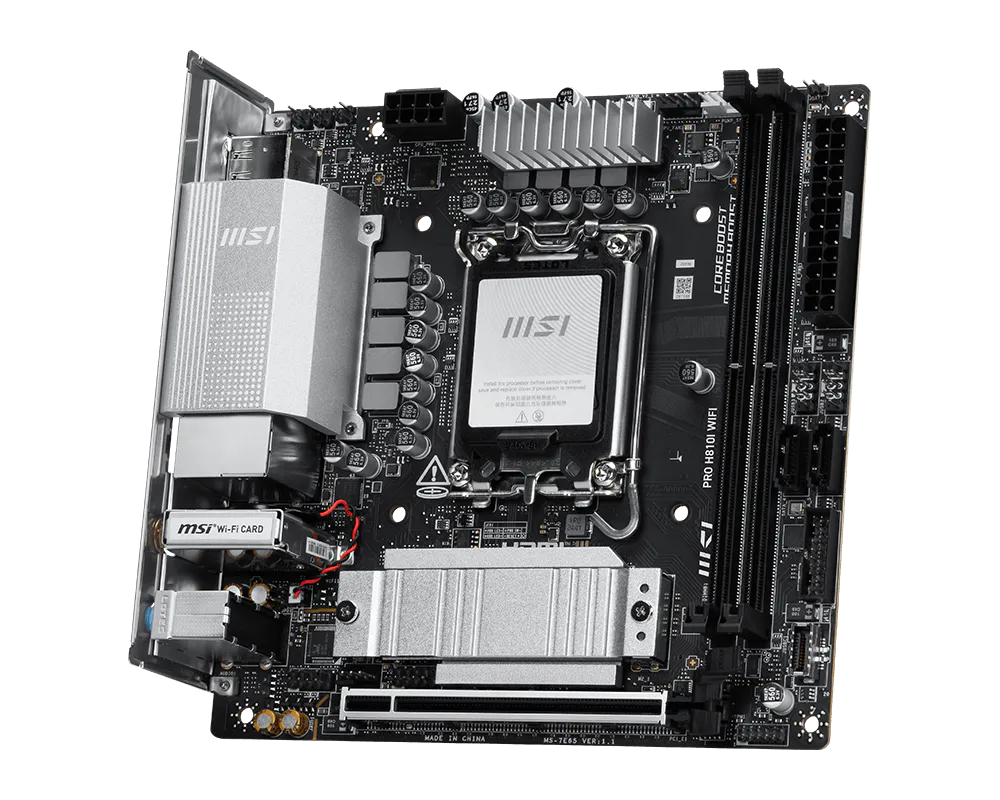

The MSI PRO H810I WIFI is a compact yet powerful Mini-ITX motherboard designed for small form factor (SFF) PCs without compromising on modern performance. Built on the Intel H810 chipset, it supports Intel Core Ultra (Series 2) processors and delivers essential next-gen features like DDR5 memory, PCIe 5.0 graphics support, and integrated wireless connectivity.
Key Features
🧠 Next-Gen Intel Platform
- Designed for Intel Core Ultra (Series 2) processors on the LGA 1851 socket, ensuring efficient and modern performance in a compact system.
💾 DDR5 Memory Support
- Supports dual-channel DDR5 memory up to 128GB, delivering faster speeds and improved system responsiveness for multitasking and gaming.
🎮 PCIe 5.0 Expansion
- Equipped with a PCIe 5.0 x16 slot, providing full bandwidth support for next-gen GPUs even in a Mini-ITX form factor.
🌐 Wireless + Wired Connectivity
- Built-in Wi-Fi (latest-gen depending on variant) and Bluetooth for wireless convenience
- 2.5G LAN ensures stable and fast wired networking for gaming, streaming, and productivity
⚡ Fast Storage Options
- Includes M.2 PCIe 4.0 x4 slot for high-speed NVMe SSDs
- Additional SATA support for expanding storage capacity
❄️ Efficient Thermal Design
- Optimized layout with heatsinks and smart fan control ensures stable temperatures in compact cases where airflow is limited
⚙️ Core Boost Power Design
- MSI Core Boost technology provides stable and precise power delivery for consistent CPU performance
🛠 EZ DIY Features
- Compact but user-friendly design with easy installation features, ideal for small form factor builders
- Clean layout for easier cable management in tight spaces
🔊 Audio Boost
- High-definition onboard audio with isolated circuitry for clear sound quality in media and gaming.
SPECIFICATIONS
| Chipset | INTEL H810 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
|
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 – 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel® POR Speed and JEDEC Speed |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* |
| Slot | 1x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
|
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio
|
| Storage | 1x M.2 (Qty) M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G (Qty) |
