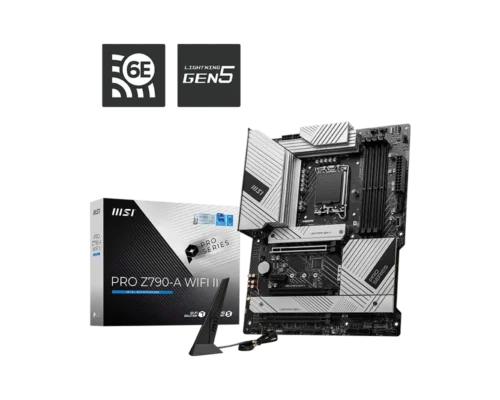

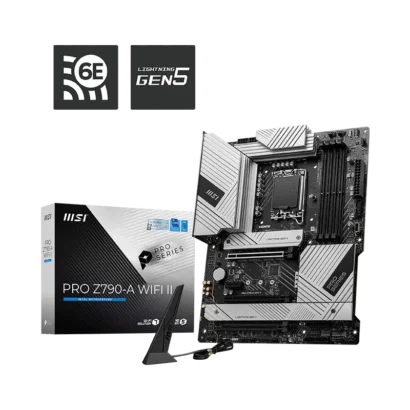

MSI PRO Z790-A WIFI II DDR5 ATX MOTHERBOARD
Original price was: ₹31,299.00.₹26,599.00Current price is: ₹26,599.00.
- Powerful Z790 Platform – Supports Intel Core 14th, 13th and 12th Gen processors with the LGA 1700 socket.
- High-Speed DDR5 Memory – Supports up to 256GB DDR5 and speeds up to 7800+ MT/s (OC).
- PCIe 5.0 Support – Provides high-bandwidth connectivity for next-generation graphics cards.
- Four M.2 Slots – Offers multiple high-speed NVMe storage options with PCIe 4.0 x4 support.
- Wi-Fi 6E Connectivity – Provides fast and reliable wireless networking across the 2.4GHz, 5GHz and 6GHz bands.
- 2.5G LAN – Delivers high-speed wired networking for gaming, streaming and large file transfers.
- Robust Power Delivery – The 16+1+1 power design with 80A SPS provides a stable foundation for high-performance processors.
- Advanced Thermal Design – Extended heatsinks, 7W/mK MOSFET thermal pads and M.2 Shield Frozr help maintain stable temperatures.
- High-Speed USB Connectivity – Includes USB 20Gbps Type-C for fast data transfers and modern peripherals.
- Premium Audio – Realtek ALC4080 provides high-quality 7.1-channel audio for gaming, entertainment and multimedia.
- Built for Reliability – A 6-layer PCB with 2oz thickened copper improves signal integrity and overall board durability.
MSI PRO Z790-A WIFI II DDR5 ATX MOTHERBOARD
The MSI PRO Z790-A WIFI II is a powerful ATX motherboard designed for Intel 14th, 13th and 12th Gen processors. Featuring DDR5 memory support, PCIe 5.0, Wi-Fi 6E, 2.5G LAN, four M.2 slots and a robust 16+1+1 power design, it offers an excellent combination of performance, connectivity and reliability for gaming, productivity and high-performance PC builds.
Key Features
- Intel Z790 chipset with LGA 1700 socket
- Supports Intel Core 14th/13th/12th Gen processors
- 4 × DDR5 DIMM slots supporting up to 256GB
- DDR5 speeds up to 7800+ MT/s (OC)
- 16+1+1 Duet Rail Power System with 80A SPS
- PCIe 5.0 x16 graphics slot
- 4 × M.2 slots with PCIe 4.0 support
- Wi-Fi 6E with up to 2.4Gbps wireless speed
- Intel 2.5G LAN
- USB 20Gbps Type-C connectivity
- Realtek ALC4080 7.1-channel audio
- Extended heatsink and M.2 Shield Frozr
- 6-layer PCB with 2oz thickened copper
- 4 × EZ Debug LEDs for easy troubleshooting
Specifications
| Specification | Details |
|---|---|
| Form Factor | ATX |
| Dimensions | 243.84 × 304.8 mm |
| CPU Socket | LGA 1700 |
| Chipset | Intel Z790 |
| CPU Support | Intel Core 14th / 13th / 12th Gen |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 UDIMM |
| Maximum Memory | Up to 256GB |
| Memory Speed | Up to DDR5-7800+ MT/s (OC) |
| PCIe Graphics Slot | PCIe 5.0 x16 |
| Additional PCIe Slots | PCIe 4.0 x4 + PCIe 3.0 x1 |
| M.2 Slots | 4 × M.2 |
| M.2 Interface | Up to PCIe 4.0 x4 |
| SATA | 6 × SATA 6Gb/s |
| Wireless | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| LAN | Intel 2.5Gbps LAN |
| Rear USB | USB 2.0, USB 5Gbps, USB 10Gbps, USB 20Gbps Type-C |
| Audio | Realtek ALC4080, 7.1-Channel USB High Performance Audio |
| Display Output | HDMI 2.1 + DisplayPort 1.4 |
| Power Design | 16+1+1 Duet Rail Power System, 80A SPS |
| PCB | 6-Layer PCB with 2oz Thickened Copper |
| Debug Feature | 4 × EZ Debug LED |
| Operating System | Windows 11 64-bit |
