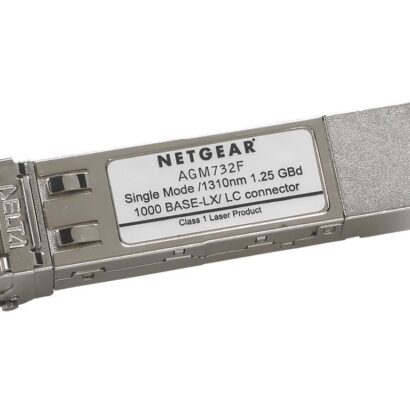

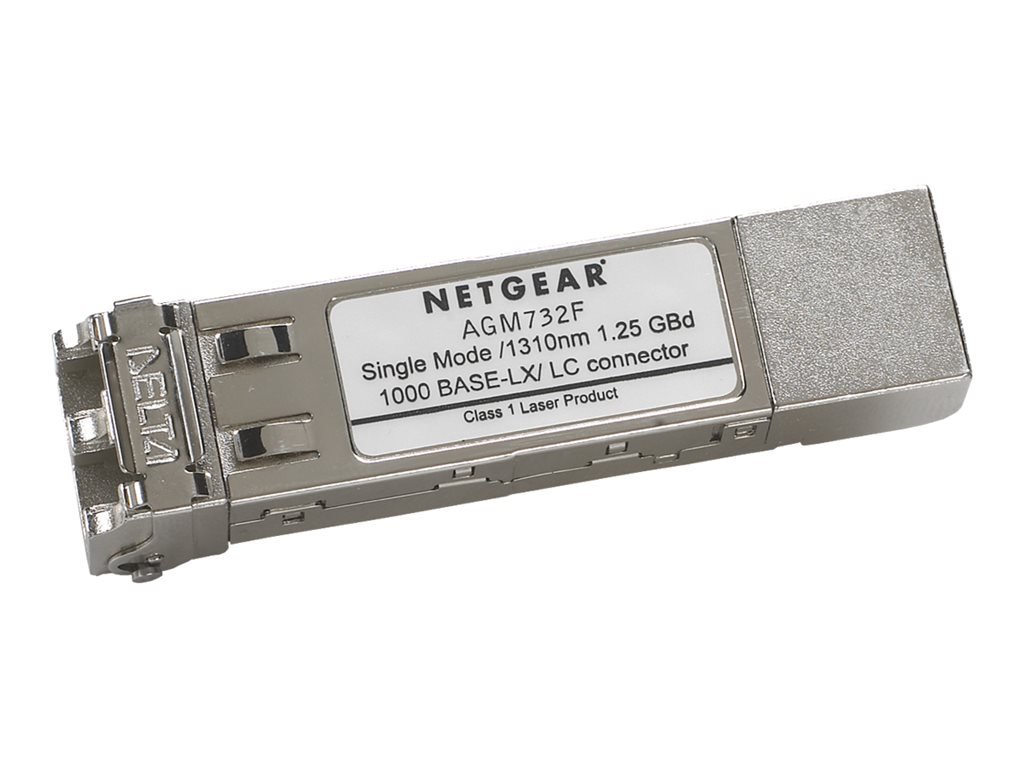

Netgear AGM732F SFP 1G Ethernet Fiber Module, up to 10km distance for Managed Switches
₹399,999.00
Netgear AGM732F 1G SFP fiber module, 1000Base-LX transceiver, Gigabit Ethernet SFP, single-mode fiber (SMF), 1310nm wavelength, up to 10km distance, LC duplex connector, hot-swappable SFP module, compatible with Netgear managed switches, long-range fiber networking solution.
Netgear AGM732F SFP 1G Ethernet Fiber Module, up to 10km distance for Managed Switches
Features
- Gigabit speed fiber networking – Provides 1 Gbit/s Ethernet over fiber optics for fast, reliable connections.
- Long-distance reach – Supports fiber links up to 10 km (6.2 miles) using single-mode fiber cable.
- LC duplex connector – Uses standard LC fiber connectors for easy installation.
- SFP form factor – Fits into standard SFP slots on managed and smart switches.
- Hot-pluggable – Can be inserted or removed without powering off the switch.
- Standard compliant – Works with SFP GBIC and IEEE 802.3z standards.
- Low power use – Efficient operation with typical 3.3 V power supply.
- Loss-of-Signal support – Provides signal status output to help monitor link health.
- Compatible with many switches – Works with fully managed and smart switch SFP ports.
Specification
| Model | AGM732F |
| Product Type | SFP 1G Ethernet Fiber Module |
| Form Factor | Small Form-factor Pluggable (SFP) |
| Standard | IEEE 802.3z / 1000BASE-LX |
| Data Rate | Up to ~1.25 Gbps (1 Gigabit Ethernet) |
| Wavelength | 1310 nm |
| Maximum Distance | Up to 10 km (with single-mode fiber) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmitter Type | FP (Fabry-Pérot) laser |
| Receiver Type | PIN photodiode |
| Power Consumption | ~0.6 W – 1.1 W |
| Operating Temperature | 0 °C to ~70 °C (commercial) |
| Hot-Swappable | Yes |
| DDM/DOM Support | Yes (Digital Diagnostic Monitoring) |
| Power Supply | +3.3 V |
| Compliance | SFP MSA, RoHS |
