Netgear AXM761 SFP+ Transceiver, 10GBase-SR for multimode 50/125µm OM3 or OM4 fiber
₹399,999.00
Netgear AXM761 10G SFP+ transceiver, 10GBASE-SR module, 10Gbps fiber optic SFP+, 850nm wavelength, multimode fiber 50/125µm OM3 OM4, up to 300m (OM3) / 550m (OM4), LC duplex connector, hot-swappable SFP+ module, compatible with Netgear 10G managed switches, high-speed data center and enterprise network solution.

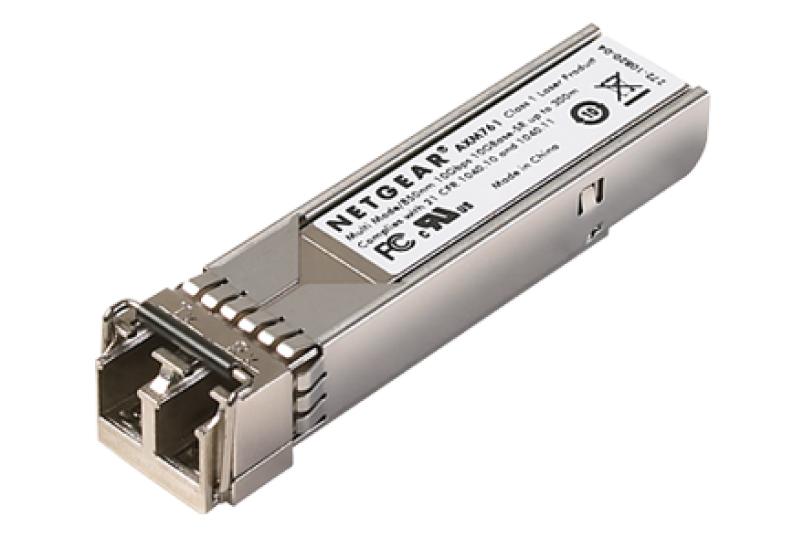

Netgear AXM761 SFP+ Transceiver, 10GBase-SR for multimode 50/125µm OM3 or OM4 fiber
Features
- 10 Gigabit Ethernet speed – Supports high-speed 10 Gb/s data transfer for fast networks.
- Short-Range Fiber (SR) – Designed for short-distance fiber optic links over multimode cables.
- Compatible with OM3/OM4 multimode fiber – Works with 50/125 µm fiber for reliable connections.
- LC duplex connector – Uses standard LC connectors for fiber cable connections.
- Distance support – Up to ~550 m on OM4, ~300 m on OM3, and ~33 m on OM1/OM2 multimode fibers.
- Hot-pluggable – Can be installed or removed without shutting down the switch.
- Fits SFP+ ports – Plugs into 10G SFP+ interfaces on managed, smart, and some plus switches.
- Reliable performance – Suitable for data centers, enterprise networks, and high-speed uplinks.
Specifications
| Model | AXM761 |
| Product Type | 10GBASE-SR SFP+ transceiver |
| Form Factor | SFP+ |
| Standard Compliance | IEEE 802.3ae 10GBASE-SR, SFF-8431, SFF-8432, SFF-8472, SFP+ MSA |
| Data Rate | Up to ~10.3125 Gbps |
| Wavelength | 850 nm |
| Maximum Distance | Up to 300 m on OM3 MMF; up to 550 m on OM4 MMF; ~33 m on OM1/OM2 |
| Fiber Type | Multimode fiber (OM1 / OM2 / OM3 / OM4) |
| Connector | LC duplex |
| Transmitter Type | VCSEL laser |
| Receiver Type | PIN photodiode |
| DDM/DOM Support | Yes (Digital Diagnostic Monitoring) |
| Power Consumption | < 1 W |
| Hot-Swappable | Yes |
| Operating Temperature | ~0 °C to 70 °C |
| Voltage | +3.3 V |
| RoHS Compliance | Yes |
