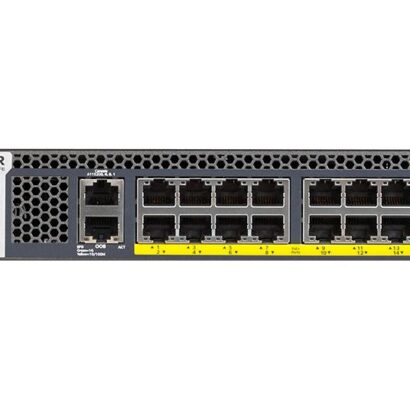

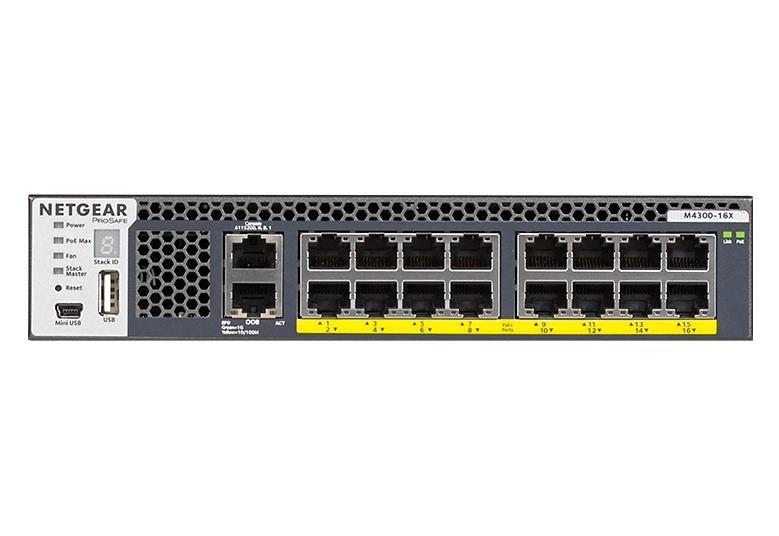

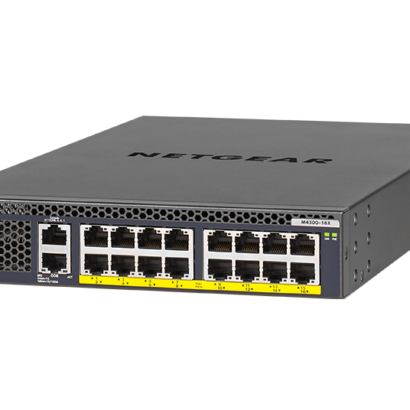

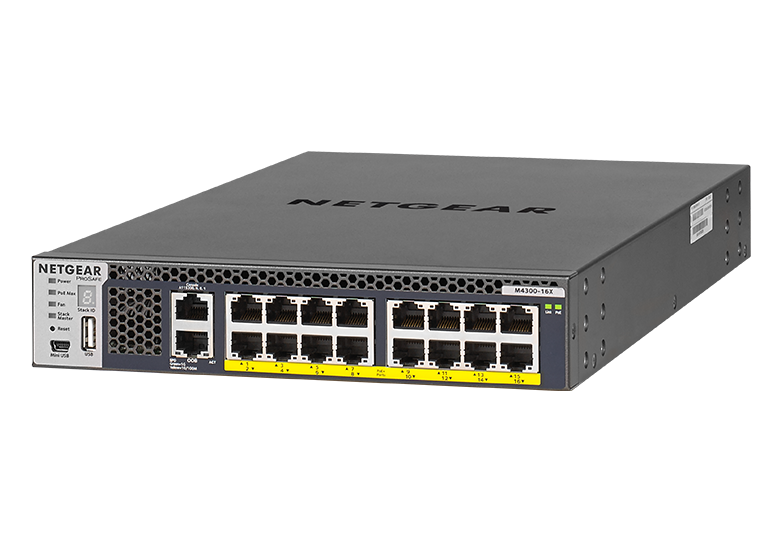

Netgear M4300-16X XSM4316PB Fully Managed switch
Original price was: ₹699,999.00.₹499,999.00Current price is: ₹499,999.00.
The Netgear M4300-16X XSM4316PB is a fully managed Layer 3 switch with 16 multi-gigabit PoE+ ports, delivering up to 320 Gbps switching capacity for high-performance networks. Ideal for enterprise, AV-over-IP, and stacked deployments, it supports advanced routing, VLANs, and robust security features.
Netgear M4300-16X XSM4316PB Fully Managed switch
Features
- 16 × Multi‑Gigabit RJ45 Ports: Supports 100 M/1G/2.5G/5G/10 G speeds with full PoE+ on all ports.
- PoE+ Power: Up to 30 W per port with a total 500 W PoE budget, powered by included 600 W PSU.
- Fully Managed Layer 3: Built‑in L2/L3/L4 routing features (static, RIP, OSPF, PIM, VRRP) with no extra license needed.
- Stackable with High Availability: Virtual chassis stacking with Non‑Stop Forwarding (NSF) and hitless failover for continuous operation.
- High Performance Fabric: 320 Gbps non‑blocking switching capacity with multi‑gigabit throughput for demanding networks.
- Advanced Security: Protects against threats with DHCP Snooping, IP Source Guard, DoS defense and IPv4/IPv6 security features.
- Multicast & AV‑Ready: Optimized for multicast (IGMP) and AV‑over‑IP (SDVoE‑ready) deployments without extra setup.
- Flexible Management Interfaces: Includes web GUI, CLI, SNMP, out‑of‑band 1G management port, console ports and USB support.
Specifications
| odel | XSM4316PB |
| Switch Type | Fully Managed Layer 3 Switch |
| Form Factor | 1U Rackmount (Half‑width) |
| Ports | 16 × Multi‑Gigabit RJ45 (100M/1G/2.5G/5G/10G) |
| PoE+ Support | 16 × PoE+ (802.3at) |
| Max PoE Power per Port | Up to 30 W |
| Total PoE Budget | 500 W (with included APS600W PSU) |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | ~357 Mpps |
| MAC Address Table | 16 K entries |
| VLAN Support | Up to 4 K VLANs |
| Routing Protocols | Static, RIP, OSPF, VRRP, PIM |
| Management Interfaces | Web GUI, CLI, SNMP, Out‑of‑band 1G Eth, RJ45 Console, Mini‑USB |
| Stacking & HA | Virtual chassis stacking with Non‑Stop Forwarding (NSF) |
| Multicast Features | IGMP v2/v3 + enhanced IGMP Plus |
| Noise Level | ~35 dB (front‑to‑back fans) |
| Dimensions (WxDxH) | 212 × 345 × 44 mm |
| Weight | ~3.2 kg (without PSU) |
