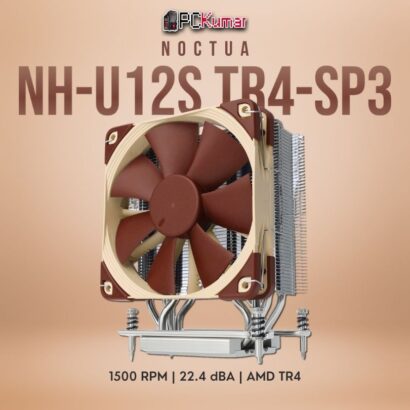

NOCTUA NH-U12S TR4-SP3 CPU COOLER — TR4 Cooler
Original price was: ₹11,999.00.₹8,499.00Current price is: ₹8,499.00.
Compatibility: AMD sTR4, SP3
Features: Slim, single-tower design with NF-F12 PWM fan, optimized for large CPUs like Threadripper and Epyc
Continuing the legacy of Noctua’s classic NH-U-series, which has received more than a thousand awards and recommendations from international hardware websites and magazines, the NH-U14S has become a benchmark for high-end 140mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’ssTRX4/sWRX8/TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2 mounting system for socket sTRX4/sWRX8/TR4/SP3. Topped off with the renowned quiet NF-A15 PWM 140mm fan and Noctua’s proven NT-H1 thermal compound, the NH-U14S TR4-SP3 forms a complete premium-quality solution that combines maximum performance and superb acoustics for enthusiast-grade sTRX4/sWRX8/TR4/SP3 systems.
|
|
|
|
|
|---|---|---|---|
120mm size for excellent performance and compatibilityWith five heatpipes and the powerful NF-F12 120mm fan, the NH-U12S achieves outstanding cooling performance while maintaining excellent compatibility: At 158mm height and 125mm width, it is short enough to fit most modern tower cases and stays clear of the top PCIe slot on most motherboards. |
SecuFirm2 mounting system for sTRX4/TR4/SP3Noctua’s SecuFirm2 mounting systems have become synonymous with quality, safety and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and you’re done! |
Offset mounting options for better PCIe clearanceIn order to assure optimal compatibility with SLI and CrossFire multi-GPU setups, the SecuFirm2 mounting for sTRX4/sWRX8/TR4/SP3 makes it possible to offset the cooler by 3 or 6mm towards the upper edge of the motherboard, thereby increasing clearance of the top PCIe slot. |
NF-F12 120mm Focused Flow fanRecommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua’s premium quality NF-F12 Focused Flow 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation. |
Measurements
Measurements
- Height (without fan): 158 mm
- Width (without fan): 125 mm
- Depth (without fan): 45 mm
- Height (with fan): 158 mm
- Width (with fan): 125 mm
- Depth (with fan): 71 mm
- Weight (without fan): 695 g
- Weight (with fan/s): 870 g
Materials
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler Specification
Socket compatibility
Please note that the NH-U12S TR4-SP3 is a dedicated version for the AMD sTRX4/sWRX8/TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
Scope of delivery
- NF-F12 PWM premium fan
- NA-RC6 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- SecuFirm2 sTRX4/TR4/SP3 mounting kit
- Anti-vibration pads and fan-clips for second NF-F12
- Noctua metal case-badge
Tailored custom version for sTRX4/TR4/SP3 (Ryzen Threadripper / Epyc)
Please note that the NH-U12S TR4-SP3 is a dedicated version for the AMD sTRX4/sWRX8/TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
