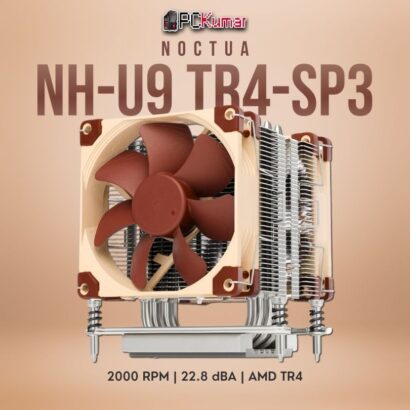

NOCTUA NH-U9 TR4-SP3 CPU COOLER — TR4 Cooler
Original price was: ₹17,799.00.₹7,299.00Current price is: ₹7,299.00.
Compatibility: AMD sTR4, SP3
Features: Compact design for AMD Threadripper/Epyc platforms, dual NF-A9 fans for efficient cooling in 4U server setups
Having received more than 300 awards and recommendations from international hardware websites and magazines, Noctua’s NH-U9 line has become a benchmark for compact 92mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s sTRX4/TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2 mounting system for socket sTRX4/TR4/SP3. Topped off with two of the renowned quiet NF-A9 PWM 92mm fans in a push/pull dual fan configuration and Noctua’s proven NT-H1 thermal compound, the NH-U9 TR4-SP3 forms a highly compact, premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for space-restricted sTRX4/TR4/SP3 systems.
|
|
|
|
|
|---|---|---|---|
Compact 92mm size for best compatibilityThanks to a total width of only 95mm, the NH-U9 TR4-SP3 provides 100% PCIe clearance and never overhangs the top PCIe x16 slot. At the same time, its height of only 125mm allows it to fit smaller cases and most 4U size rack-mount enclosures. |

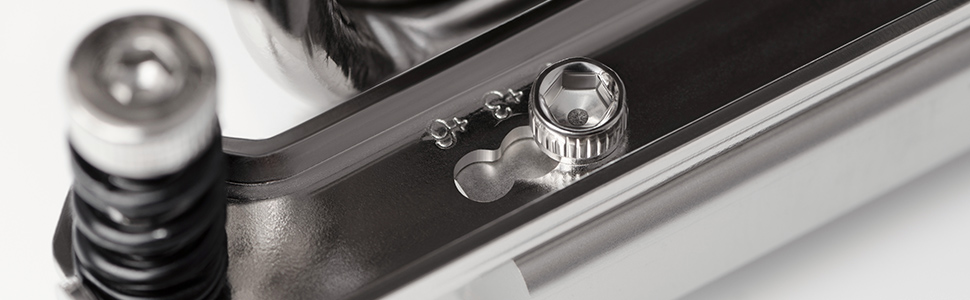

SecuFirm2 mounting system for sTRX4/TR4/SP3Noctua’s SecuFirm2 mounting systems have become synonymous with quality, safety and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and you’re done! |
Dual NF-A9 PWM fansThe NH-U9 TR4-SP3 is equipped with two of Noctua’s award-winning NF-A9 PWM 92mm fans. This push/pull dual fan configuration allows it to achieve a level of quiet cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S TR4-SP3. |
NT-H1 thermal compoundNoctua’s much-acclaimed NT-H1 is a well proven pro-grade TIM solution that provides minimum thermal resistance, excellent ease-of-use and outstanding reliability, which makes it suitable for use in professional server and workstation environments. |
Cooler Specification
Socket compatibility
This cooler is only compatible with AMD sTRX4/TR4/SP3, and cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
Scope of delivery
- 2x NF-A9 PWM premium fan
- 2x NA-RC7 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NT-H1 high-grade thermal compound
- SecuFirm2 sTRX4/TR4/SP3 mounting kit
- Noctua Metal Case-Badge

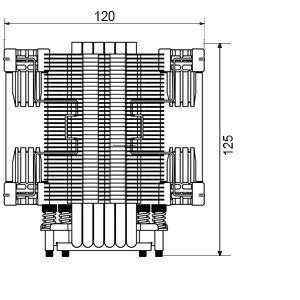

Measurements
- Height (without fan): 125 mm
- Width (without fan): 95 mm
- Depth (without fan): 71 mm
- Height (with fan): 125 mm
- Width (with fan): 95 mm
- Depth (with fan): 120 mm
- Weight (without fan): 660 g
- Weight (with fan/s): 895 g
Tailored custom version for sTRX4/TR4/SP3 (Ryzen Threadripper / Epyc)
Please note that the NH-U9 TR4-SP3 is a dedicated version for the AMD sTRX4/TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
