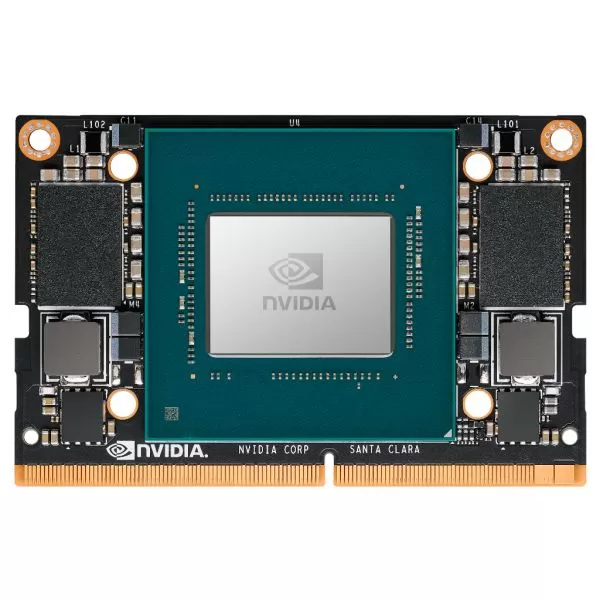

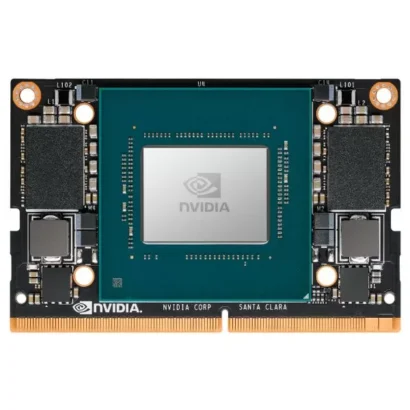

NVIDIA Jetson Xavier NX 16GB Module
Original price was: ₹219,999.00.₹109,999.00Current price is: ₹109,999.00.
The NVIDIA Jetson Xavier NX 16GB Module is a compact embedded AI System-on-Module delivering up to 21 TOPS of AI performance. Equipped with a 384-core NVIDIA Volta GPU, 48 Tensor Cores, 6-core NVIDIA Carmel CPU, 16GB LPDDR4x memory, and 16GB eMMC storage, it supports NVIDIA JetPack SDK, CUDA, TensorRT, DeepStream, and Isaac SDK. It is an ideal platform for robotics, machine vision, industrial automation, AI video analytics, and intelligent edge computing.
Available on backorder
NVIDIA Jetson Xavier NX 16GB Module
Features
- Delivers up to 21 TOPS AI performance.
- 384 NVIDIA CUDA Cores with 48 Tensor Cores based on NVIDIA Volta architecture.
- 6-Core NVIDIA Carmel Arm v8.2 CPU.
- 16GB LPDDR4x memory with 59.7 GB/s bandwidth.
- 16GB eMMC 5.1 onboard storage.
- Supports 2× NVDLA deep learning accelerators and 2× PVA vision accelerators.
- Supports up to 6 MIPI CSI-2 cameras.
- High-speed interfaces including PCIe Gen4, USB 3.1, Gigabit Ethernet, and multiple display outputs.
- Compact 69.6 × 45 mm SO-DIMM module compatible with Xavier NX ecosystem.
- Supports JetPack SDK, CUDA, TensorRT, DeepStream, Isaac SDK, TensorFlow, and PyTorch.
Specifications
| Product Name | NVIDIA Jetson Xavier NX 16GB Module |
| Brand | NVIDIA |
| Product Type | Embedded AI System-on-Module (SoM) |
| GPU Architecture | NVIDIA Volta |
| GPU | 384 NVIDIA CUDA Cores |
| Tensor Cores | 48 Tensor Cores |
| CPU | 6-Core NVIDIA Carmel Arm v8.2 64-bit CPU |
| CPU Frequency | Up to 1.9 GHz |
| AI Performance | Up to 21 TOPS (INT8) |
| DL Accelerator | 2× NVDLA Engines |
| Vision Accelerator | 2× Programmable Vision Accelerators (PVA) |
| Memory | 16GB 128-bit LPDDR4x |
| Memory Bandwidth | 59.7 GB/s |
| Onboard Storage | 16GB eMMC 5.1 |
| PCIe | 1 × PCIe Gen4 x4 + 1 × PCIe Gen3 x1 |
| USB | USB 3.1 Gen2 Support |
| Camera Support | Up to 6 Cameras (24 Virtual Channels) |
| Camera Interface | 14 MIPI CSI-2 Lanes (D-PHY 1.2) |
| Display Support | 2 × DisplayPort 1.4 / eDP 1.4 / HDMI 2.0 |
| Networking | 10/100/1000 Gigabit Ethernet (Carrier Board Dependent) |
| Video Encode | Up to 2 × 4K60, 4 × 4K30, 10 × 1080p60, 22 × 1080p30 (H.265/H.264) |
| Video Decode | Up to 2 × 8K30, 6 × 4K60, 12 × 4K30, 22 × 1080p60, 44 × 1080p30 (H.265); H.264 supported |
| Power Modes | 10W, 15W, 20W |
| Module Size | 69.6 × 45 mm (260-pin SO-DIMM) |
| Operating System | NVIDIA JetPack SDK (Ubuntu Linux) |
| AI Frameworks | CUDA, TensorRT, cuDNN, DeepStream, Isaac SDK, OpenCV, PyTorch, TensorFlow |
| Target Applications | Robotics, AI Vision, Smart Cameras, Industrial Automation, Medical Devices, Edge AI, Autonomous Machines |
