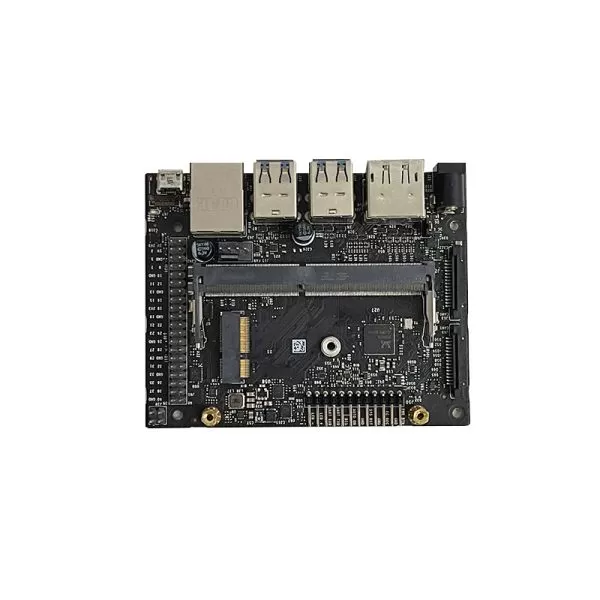

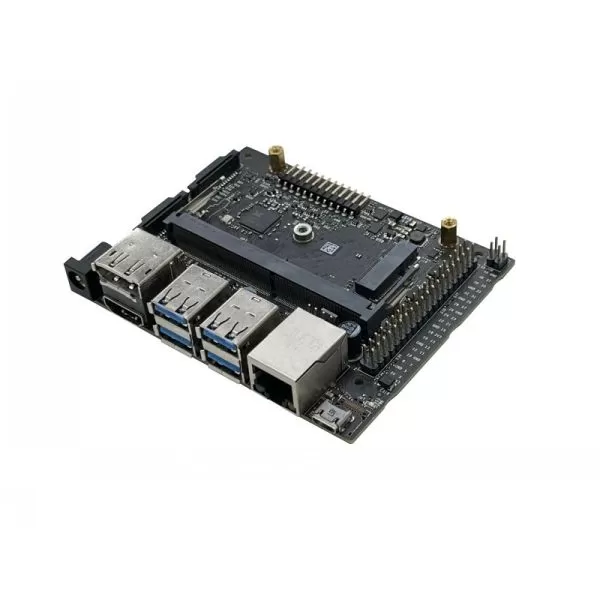

Leetop A206 Carrier Board
Original price was: ₹25,999.00.₹16,999.00Current price is: ₹16,999.00.
The Leetop A206 Carrier Board is a professional embedded AI carrier board designed for NVIDIA Jetson Xavier NX, Jetson TX2 NX, and Jetson Nano Production Module, with newer revisions supporting Jetson Orin NX. It features HDMI, DisplayPort, 4 × USB 3.0, Gigabit Ethernet, M.2 NVMe SSD, M.2 Wi-Fi/Bluetooth expansion, dual MIPI CSI-2 camera interfaces, CAN Bus, and industrial GPIO, making it ideal for robotics, AI vision, machine learning, industrial automation, and edge AI deployments.
Available on backorder
Leetop A206 Carrier Board
Features
- Supports Jetson Xavier NX, Jetson Xavier NX 16GB, Jetson TX2 NX, and Jetson Nano Production Module.
- Newer board revisions support Jetson Orin NX.
- HDMI 2.0 and DisplayPort dual display outputs.
- 4 × USB 3.0 ports for high-speed peripherals.
- Gigabit Ethernet for industrial networking.
- M.2 Key M slot supporting high-speed NVMe SSD storage.
- M.2 Key E slot for Wi-Fi and Bluetooth modules.
- 2 × MIPI CSI-2 camera connectors for AI vision.
- Industrial interfaces including CAN Bus, GPIO, UART, SPI, I²C, and I²S.
- Three dedicated fan headers for active cooling.
- Wide 9V–19V DC power input.
- Designed with industrial-grade ESD protection and vibration resistance.
Specifications
| Product Name | Leetop A206 Carrier Board |
| Brand | Leetop |
| Product Type | Embedded AI Carrier Board |
| Compatible Modules | NVIDIA Jetson Xavier NX, Jetson Xavier NX 16GB, Jetson TX2 NX, Jetson Nano (Production Module), newer hardware revisions also support Jetson Orin NX |
| Module Connector | 260-pin SO-DIMM |
| AI Performance | Supports installed Jetson module (up to 21 TOPS INT8 with Xavier NX; higher with supported Orin NX modules) |
| Display Output | 1 × HDMI 2.0, 1 × DisplayPort (DP) |
| Ethernet | 1 × Gigabit Ethernet (10/100/1000 Mbps) |
| USB Ports | 4 × USB 3.0 Type-A, 1 × Micro USB 2.0 (OTG/Recovery) |
| Storage Expansion | 1 × M.2 Key M (NVMe SSD) |
| Wireless Expansion | 1 × M.2 Key E (Wi-Fi / Bluetooth) |
| Camera Support | 2 × MIPI CSI-2 Camera Connectors |
| CAN Bus | 1 × CAN Interface |
| Expansion Interfaces | GPIO, UART, SPI, I²C, I²S |
| Cooling Support | 2 × Fan Headers (12V/5V), 1 × PWM Fan Header (5V) |
| Power Input | 9V–19V DC @ 3A |
| Industrial Features | Anti-static (ESD) protection, vibration-resistant design |
| Operating System | NVIDIA JetPack SDK (Module dependent) |
| Dimensions | Compact Embedded Carrier Board |
| Applications | Robotics, AI Vision, Machine Vision, Industrial Automation, Edge AI, Smart Surveillance |
