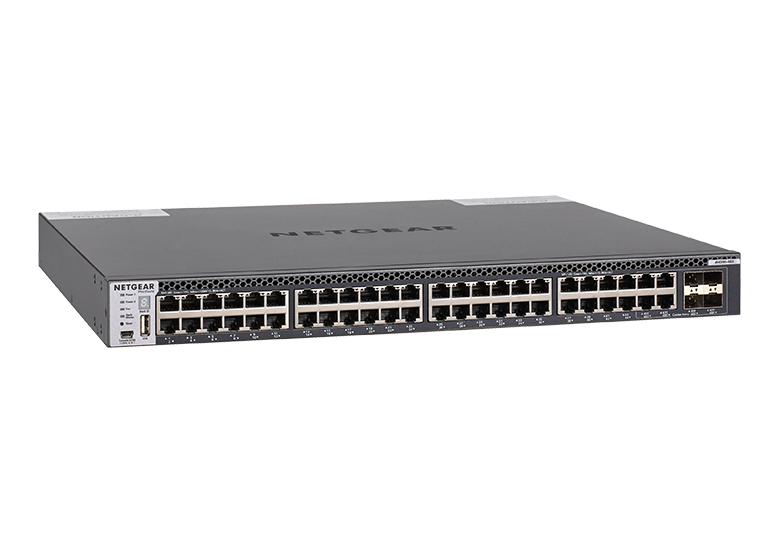

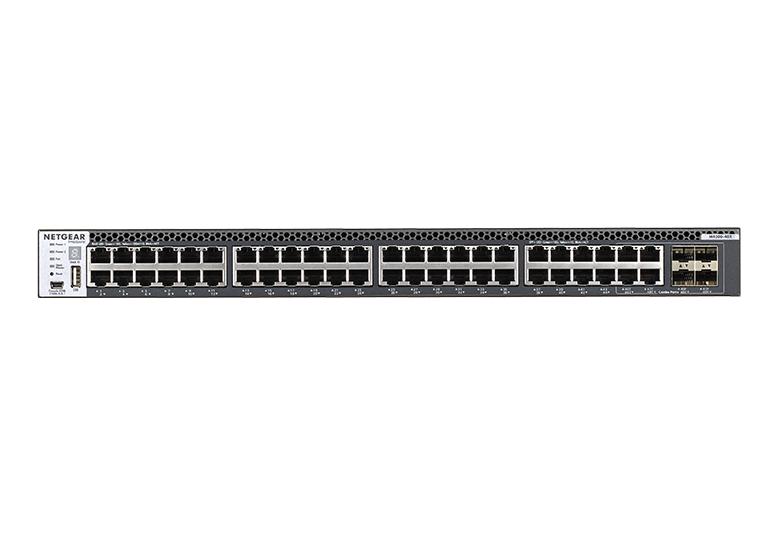

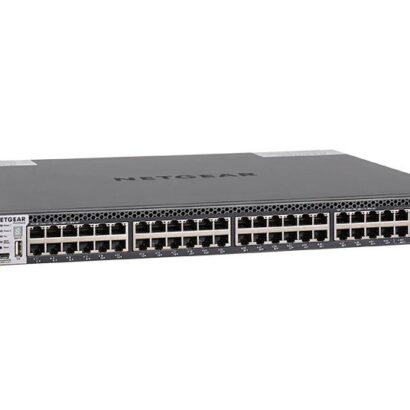

Netgear M4300-48X XSM4348CS Fully Managed switch
Original price was: ₹1,499,999.00.₹1,199,999.00Current price is: ₹1,199,999.00.
The Netgear M4300-48X (XSM4348CS) is a fully managed Layer 3 switch with 48× 10GBASE‑T ports and 4× shared 10G SFP+ uplinks for high-speed enterprise networking.
It delivers 960 Gbps non-blocking performance with advanced L2/L3/L4 features, VLANs, QoS, and stackable virtual chassis for scalable, resilient networks.
Designed as a full-width 1U rack switch, it supports AV-over-IP, IGMP Snooping, and enterprise-grade security for mission-critical deployments.
Netgear M4300-48X XSM4348CS Fully Managed switch
Features
- 48× 10GBASE‑T High‑Speed Ports – Provides 48× 10 GbE copper RJ45 ports with flexible 100 M/1G/10G support for enterprise networking.
- 4× Shared 10G SFP+ Uplinks – Adds 4× shared 10 G SFP+ fiber uplinks for scalable uplink connectivity.
- Fully Managed L2/L3/L4 Capabilities – Advanced switching, routing, VLAN, ACLs, QoS, and policy‑based traffic control without extra licensing.
- High Availability & Resiliency – Supports non‑stop forwarding (NSF) virtual chassis stacking with hitless failover and distributed link aggregation.
- Enhanced Security Features – Includes malicious code detection, DHCP Snooping, IP Source Guard, and DoS attack mitigation.
- Scalable Stacking Architecture – Mix‑and‑match stacking with other M4300 switches (1G, 10G, 40G) managed as one logical unit.
- Ready for AV‑over‑IP – Pre‑configured IGMP Snooping, NETGEAR IGMP Plus™, and SDVoE multicast support for AV and media networks.
- Business Continuity Support – Dual modular PSU support (select models) and PVST+/PVRSTP interoperability for network uptime.
Specifications
| Model | XSM4348CS (M4300‑48X) |
| Switch Type | Fully Managed Layer 2 / Layer 3 / Layer 4 (license‑free) |
| 10GBASE‑T Ports | 48 × 10GBASE‑T RJ45 (100M / 1G / 10G) |
| Shared SFP+ Ports | 4 × Shared 10G SFP+ (1G/10G) |
| Switching Fabric | 960 Gbps non‑blocking |
| Forwarding Throughput | Up to ~714 Mpps |
| MAC / ARP / Routing Tables | 128K MAC, 8K ARP/NDP |
| Layer 3 Routing | Static, RIP, OSPF, VRRP, PIM (policy‑based) |
| VLAN Support | Up to 4093 VLANs with DHCP pools |
| Multicast Support | IP Multicast: 1,024 IPv4 / 512 IPv6, 2K IGMP Groups |
| Management Interfaces | Web GUI, CLI (SSH/Telnet), SNMP, RMON, NMS300 support |
| Management Ports | 1 × Out‑of‑band 1G Ethernet, RJ45 console, Mini‑USB console, USB storage |
| Stacking Features | Virtual chassis stacking with nonstop forwarding (NSF) and hitless failover |
| Latency | ~2.41 µs (10G RJ45), ~1.51 µs (10G SFP+) |
| Power Supply | 2 Modular Bays; 1 × APS250W PSU included |
| Cooling / Noise Level | Fixed fans (Front‑to‑back), ~40 dB |
| Form Factor | Full‑width 1U rack mount |
| Security Features | DHCP Snooping, IP Source Guard, malicious code detection, DoS protection |
| AV‑Over‑IP Ready | IGMP Snooping, SDVoE multicast support |
